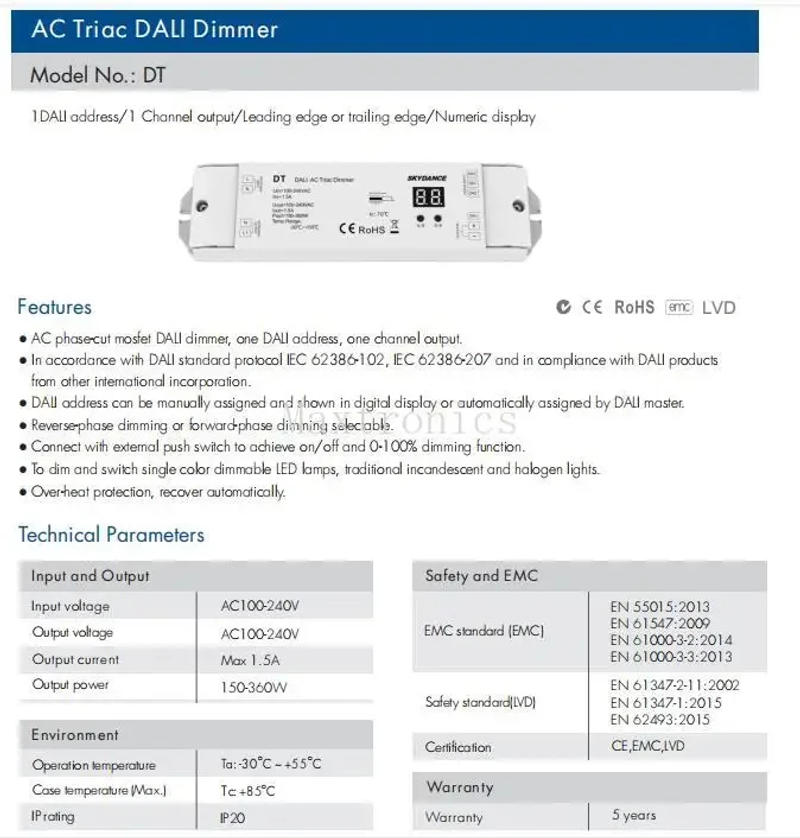

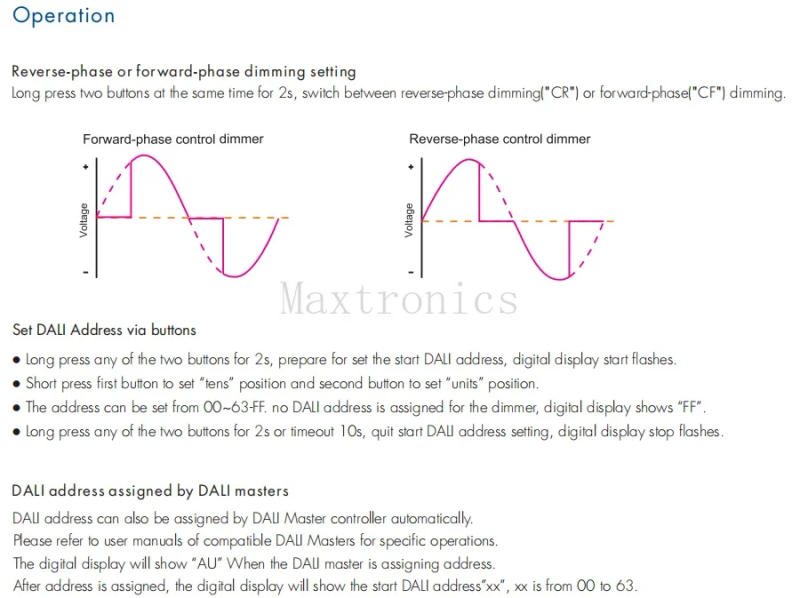

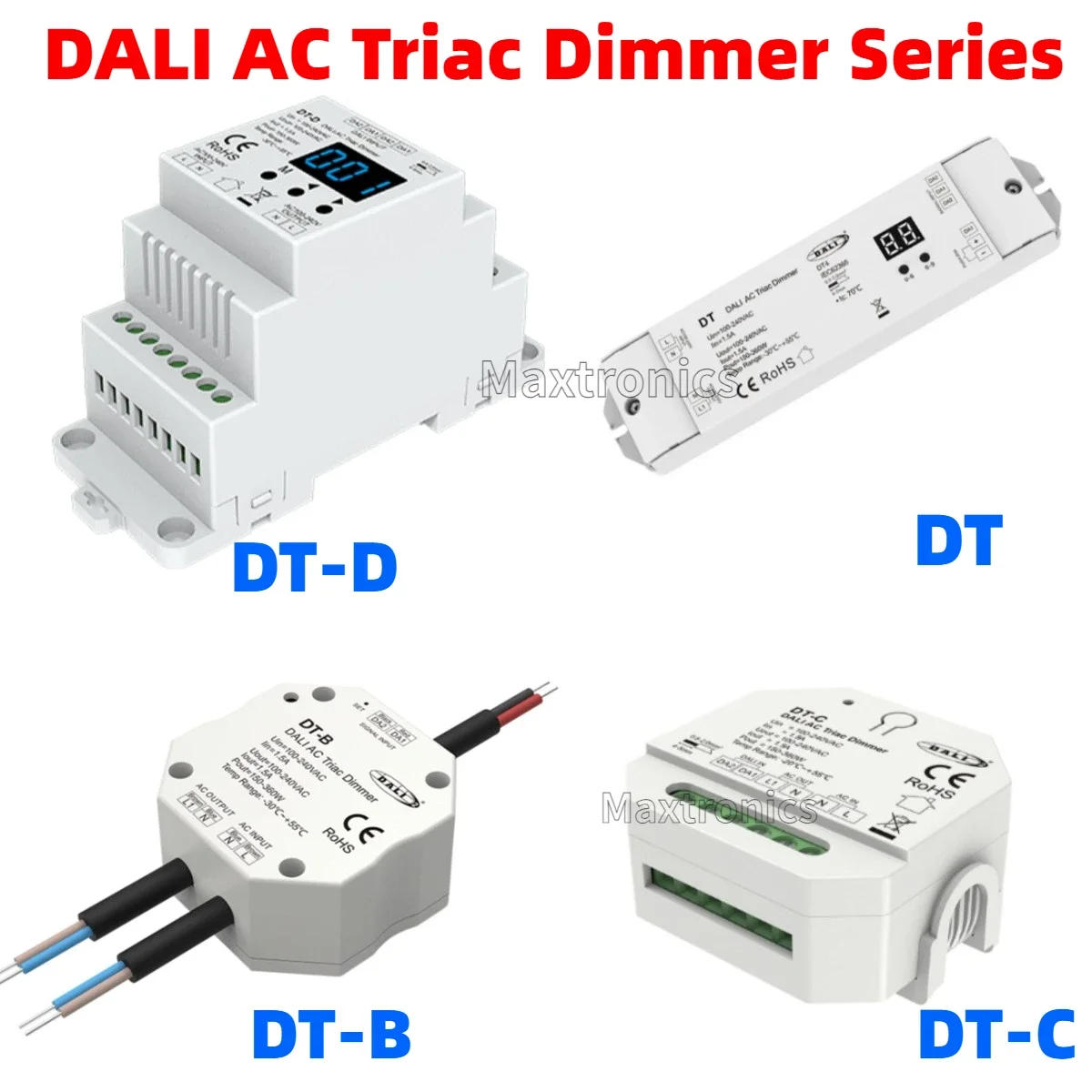

• AC100-240V DALI AC Triac Dimmer Series DT/DT-B/DT-C/DT-D 1CH*1 for Single Color Dimmable LED Light Incandescent Lamps Switch DT ● AC phase-cut DALI dimmer, one DALI address, one channel output. ● In accordance with DALI usual protocol IEC 62386-102, IEC 62386-205 and in compliance with DALI merchandise from different international incorporation. ● DALI handle would be manually assigned and shown in electronic exhibit or automatically assigned by way of technique of DALI master. ● Reverse-phase dimming or forward-phase dimming selectable. ● Connect with external push exchange to realize on/off and 0-100% dimming function. ● To dim and turn single colour dimmable LED lamps, usual incandescent and halogen lights. ● Over-heat protection, recover automatically. DT-B ● AC phase-cut mosfet DALI dimmer, one DALI address, one channel output. ● Trailing edge dimmer. ● The minimal brightness is adjustable. ● DALI-2 certified, in response to DALI steady protocol 101, 102, 205 (IEC 62386) and in compliance with DALI item from diverse international incorporation. ● DALI deal with can be automatically assigned by way of DALI master. ● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights. ● Over-heat protection, Overload protection, get well automatically. DT-C ● AC phase-cut mosfet DALI dimmer, one DALI address, one channel output. ● Trailing edge dimmer. ● The minimum brightness is adjustable. ● DALI-2 certified, according to DALI normal protocol 101, 102, 205 (IEC 62386) and in compliance with DALI merchandise from different foreign incorporation. ● DALI deal with could be automatically assigned via DALI master. ● Connect with outdoors push substitute to achieve on/off and 0-100% dimming function. ● To dim and turn unmarried shade dimmable LED lamps, regular incandescent and halogen lights. ● Over-heat protection, Overload protection, recuperate automatically. DT-D ● AC phase-cut DALI dimmer, one DALI address, one channel output. ● In accordance with DALI regular protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI merchandise from different international incorporation. ● Numeric display, set DALI address, dimming mode, dimming curve, minimal brightness by way of button. ● DALI handle can be manually assigned and proven in electronic show or mechanically assigned via DALI master. ● Reverse-phase dimming or forward-phase dimming selectable. ● Linear dimming or logarithmic dimming selectable. ● Connect with external push exchange to realize on/off and 0-100% dimming function. ● To dim and switch single colour dimmable LED lamps,traditional incandescent and halogen lights. ● Over-heat protection, get well automatically. DT: DT-B: DT-C: DT-D:

•
•
•
•
•
