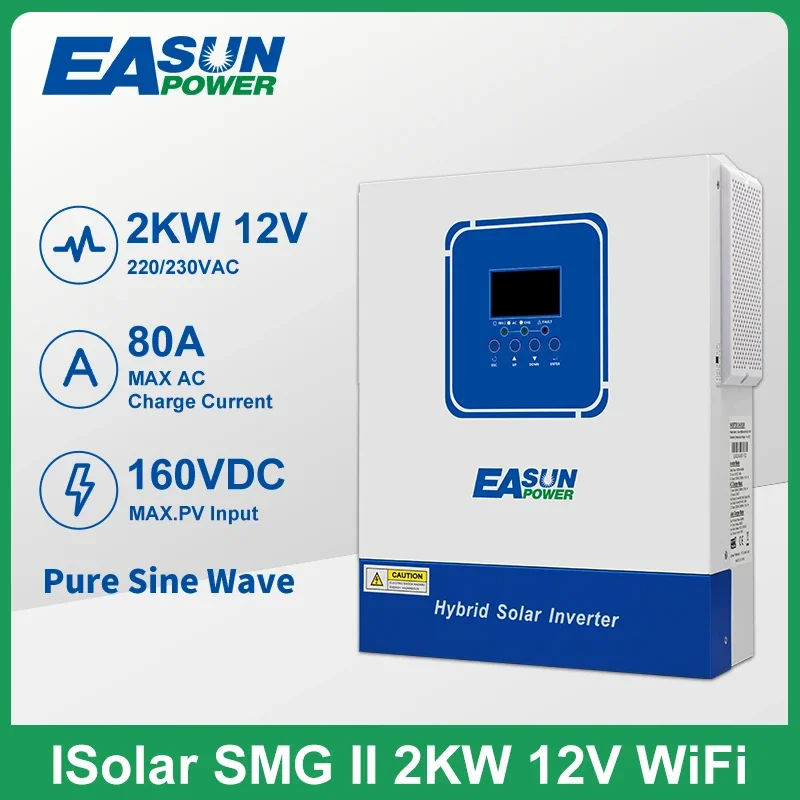

• Tips1：Brazil makes use of Buydo Standard Shipping and DDP channels to clear customs on behalf of buyers! Tips2：Ukraine makes use of the Cainiao Heavy Parcel Line, which takes about 30 days to arrive, and distant international locations take about 50 days to arrive! Tips3 : How to avoid VAT for EU nation clients You can position orders from China to circumvent VAT ,if we've items in stock in EU warehouse more than a hundred and fifty euros, we are able to deliver the goods from the EU warehouse for you，On the order page, one can find the value after VAT is diminished for you Easun Power Solar Hybrid Inverter 12V AC 220V 2000VA 1500W Pure Sine Wave Inverter Build in 120A MPPT Charger Max PV 160V WIFI Features: MODEL ISolar-SMG-1I-2KW-1 2V WiFi Capacity 1/1 Parallel Capability NO Lithium Battery activation YES ( By PV only) Lithium Battery communication YES(RS485) INPUT Nominal Voltage 230VAC Acceptable Voltage Range 170-280VAC(For own Computer);:90-280vac(For Home Appliances) Frequency 50/60 Hz(Auto sensing) OUTPUT Nominal Voltage 220/230VAC5% Surge Power 3000VA Frequency 50/60Hz Waveform Pure Sine wave Transfer Time 10ms(For personal Computer);20ms(For Home Appliances) Peak Efficiency(PV to INV) 96% Peak Efficiency(Battery to INV) 93% Overload Protection 5s@ > = 140% load; 10s@100%~ 140% load Crest Factor 3:1 Admissible Power Factor 0~1 (inductive or capacitive) BATTERY Battery Voltage 12V Floating Charge Voltage 13 OverCharge Protection 14 Charging Method CC/ CV SOLAR CHARGER & AC CHARGER Solar Charger Type MPPT Max Array Power 900W Max Array Open Circuit Voltage 160VDC PV Array MPPT Voltage Range 30VDC~160VDC Max Input Current 50A Max Charge Current 60A Max Charge Current 80A Max Current (PV+AC) 120A PHYSICAL Dimensions,D x W x H(mm) 358x295x105 Package Dimensions,D x W x H(mm) 465x380x1 seventy five Net Weight(Kg) 6 Communication Interface RS232 + RS485 ENVIRON MENT Operating Temperature Range (-10°C to 50°C) Storage Temperature (-15°C ~ 50°C) Humidity 5% to 95% Relative Humidity ( Non-condensing )

•
•
•
•
•
