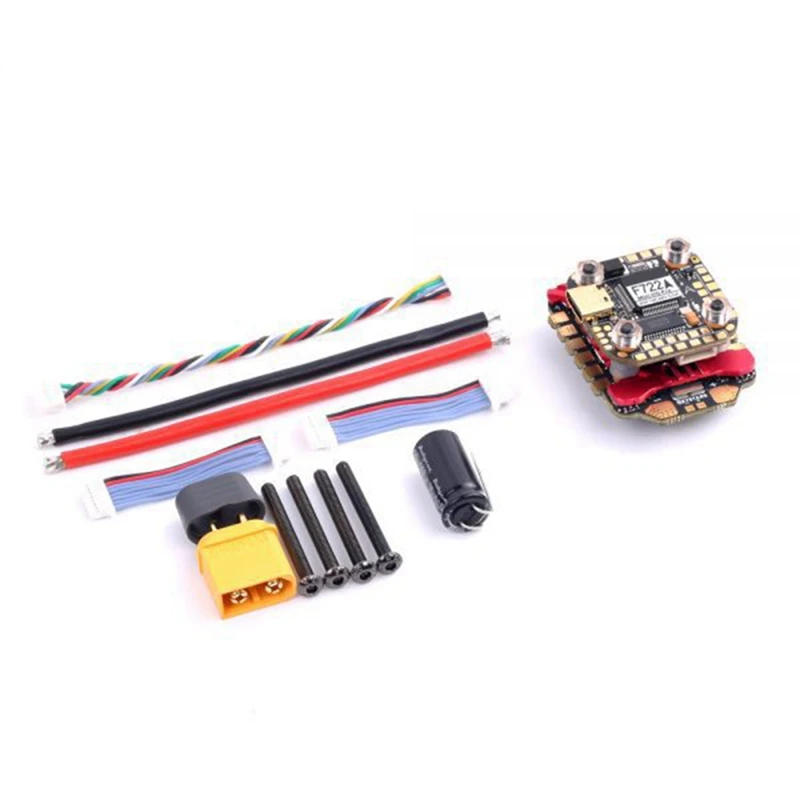

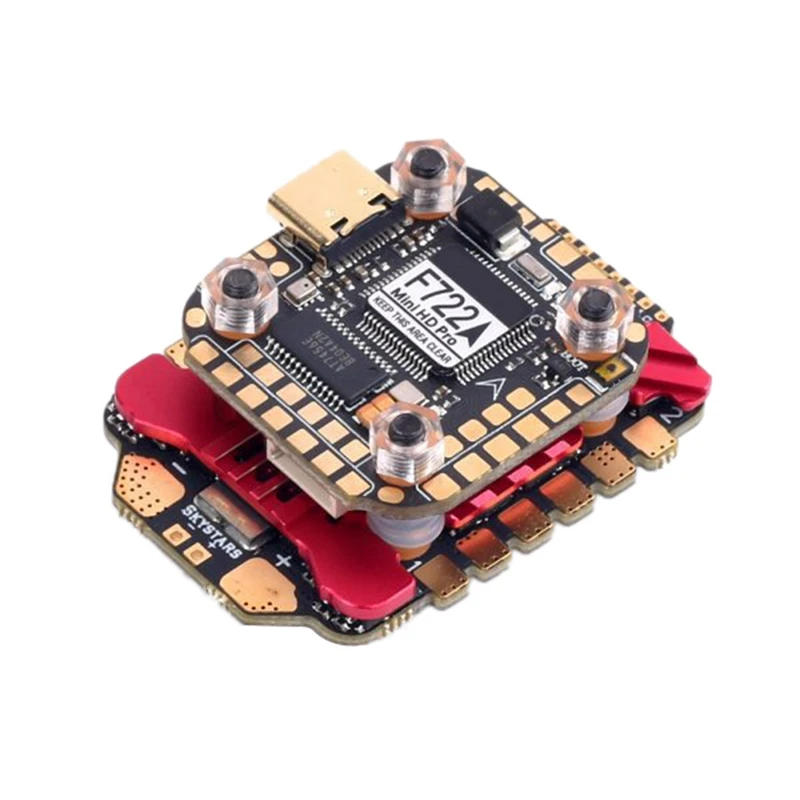

• F722 Mini Stack Flight Controller AM32 55A 4IN1 ESC 20X20 3-6S Built-In OSD For FPV Freestyle Drones Parts Designed the LED set up role within the 4 corners,sup port WS2812 Programable LED Supports serial receivers (SBUS, iBus, , Crossfire) Support three Satellite Receiver High-performance / low-noise / excessive sensitivity IMU BMI with 6-axis gyro and accelerometer Support join DJI HD air module Input voltage 12V-26V (3-6S) TVS protect,automatic voltage tracking F722FC MCU: STM32F722RGT6 216MHz IMU: BMI270 (SPI) OSD: Betaflight OSD & DJI HD OSD (UART6) 6 hardware UARTS (UART1, 2, 3, 4, 5, 6) 5V 2A & 10V 2A Input Voltage: 3-6S Lipo Blackbox: 16MB Barometer: YES Firmware: SKYSTARS F7HD Mounting Holes:Standard 20mm/M3 square to center of holes 55A 4-IN-1 ESC voltage: 3-6S LiPo Con Current: 55A Peak Current:70A greater than equivalent 10S Firmware:AM 32 Support:Dshot 600 Mounting hole:20x20 mm/M3 BEC:No The product look and published phrases may range counting on the batch, but this would not influence use Colour:As Shown Material:PCB Package Contents: 1 * F722 Mini Stack Flight Controller equipment Only the above equipment content, different products will not be integrated Note: Light reflection and diverse displays could cause the colour of the object in the photograph a little bit different from the real thing The dimension allowed error is +/- 1-3cm About Us We give you the nice product with the finest price,we assist Wholesale/Drop Shipping Order 1 For Drop Shipping order, please remark"dropshipping order", we will prioritize it 2 For Wholesale/Drop Shipping orders, if you have any strategies concerning the payment or package,please touch us in advance,we will provide the supreme service to fulfill your calls for About Payment If you meet any concern when making the payment, please contact Buydo Customer Service Center to ask for help: About Shipments 1 will ship out the orders ASAP inside 2-5 days(except weekends and nationwide holidays) once your price is done normally 2 write the complete delivery handle with correct cellphone number and zip code, especially Russia and Belarus buyers, please confirm your complete name three observe that we will not answerable for customs tasks do the customs clearance on your own four provide both submit delivery and explicit shippings most countries, submit shipping takes about 25-35 enterprise days, and longer for some nations like Brazil, Peru Express shipping inlcude DHL, EMS, Buydo Premium Shipping and Special Lines like Aramex It takes about 7 days(It will put off if your country meet some problem,Worker strike,weather difficulty and so on) About After-sale Service We are reliable seller and we've our legitimate after-sale provider for all of our customs If there may be any query in regards to the order,please touch us in advance ,we will consistently here till you get a cheerful reply About Feedback 1 Please check the equipment and item once you get intently to make certain there's no situation 2 If you have any concern or are now not completely convinced together with your package,please don’t be hesitate to contact us first earlier than leaving damaging feedback We will clear up the subject to satisfy you three If there isn't any problem, please leave us 5 star positive feedback

•
•
•
•
•
