说明

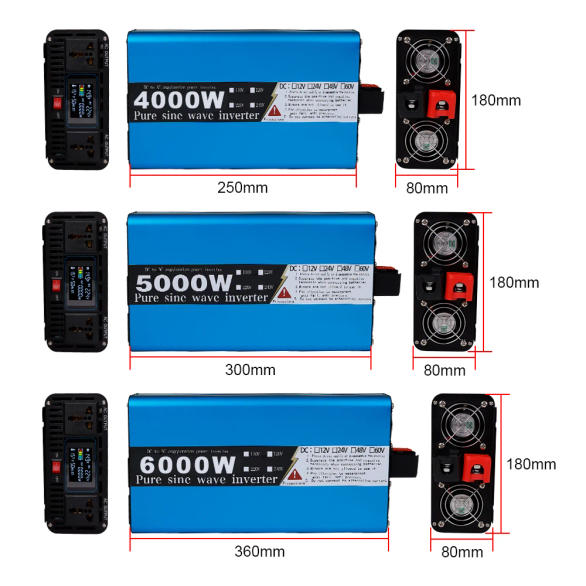

• Model 4000W 5000W 6000W Rated Power 2000W 2500W 3000W Input Voltage(DC) 12V 24V 12V 24V 12V 24V Output Voltage（AC） 220V±0% Frequency 50Hz/60Hz Conversion Efficiency ≥94% Output Waveform Pure Sine Wave High Voltage Protection 15±0 32±0 15±0 32±0 15±0 32±0 Low Voltage Protection 10±0 19±0 10±0 19±0 10±0 19±0 Over Temperature Protection 85° Fan Starts ≥45° Fan Stopped ≤40° Dimensions 250*180*80mm 300*180*80mm 360*180*80mm Net Weight 2 3KG three Operating Ambient Temperature -20°—60° Product Size LCD No-load Current ≤0 Shell Material Magnesium aluminum alloy 1: The 12V inverter can solely be linked to 12V batteries; the 24V inverter can solely be linked to 24V batteries This inverter is off-grid, please do not join the inverter to the house grid Manufacturer's own test: 2000W inverter can be used with 2000W induction cooker, 2500W inverter can be utilized with 2500W induction cooker, 3000W inverter can be used with 3000W induction cooker, please adapt the home equipment through yourself(The beginning latest of the induction cooker is set 10 occasions the operating current) In order to ensure the long-term steadiness of the inverter, please do not operate it at complete load Generally, it is most fitted to operate within 80%-90% of the rated energy Please pay attention to water-resistant 2: Real-time monitoring: Color LCD screen monitors enter voltage, output voltage, battery power, output power, temperature protection, and output frequency in genuine time Pure sine wave inverter: The output of pure sine wave inverter is precisely similar to the traditional grid output It has a wide range of applications, high overload capacity, supreme stability, and give the same AC latest as a standard family Conversion performance and no-load current: The conversion performance of this inverter is greater than 94%, and an analogous battery can paintings longer No-load latest is lower than 0, its personal energy loss is small, and performance is maximized Real performance: We present rated power 2000W/2500W/3000W, surge strength 4000W/5000W/6000W, a total of three powers to make your mind up from, each model can entirely exert its functionality inside this power, and function for many years with out stress Effective warmth dissipation: There are two radiators and two high-speed followers inside the inverter, which can quickly and efficiently lower the inner temperature, increase the carrier life of electronic components, and confirm long-term operation with out strain Intelligent temperature control: The clever fan controls the temperature of the inverter When the temperature is bigger than 45°, the fan starts, and when the temperature is less than 40°, the fan stops dissipating heat; or when the burden energy is bigger than 50% of the rated power, the fan starts dissipating heat (The beginning current of the induction cooker is about 10 occasions the operating current) High high quality & safety: alloy shell, sturdy and durable; equipped with overcurrent protection, overvoltage protection, undervoltage protection, brief circuit protection, overheating protection, and other security protection measures Indicator lighting and a buzzer at the inverter warn of possible mistakes 3 feature: Model: 4000W, 5000W, 6000W Rated power: 2000W, 2500W, 3000W Input voltage: 12V (9); 24V (18) non-compulsory Output voltage: 220V±0% Waveform: sine wave Frequency: 50Hz; 60Hz optional Socket type: universal variety four protection: overcurrent protection, overvoltage protection, undervoltage protection, brief circuit protection, overheating protection five list: Inverter*1 Wiring *1 pair (50CM) Battery connector*1 pair Positive and damaging protecting covers*1 pair Small wrench*1 Instructions*1

•
•
•
•
•

审核
