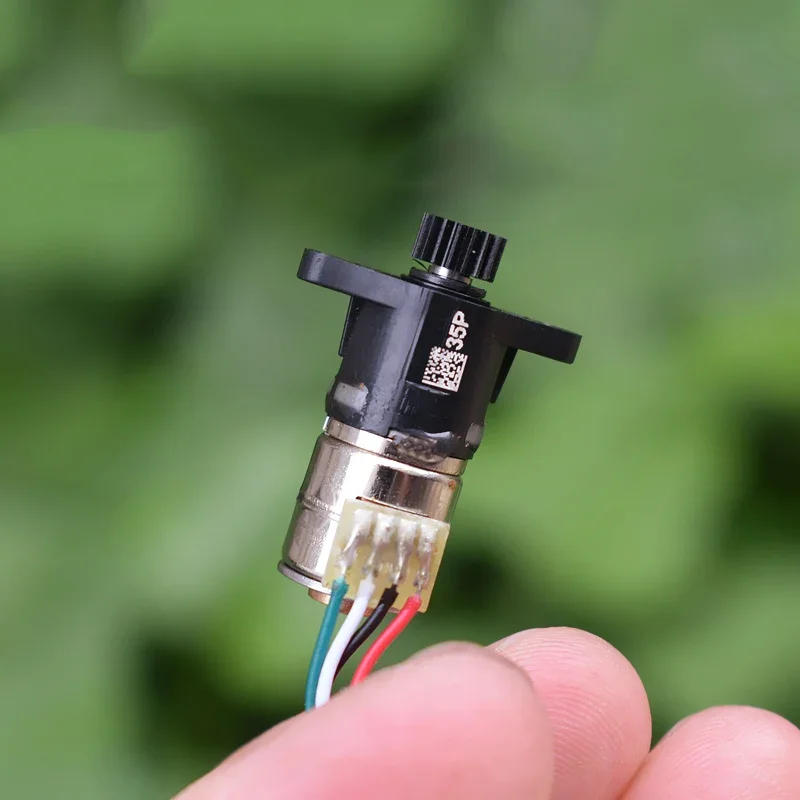

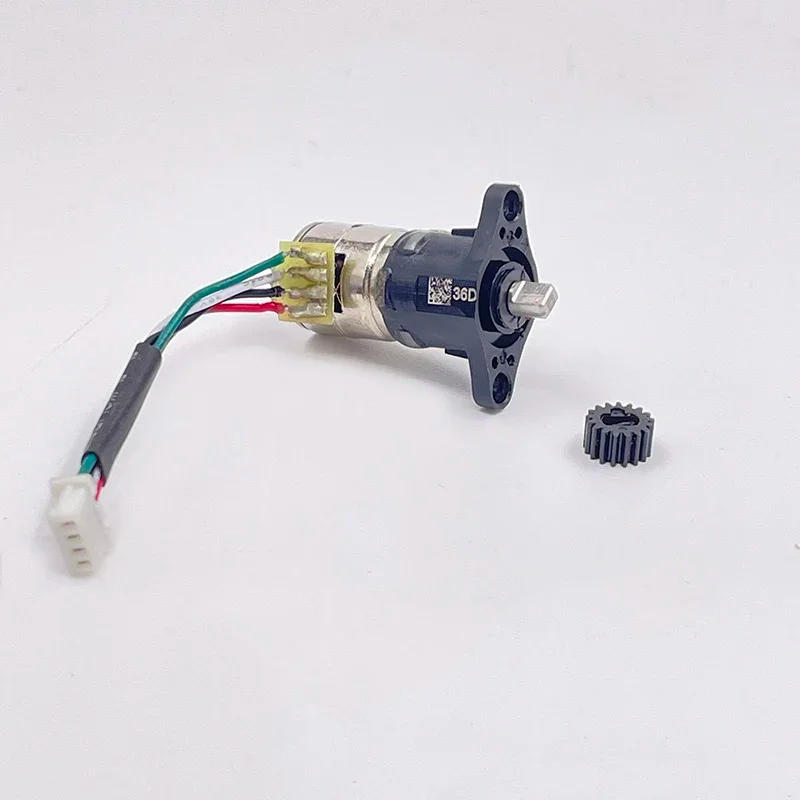

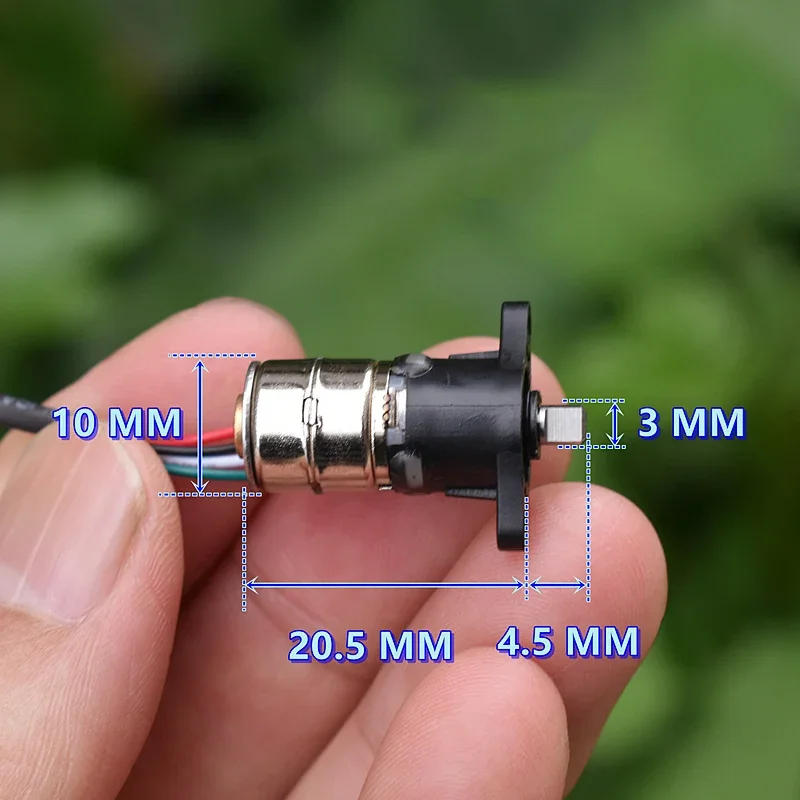

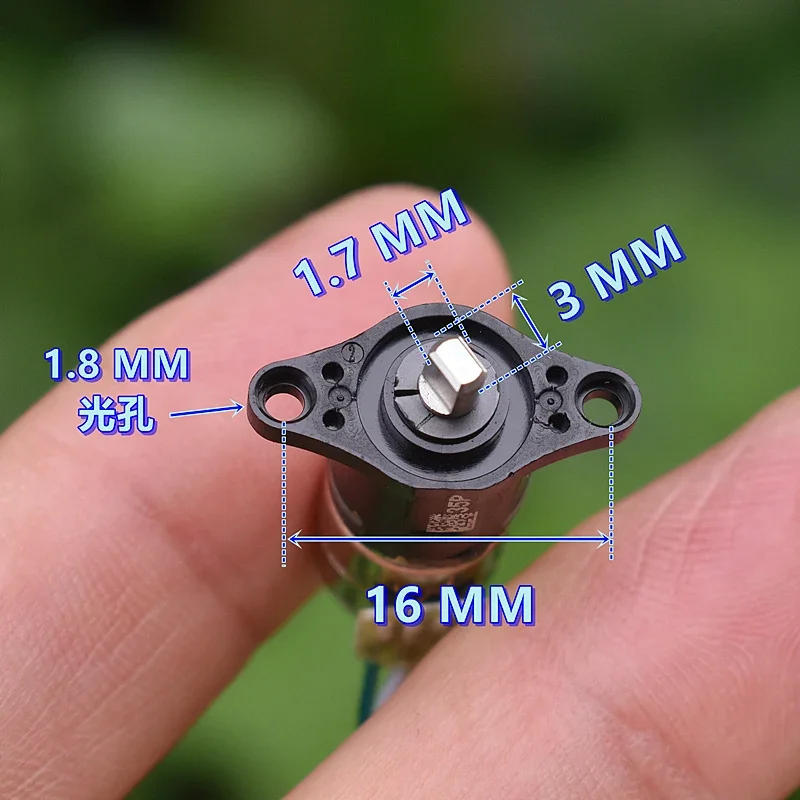

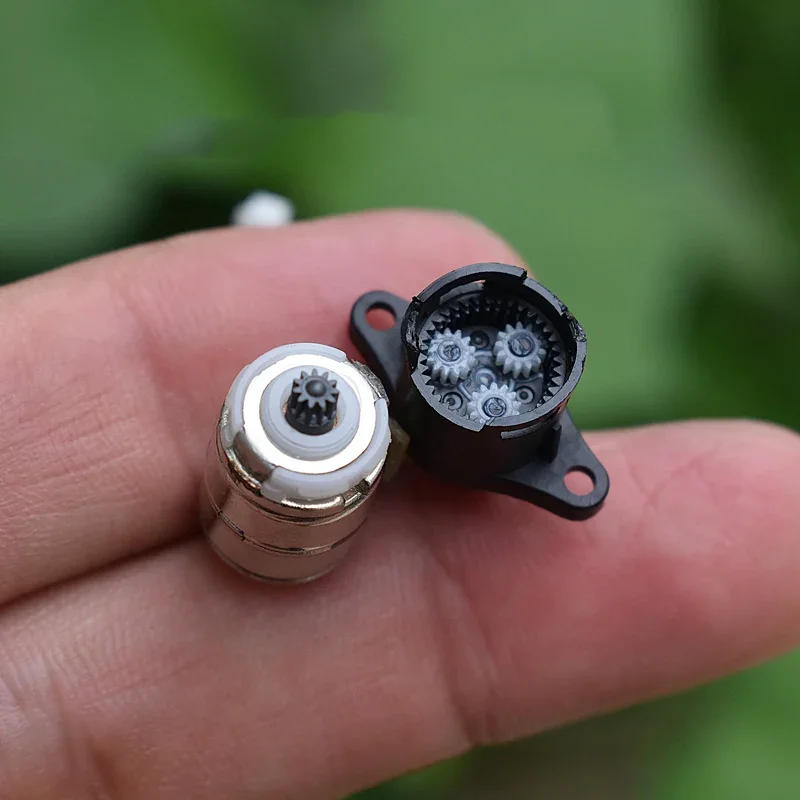

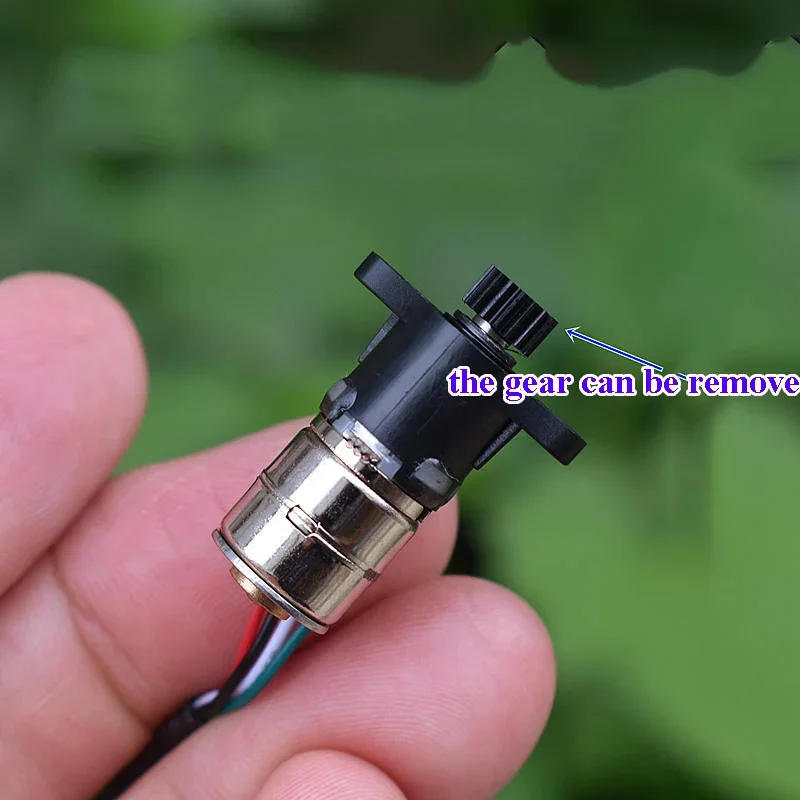

• Specification: Micro 2-Phase 4-Wire planetary discount stepper motor The outer diameter of the motor is 10mm The section resistance of the motor is approximately 20 ohms The planetary gearbox is a primary level planetary tools reduction with a discount ratio of approximately 1:19 This discount motor is exquisitely crafted, and the relationship between the gearbox and the motor is reinforced and fixed with glue The precision of the planetary reduction gearbox also is good, indicating that it's a precision product from a large producer The motor output shaft is supplied with plastic gears, however the gears would be smoothly eliminated by means of hand 1 diameter: 10mm 2 length: 20 (motor+gearbox) three shaft diameter: 3mm (dual flat shaft 1) four shaft length: 4 5 length: 40mm 6: 6 7 type: 2-phase 4-wire stepper motor eight resistance: about 20 ohms 9@5V quick circuit current: 0 10: one-stage planetary equipment discount eleven ratio: about 1:19 12 angle: Approximately zero levels (380 pulses to 360 degrees) 13: This is a planetary deceleration stepper motor with two phases and 4 wires, which calls for an additional 4 wire stepper motor motive force and pulse signal to function 14: We also lack of extra datasheet for this mini planetary discount stepper motor, we can no longer provide extra technical assist Package Include: Motor x 1pc

•
•
•
•
•
