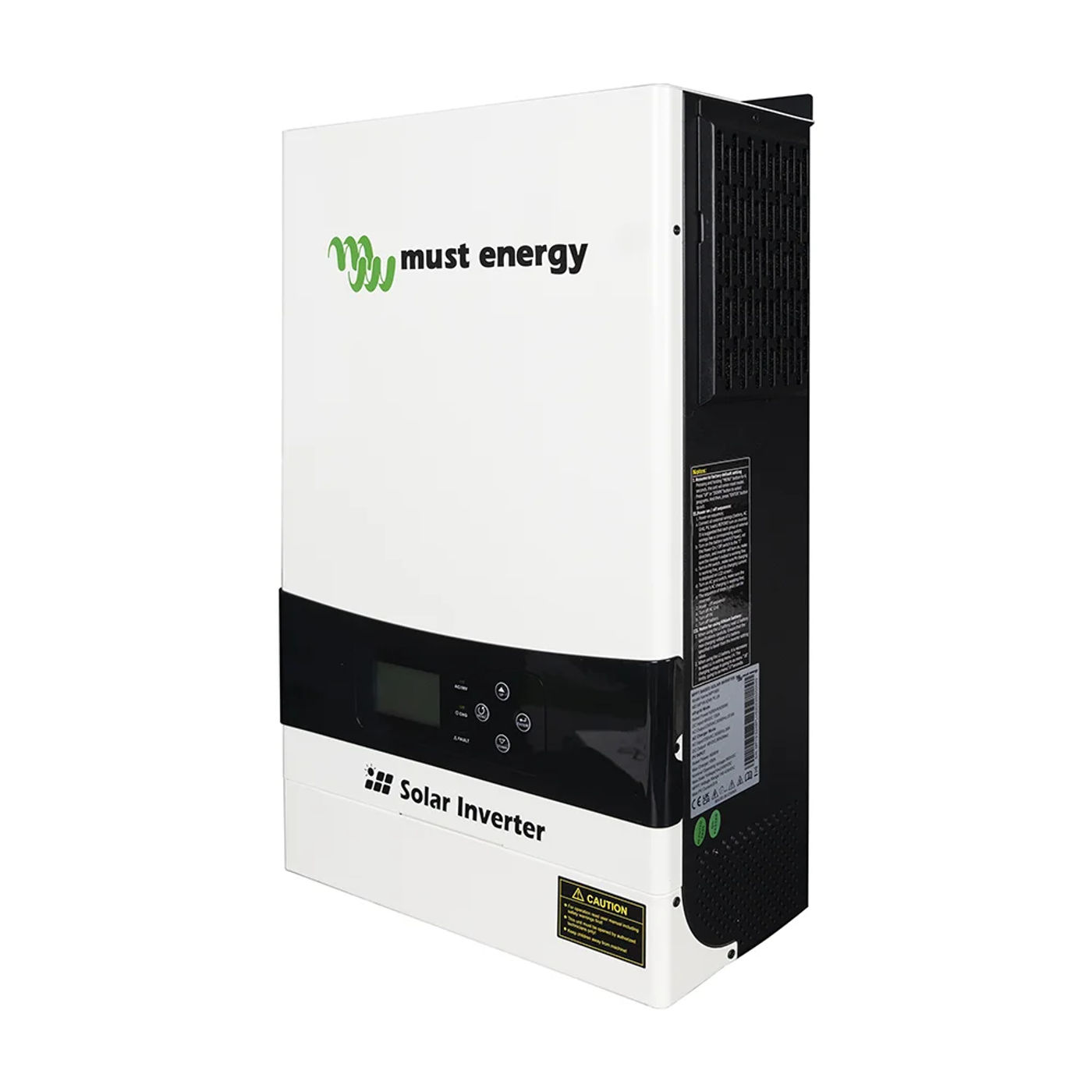

• MUST ENERYGY ON OFF GRID Hybrid Solar Inverter MP1900 is a multi-function inverter/charger, combining purposes of inverter, MPPT solar charger and battery charger to offer uninterruptible energy support in moveable size MP1900 PLUS Series can run with out battery The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can assist clients make full use of solar power Features *// Pure sine wave output *// Smart LCD surroundings (Working modes, Charge Current, Charge Voltage, etc) *// Build-in MPPT 80/100A solar fee controller, 80/60A AC payment controller *// Max PV Array Open Circuit Voltage 450V *// Can give you the power to the weight wothout battery *// Combining photo voltaic system, AC utility, and battery strength source to offer continual strength *// Overload, brief circuit and Deep discharge protection *// Cold start function *// Support USB, RS485 monitoring operate *// Support LiFePo4, Gel, Lead Acid and so forth battery *// Mobile Phone APP distant tracking (optional) *// Feed again calories to the grid(ON-OFF-GRID) *// WIFI, Parallel kit *// Output Source Priority Selection: SUB, SBU, SOL, UTIRecommend ProductProduct parameters MODEL MP1900/MH1900 PLUS Inverter Type OFF-GRID/ON-OFF-GRID Nominal Battery System Voltage 48VDC INVERTER OUTPUT Rated Power 5200VA/5200W Surge Power 10400W Waveform Pure sine wave AC Voltage Regulation (Batt) 230VAC±5%(Setting) Inverter Efficiency (Peak) 93% Transfer Time 10ms（For Personal Computers）20ms（For Home Appliance） AC INPUT Voltage 230VAC±5% Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) Frequency Range 50Hz/60Hz (Auto sensing) BATTERY Normal voltage 48VDC Floating Charge Voltage fifty four Overcharge Protection 60VDC SOLAR CHARGER&AC CHARGER Maximum PV Array Open Circuit Voltage 450VDC PV Array MPPT Voltage 150-430 VDC Maximum PV Current 18/27A Maximum PV Array Power 5000/6000W Maximum Solar Charge Current 80/100A Maximum AC Charge Current 60/80A Maximum Charge Current 80/100A MECHANICAL SPECIFICATION Machine Dimensions (W*H*D)(mm) 295*528*121 Package Dimensions (W*H*D)(mm) 628*425*251 Gross Weight(kg) thirteen OTHER Humidity 5% to 95% Relative Humidity (Non-condensing) Operating Temperature 0°C -55°C Storage Temperature -15°C -60°C SKU Explanation five five inverter 5 five inverter with buil-in parallel kits five 5 inverter with WIFI-PLUG 5 5 inverter with build-in parallel kits and WIFI-PLUG Product DescriptionNote Only inverters bought with a integrated parallel package come ordinary with a parallel conversation cable Recommend Solar Panel Connetion PV module spec(reference) Maximum Power(Pmax):250W Max Voltage Vmpp(V):30 Max Current Impp(A):8 Open Circuit Voltage Voc(V):37 Short Circuit Current Isc(A):8 Total solar input strength solar enter Q&;tys of modules 1500W 6pcs in sequence 6pcs 2000W 8pcs in series 8pcs 2750W 11pcs in sequence 11pcs 3000W 6pcs in sequence 2 strings in parallel 12pcs 4000W 8pcs in collection 2 strings in parallel 16pcs 5000W 10pcs in sequence 2 strings in parallel 20pcs V module spec(reference) Maximum Power(Pmax):452W Max Voltage Vmpp(V):38 Max Current Impp(A):11 Open Circuit Voltage Voc(V):45 Short Circuit Current Isc(A):11 Total solar enter energy solar enter Q&;tys of modules 2550W 6pcs in sequence 6pcs 3400W 8pcs in sequence 8pcs 5100W 6pcs in series 2 strings in parallel 12pcs 5950W 7pcs in sequence 2 strings in parallel 14pcs PC and APP Config and Monitor Our inverter could be hook up with PC, please obtain the upper-computer-software and use the communication cable which include the inverter to set up your inverter through PC or test all the records Down load at Our inverter would be tracking through mobile APP, check your inverter ANYWHERE, ANYTIME Ask us if you want Mobile APP instruction FAQ 1 Policy Shipping from China: Parcel sent within two working days, Standard logistics: transport time: 15-40 days, Fast logistics (DHL/FedEx/UPS): shipping time: 7-10 days Shipping from Polish warehouse: parcels sent within one working day, Delivery time: 3-5 days(DHL_PL/DPD) 2 policy The guarantee period of every inverter is one year, nice from the time you receive the goods, inside twelve months of non-human points of damage, engineers will diagnose for you free of charge to establish the issue and provide fix solutions, loose equipment within the guarantee period three coverage Other issues can be instantly online touch us, technical disorders would be straight contacted with engineers, 24 hours online to produce you with servicesEngineer phone: +86 17788797642, WeChat and WhatsApp with an analogous number, E-mail: cs-zjs@mustpower Wrong means of operation can cause the product to burn out, corresponding to not following the conventional installation when connecting cables Please learn the guide carefully when putting in About MUST Shenzhen MUST ENERGY Power Co, Ltd established in 1998, with the headquarter in Hongkong, which is a professional hi-tech venture really expert in Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service Our complete product lines include: Power inverter, Solar inverter, Solar fee controller, Solar battery and a few other linked Solar merchandise merchandise have handed SAA,CE, SONCAP certificates and IS9001 quality certificates We are one of the authorized suppliers for China Government overview

•
•
•
•
•
