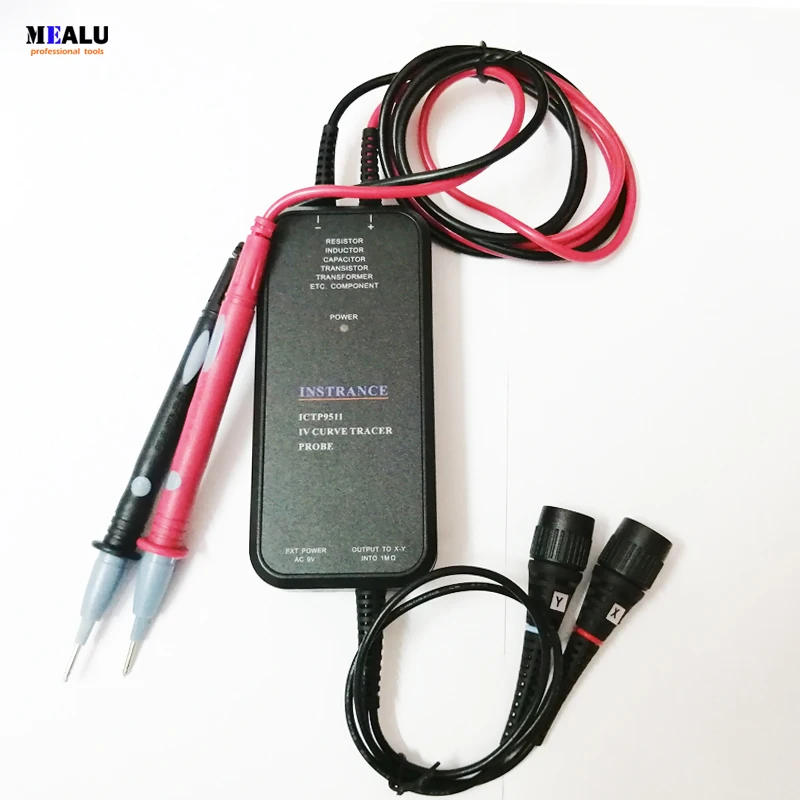

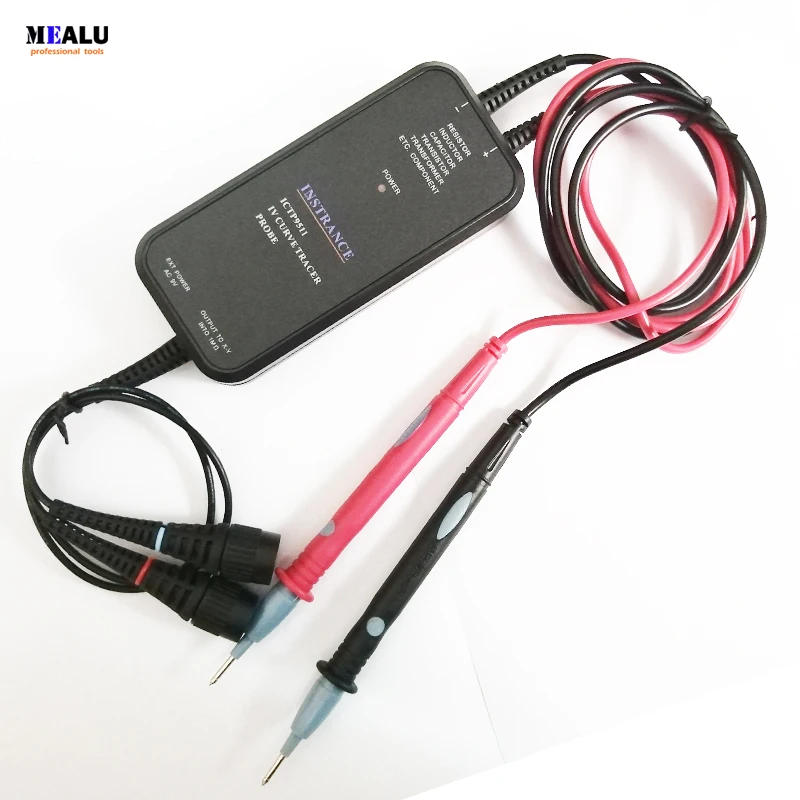

• Brief introduction ICTP9511 IV curve tracer probe is always used with an oscilloscope Display the I-V curve trace of measured object on the display screen of oscilloscope to measure or evaluation the resistance, inductor, capacitor, transistor, transformer etc aspect It also can be used to evaluation the various parameter of circuit If you want to verify or repair a PCBA or a flawed instrument, comparison to a golden board can be quite clever method in on daily basis prepare When you can use it expertly, the performance might be much larger than multi-meter and recurring probe Perhaps probably the most very best is that the ICTP9511 could be used whereas the thing PCBA or tool could not be allowed to energise or energy on In fact, we regularly confront these conditions For example, if a wrong device be powered on, the faults maybe augment and broaden the loss It could also be used at the following location usually: Check overall component & substances mixture Check transformer or motor coils Check and service PCBA Check and service digital tool Measure and Analysis the circuit parameter Basic digital experiment Main Specifications Electrical Specification AC adapter output AC9V 100mA AC adapter enter AC220V 50~60Hz Typical mechanical specification Input cable length Approximately 100cm Output cable length Approximately 50cm Probe body 120×55×24（mm） Weight 300g Environment Specification Operating temperature 0~40℃ Storing temperature -10~45℃ Operating humidity 85%RH Storing humidity 90%RH Operating altitude 3000m Storing altitude 12000m Example I-V curve trace for some components： Packing list: 1pcs ICTP9511 probe 1pcs Instruction manual 1pcs AC adapter Preparation for use Please check the line voltage sooner than join the AC adapter to the electric outlet The line voltage must be coincident the following list If the incorrect line voltage is used, it's going to harm the product and the AC adapter AC adapter input voltage Frequency AC220V 50~60Hz Warning：Use solely the AC adapter specified for this product to avoid harm and forestall injury to this product

•
•
•
•
•
