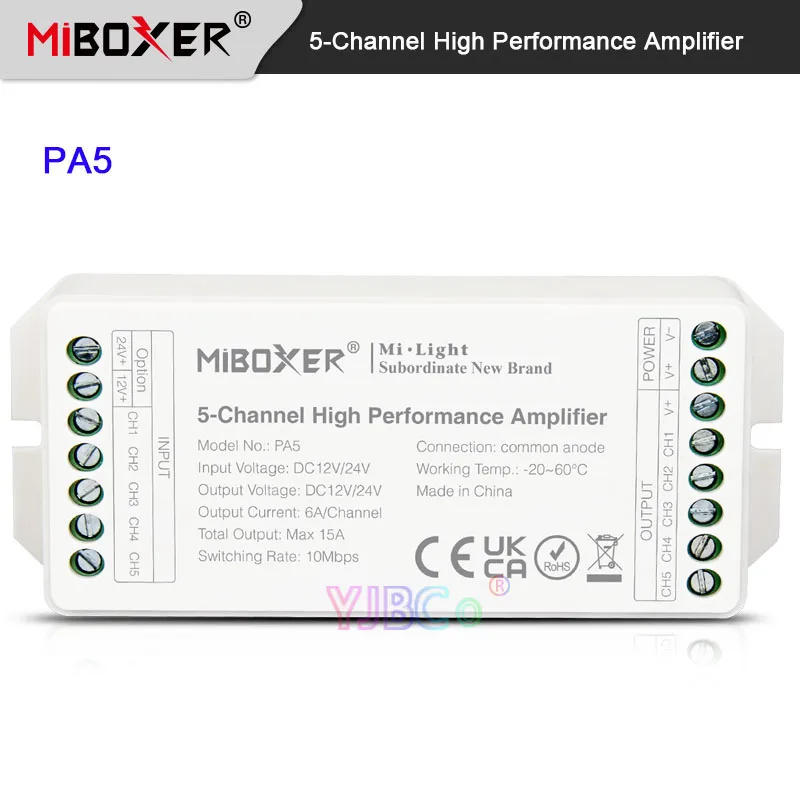

• 5-Channel High Performance Amplifier • Compatible with Mi-Light / MiBoxer series controllers and all PWM range LED controller in market. • it is going to output the signal of leading controller permanently and synchronously. • We undertake excessive recent MOSET output to guarantee the excessive output power. • Adopt excessive velocity optical coupler, with 10Mbps output fee Product Parameters: Product Name: 5-Channel High Performance Amplifier Model No.: PA5 Work Temperature: -20~60℃ Input Voltage: DC12V/24V Output Voltage: DC12V/24V Output Current: 6A/Channel Total output Max: 15A Switching Rate: 10Mbps Connection: Common anode Package included:1 pieces * PA55-Channel High Performance Amplifier We undertake excessive current MOSFET output to guarantee the excessive output power. Adopt excessive pace optical coupler, with 10Mbps output fee Strong compatibility Compatible with Mi-Light / MiBoxer sequence controllers and all PWM kind LED controller in market. We adopt excessive current MOSET output to assure the high output power. Application Diagram Dotted Line Note: Please choose and attach to the right V+(12V/24V) terminal in holding with the voltage of LED strip.

•
•
•
•
•
