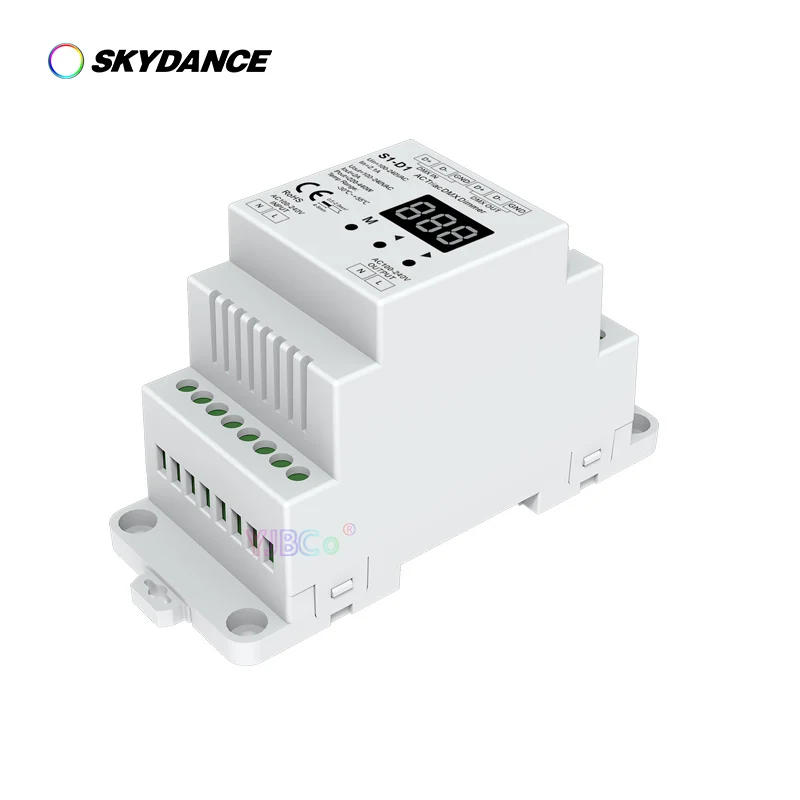

• Model No.: S1-D1 AC Triac DMX Dimmer 1 Channel/RDM/Stand-alone function/Leading edge or trailing edge/Numeric display/Din rail Features: ● AC phase-cut mosfet dimmer with DMX512 function, one channel output. ● Comply with the DMX512 steady protocols. ● Digital numeric display, set DMX decode transport contend with through bottons. ● RDM function can notice intercommunication between DMX grasp and decoder. ● Reverse-phase dimming or forward-phase dimming selectable. ● Minimum brightness set from 1% to 40%. ● Stand-alone dynamic mode and dimmer mode selectable, which be managed through buttons with built-in programs, instead of DMX signal. ● To dim and switch single coloration dimmable LED lamps, usual incandescent and halogen lights. ● Over-heat protection, get well mechanically Technical Parameters: Input and Output Input Voltage : 100-240VAC Output Voltage : 100-240VAC Output latest : 1CH, 2A Output strength : 200-480W Dimming news Input sign :DMX512 Dimming leve: 256 levels Dimming vary :0 -100% Caution: Please intently make certain all cord connections and polarities are appropriate and securebefore making use of power, in any other case this controller may be damaged. Note: When calculating the utmost style of load lamps or drivers, the enter energy or enter recent parameters of a unmarried lamp or driving force needs to be used, the output strength parameters cannot be used. In addition, the maximum surge current of the dimmer is 65A, the sum of surge latest of a number of dimmable LED drivers should not exceed 2 times. otherwise, the product might be overloaded and damaged. Operation: System parameter atmosphere ● Long press M and ◀ key for 2s, train for setup system parameter: management method, minimal brightness curve, default output level, computerized clean screen. brief press M key to change 4 item. ● Control method: short press ◀ or ▶ key to modify forward-phase("C-F") or reverse-phase("C-R"). ● Minimum brightness: brief press ◀ or ▶ key to set minimal brightness, from 1% to 40%("b01" to"b40"). You want set compatible minimal brightness to avoid ick. ● Default output level: press ◀ or ▶ key to change default 0-100% point ("d00" to "dFF" ) when no DMX enter signal. ● Automatic blank screen: brief press ◀ or ▶ key to change enable("bon") or disable("boF") automated clean screen. ● Long press M key for 2s or timeout 10s, quit substances parameter setting. DMX mode ● Short press M key, when demonstrate 001~512, enter DMX mode. ● Press ◀ or ▶ key to alter DMX decode birth address(001~512), lengthy press for immediate adjustment. ● If there's a DMX sign input, will input DMX mode automatically. ● DMX Dimming: Each S1-D1 DMX decoder occupy 1 DMX handle when connecting the DMX console. Stand-alone dimmer mode ● Short press M key, when demonstrate L-1~L-8, enter stand-alone dimmer mode. ● Press ◀ or ▶ key to alter dimmer mode number(L-1~L-8). ● Each dimmer mode can regulate brightness independently. Long press M key for 2s, prepare for setup brightness. Press ◀ or ▶ key to setup brightness value(100-1FF). Long press M key for 2s, or timeout 10s, quit setting. ● Enter stand-alone dimmer mode entirely when DMX signal is disconnected or lost. Stand-alone dynamic mode ● Short press M key, when display P-1~P-2, input stand-alone dynamic mode. ● Press ◀ or ▶ key to alter dynamic mode number(P-1~P-2). Stand-alone dynamic mode ● Each mode can adjust speed and brightness. Long press M key for 2s, train for setup mode speed, brightness. Short press M key to change two item. Press ◀ or ▶ key to setup cost of every item. Mode speed: 1-10 point speed(S-1, S-9, S-F). Mode brightness: 1-10 level brightness(b-1, b-9, b-F). Long press M key for 2s, or timeout 10s, stop setting. ● Enter stand-alone dynamic mode completely when DMX sign is disconnected or lost. Restore manufacturing facility default parameter ● Long press ◀ and ▶ key for 2s, repair factory default parameter, display"RES". ● Factory default parameter: DMX decode mode, DMX decode delivery address is 1, rerverse-phase control, 10% minimal brightness, dimmer mode quantity is 1, dynamic mode number is 1, output 100 percent point when no DMX input,disable automated clear screen. Package content : 1pcs* S1-D1 AC Triac DMX Dimmer 1pcs* Introduction Manual

•
•
•
•
•
