6 Size Stainless Steel Float Switch Tank Liquid Water Level Sensor Double Ball Float Switch Tank Pool Flow Sensors 10W / 50W
Specification:
Color: Silver
Material: Stainless Steel
Max Contact Rating: 10W / 50W
Max Switching Voltage: 240V AC
Max Breakdown Voltage: 220V DC
Max Switching Current: 0
Max Carry Current: 1A
Max Contact Resistance: 100mΩ
Operating Pressure: 10kg/cm
Max Pressure: zero Mpa
Applicable Proportion: zero
Operating Temperature: -10 ~ +120°
Switch Operation: Reversible
Wire: PTFE High Temperature Line
Installation Method: Vertical Mounting
Thread Diameter: 10mm / zero inch

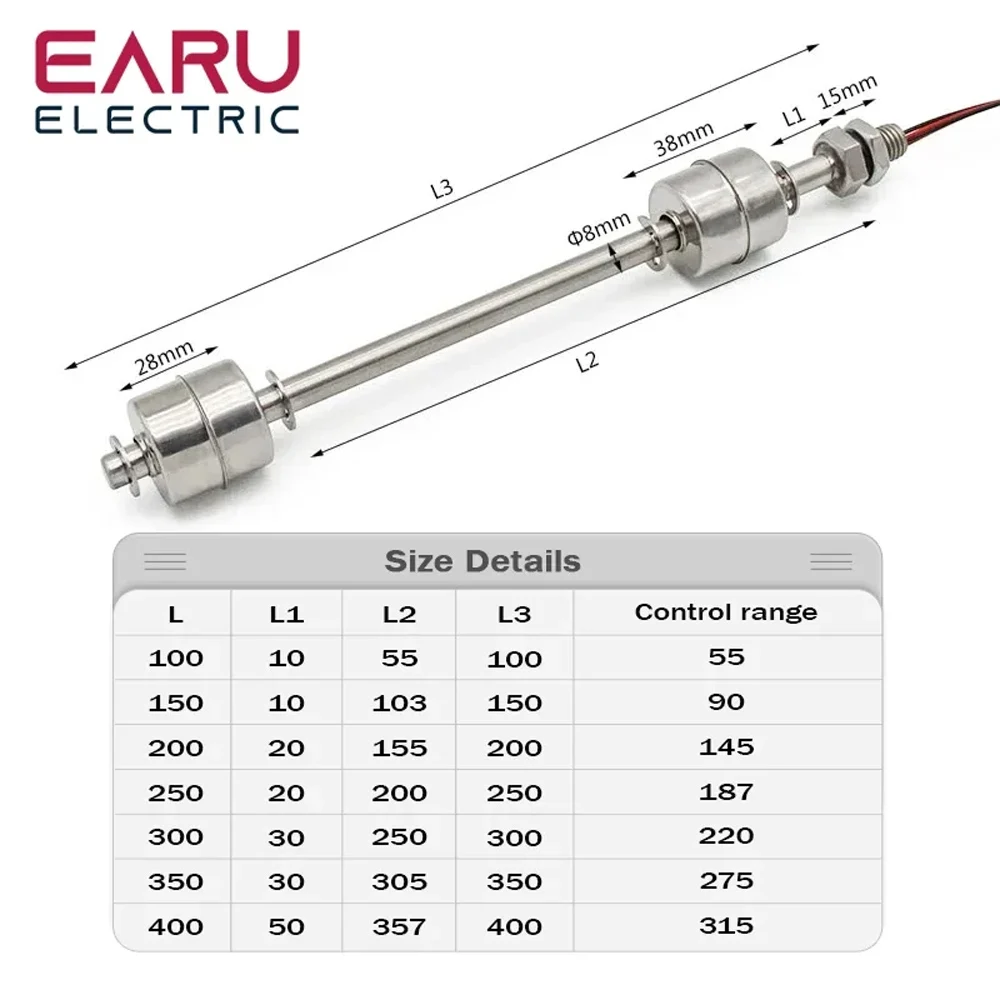

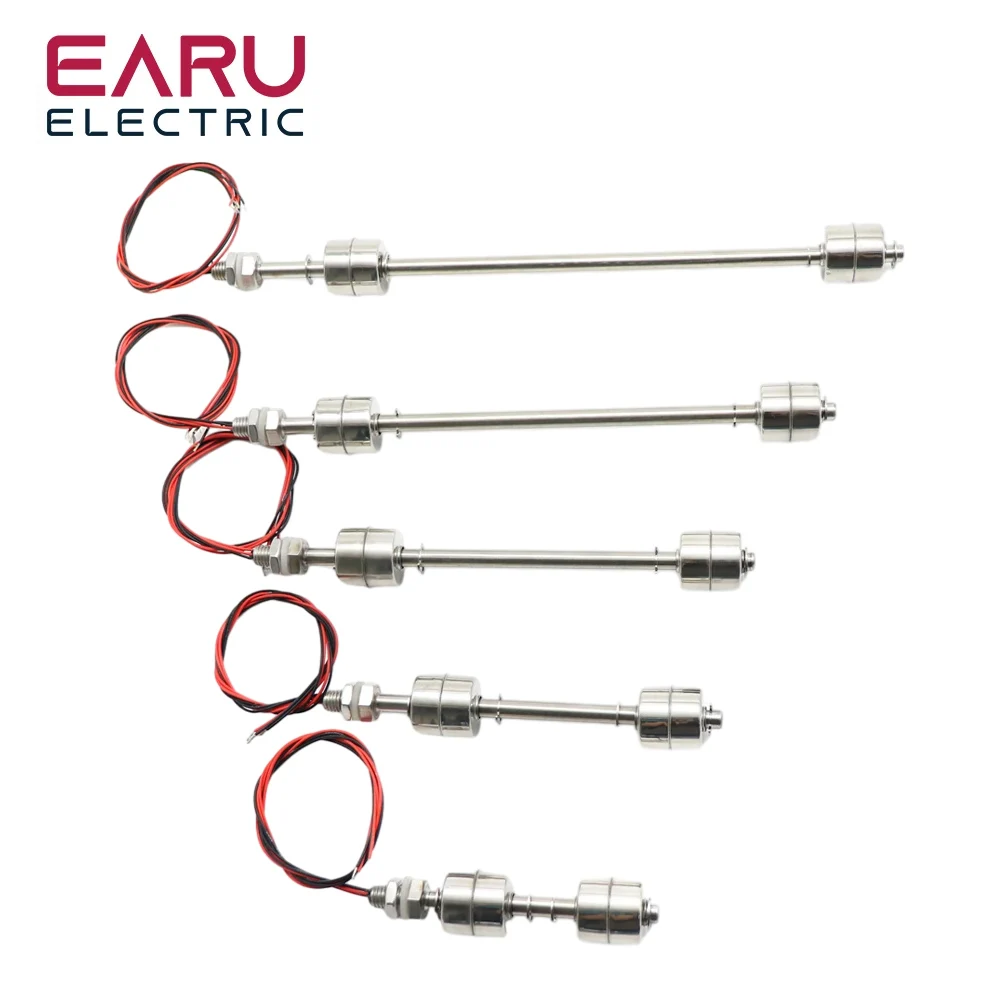

6 Size Optional:
100mm / three inch
150mm / five inch
200mm / 7 inch
250mm / nine inch
300mm / eleven inch
400mm / 15 inch
Features:
Used to sense the extent of liquid within a tank
Light weight and straightforward operating principle, excessive reliability
The swap may perhaps switch on a pump, an indicator, an alarm, or different gadget
This float switch is a straightforward structure, clean installation liquid point controller
Widely utilized in electronic, electrical, chemical, water treatment, drainage and different fields
The versatility of this vertically mounted sensor suggests that it may be put in either on the top or base of your tank, looking on whether or not you for like to locate the water&;s upward push or fall
Package Included:
1 x Floating Switch
Instruction isn't integrated Any questions, please contact us for answer Hope a nice day!
Notice:
- Please enable slight dimension distinction due to guide size
- Please evaluate the particular sizes in the directory because the photos are generally enlarged to reveal detail
- Due to diversified producing batches, product details is probably a little varied If you minding the difference, please buy it carefully
- Due to the sunshine and screen difference, the item&;s colour may be barely different from the images Thanks in your realizing
