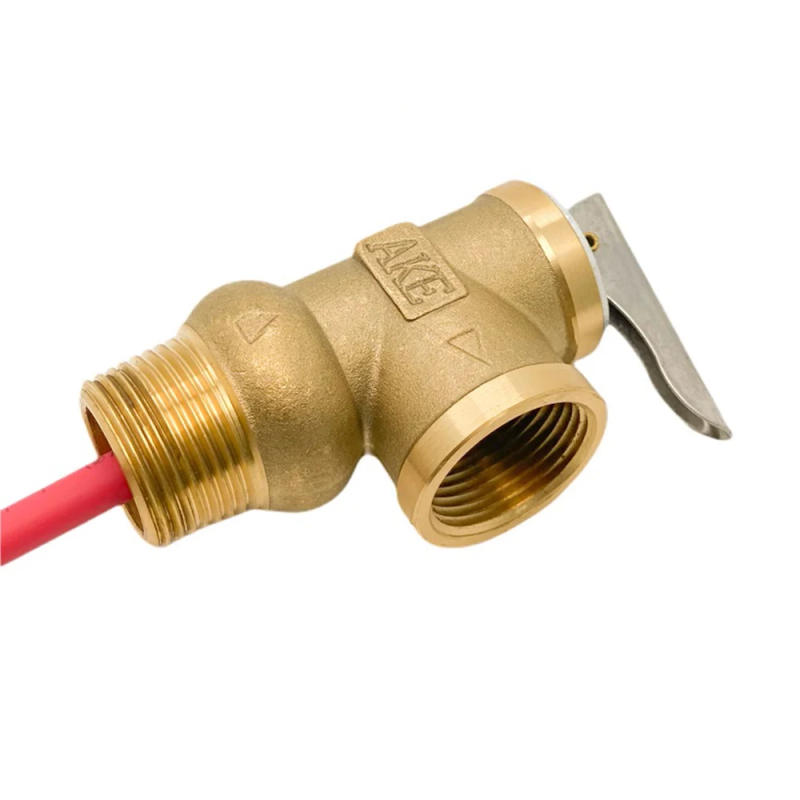

• TP Valve BSP3/4" Temperature and Pressure Relief Valve as TP Safety Valve 99C Detailed Product Description 1,T/P valve production unit 2 valve for solar water heater 3 safe to us Function The TP reduction valve controls and boundaries the temperature and pressure of the hot water contained in a photo voltaic home water garage heater and forestalls it from being able to reach temperatures of over 100°C, with the formation of steam On attaining the settings, the valve discharges a enough quantity of water into the atmosphere so that the temperature and stress go back within the system’s working limits Operating precept The valve opens the opening on achieving the settings for: - temperature: the thermostat compound contained in the temperature sensor 1), submerged within the hot water garage heater, expands as the temperature increases This growth reasons a thrust pin to move and act on the obturator 2) opening the valve The valve is decided to open at temperatures of over 99°C - pressure: the obturator, opposed via a group spring, raises on achieving the stress surroundings and opens the hole permanently The stress surroundings is chosen in keeping with the utmost permissible strain in the formulation As the temperature and stress decrease, the alternative motion occurs with the valve subsequently reclosing within the set tolerances Installation Before installing a TP relief valve it's necessary for the sizing to be performed properly by really good technical team of workers in response to the present laws for the categorical applications Any use other than the meant use is prohibited The TP reduction valves ought to be installed by way of certified technical personnel according to recent laws The TP aid valves should be put in gazing the direction of flow indicated through the arrow at the valve physique Materials: Body: Brass Spring: metallic EN 10270-1 SH Control knob: PA6GF Performance Nominal pressure: PN 10 Discharge rating: - 1/2” Ø 15; 10 kW - 3/4” Ø 22; 25 kW Medium: water PED category: IV Settings: - temperature: 90,99 - pressure: 6 /8 bar MODEL ImportxExport (in) A (mm) B (mm) D (mm) T (mm) Weightg Temp BTU/hr P/T--15 R1/2*RP1/2 forty one eighty two 29 one hundred and one 237 15,000 P/T--20 R3/4*RP3/4 42 eighty three 29 100 258 100,000 Shipping & Handing Most items from our store would be shipped inside 3working days upon price verified by means of BuydoThe shipping cost quoted DOES NOT encompass extra prices for distant subject indexed by way of Express companiesETA(Estimated Time of Arrival)displayed in the directory is given by shipping companies yet that may now not be as reason of delivery not on time dispute We will NOT be chargeable for any postpone during delivery including but now not restricted to customs postage checking, strike, force majeure etc buyers have been required to fill within the full name; Brazilian consumers are required to depart CPF/CPNJ Number; Chilean consumers are required to leave RUT numberCustom Duty & TaxesImport duties, taxes and costs usually are not included within the item price or delivery charges These fees are the customer obligation Please confer with your nation customs office to determine what those extra costs could be ahead of bidding/buying ReturnIf you get hold of an merchandise now not as described,please contact us within 7 days and return the article for the right one you get hold of an item DOA (damage on arrival) or a defects products, please touch us A alternative or refund can be offered after communique Some low-valued goods might not be returned NON-Seller Mistake returns, shipping and handling commission could be on buyer’s accountAll go back merchandise must be in original package with all equipment included stand in the back of our merchandise so that you are continuously covered!To show it we offer a FREE Six-MONTH limited guarantee Please learn the following main details concerning the Warranty Policy warrant all products to be loose from defects in materials or workmanship for a minimum of 6 month from date of purchase entirely warrantly customers an change or refund within 7 enterprise days if item DOA (damage on arrival) excludes normal product lifetime wear-out, put on and tear or abuse would not practice to situations due to misuse, abuse, negligence, accident, wrong application, mistaken installation or alteration DO touch us first if there is any problem with payment, shipping or merchandise acquired Negative feedback will do no assist to unravel the issue

•
•
•
•
•
