Specifications:
Product name: 1008C Car Oscilloscope
Type: Virtual oscilloscope
Number of channels: eight
Bandwidth: 0 (MHz)
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7,Window 8,Window 10
Features:
Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly effective and cost -effective
8 channels oscilloscope for vehicle trying out
Auto Ignition Probe
2/s genuine time sampling rate, 12bit vertical resolution
spectrum evaluation operate
10mV/div to 5V/div enter sensitivity
DAQ card function
8 channels programmable generator which can analog signals of crankshaft, camshaft, and so on
(1) Vehicle Testing:
First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
Ignition: most important and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle function
Bus Diagnosis: CAN bus records examine, CAN bus sign integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
(2) Oscilloscope:
eight channels oscilloscope, 2/s real time sampling rate
12 bits vertical resolution, spectrum analysis operate
(3) Programmable Generator:
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc
(4) Others:
USB 2 interface plug and play, and no use more strength supply;
More than 20 kinds of automated testing function, a similar interface with benchtop oscilloscope, clean to use;

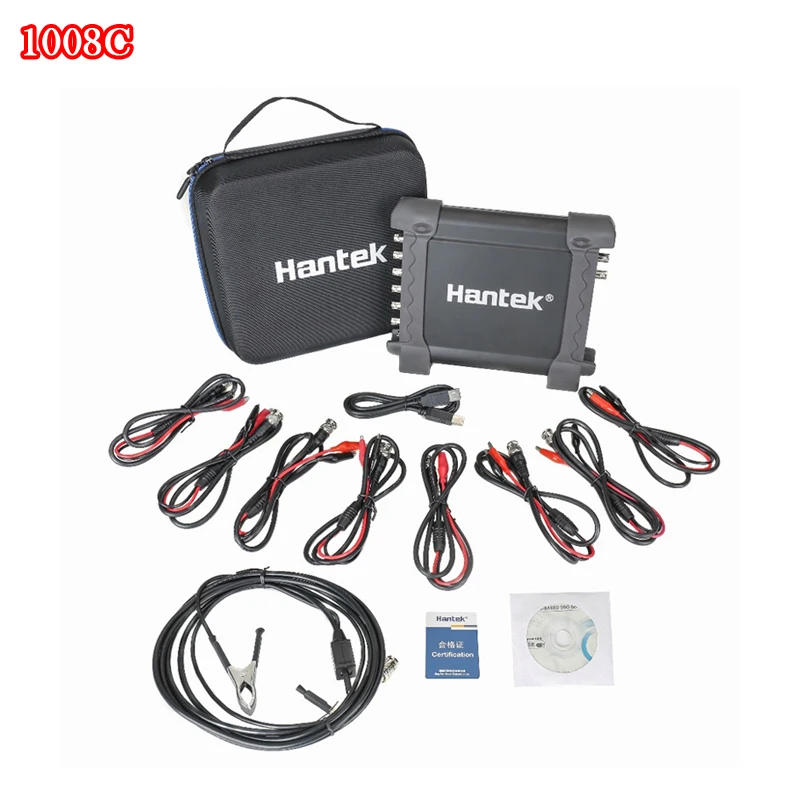

Package Included:1008C Set:
Main Set:
1 x Oscilloscope
1 x USB Cable
eight x BNC to alligator clamp line
1 x 1008C High strain ignition probe
1 x Resource cd-rom (driver etc)
1 x Product instruction Manual
1 x Bag
Accessories Set:
1 x HT201 Attenuator
1 x ET310 BNC Connector
1 x CC-65/CC-650 Current Clamp
OR
1008C:
1 x Oscilloscope
1 x USB Cable
8 x BNC to alligator clamp line
1 x 1008C High strain ignition probe
1 x Resource cd-rom (driver etc)
1 x Product instruction Manual
1 x Bag
OR
1 x CC-65/CC-650 Current Clamp
Note:
1 Manual measuring, please allow slightly 1 ~ 2mm error, thank you
2 Due to the difference between diverse monitors, the picture might not reflect the actual colour of the object Please allow a bit coloration distinction
Product Operation Steps:
Function Selection:
There are 3 applications of vehicle diagnosis, oscilloscope and signal generator, including seventy eight sorts of automobile diagnosis operate
One Button Screenshot:
Save the present waveform and generate photographs Storage location is optional and easy find
Quick Guide:
Callout the short guide column with one button There are particular vedio guide for every vehicle diagnosis function, including wiring method, adjustment method, reference waveform and so on And it's supported to be checked through scanning the QR code
Reference Waveform:
Over eighty sorts of normal reference waveform inside and might be callout or shut with one button It is convenient to be compared
Measurement Method:
20 sorts of automated measurement formula that are callout or shut with one button It is handy and visible to learn out the outcome
Print:
The outcome would be printed with one button and generate prognosis file which is easy to be stored and recorded
REF Comparison Waveform:
The consumer can save the waveform as REF structure and callout it again when you should evaluate the 2 waveforms catched in numerous time
Data Storage:
The analysis result could be saved because the structure of txt, csv, rfc, xls, doc, jpg and and so on It is convenient to be checked and in contrast later
8CH Vehicle Diagnosis:
8CH sign can be measured concurrently The measurement voltage of every channel can be adjusted independently You can choose to open or close every single channel
Waveform Record:
Support to record and replay the waveform The waveform would be save into the pc hard disk drive and simple to learn There is no limit to the listing time which might long-time measure and checklist the waveform for troubleshooting
Multilanguage Support:
Support the reveal surface in Chinese, English, German language, and it can be switched freely
Cursor Measurement:
Support four kinds of cursor size mode -cross,track, horizontal, and vertical&;s smooth to read out the time and voltage of irregular signal
Color and Lightness:
The background colour is non-obligatory as user&;s choice And the lightness of waveform and gridding is settable
Easy to Install Software:
Install the PC software and begin to apply with none other drivers Support WIN XP/7/8/10
USB Communication:
USB2 power supply + conversation interface, plug and play, and support sizzling plugging
Signal Generator:
Signal generator function, can simulate crankshaft and camshaft signal
