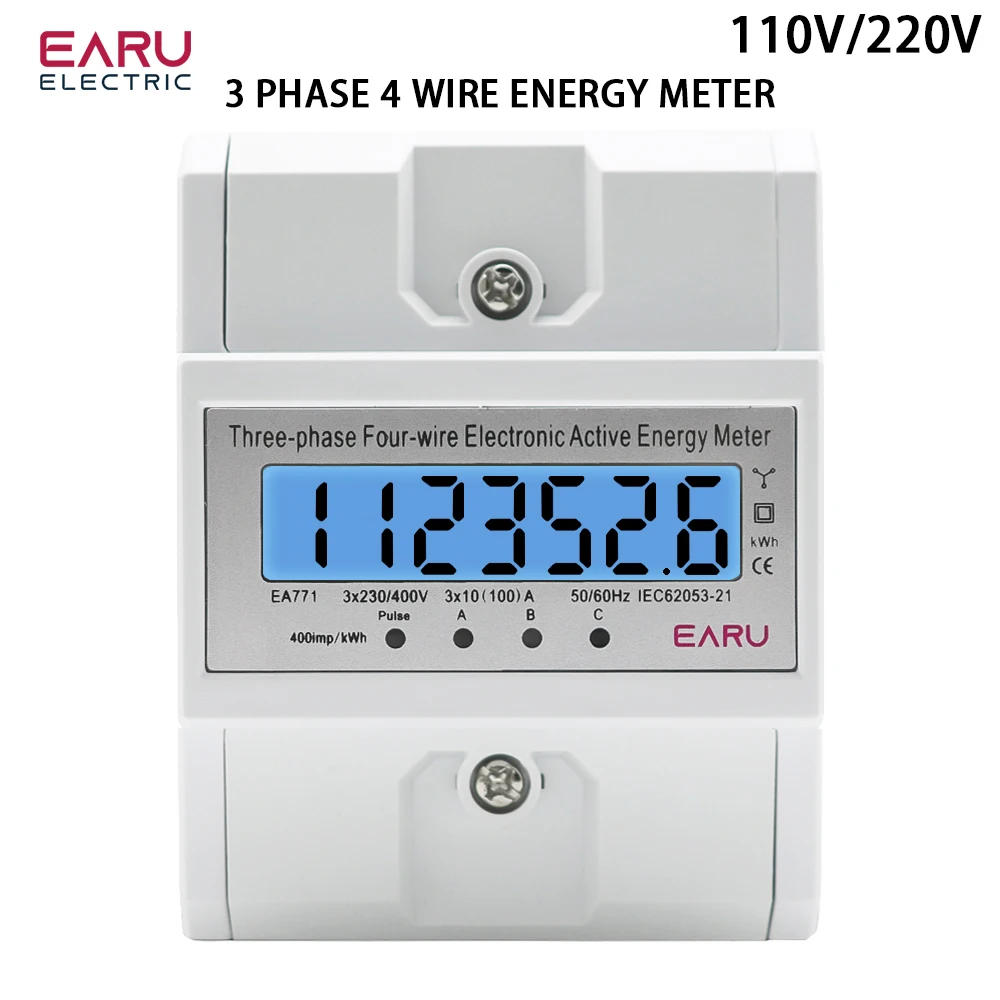

• Three-phase electricity meter, electronic, equipped with LCD reveal High quality, low weight, small product dimensions Designed, manufactured and tested in response to international standards The major points of the product are: a wide range of voltage measurement, excessive accuracy, reliability, resistance to overload, energy consumption is terribly low The meter allows measurements of energetic energy Three LEDs exhibit the presence of each part Measurement of energetic energy over a long period of time without the desire for calibration It has an inside connection for recent and voltage dimension Work rules: The voltage and current are sampled from the respective circuits and switched over right into a signal that is fed to the incorporated circuit Themeter has an impulse output for testing, with a pulse width:80+20ms To preserve the meter opposed to external weather conditions, it will be installed in a box TECHNICALPARAMETERS: -Type:3-phase, - Max current: 10(100) A,1(6)A - Power consumption:<2W/10VA, - Voltage: 3x120/208V, 3x220/380V, 3x230/400V, - Frequency: 50/60 Hz, - Display:LCD 6+1 (999999,9 kWh), - Degree of protection: IP20, - Pulse frequency:1000imp/ kWh, - Normal voltage range:90%Un~110%Un, - Limits voltage range:70%Un~120%Un, - Installation: for DINrail,35 mm WARNING: -The meter must be put in by a professional person, - The meter ought to be installed at a height of about 1, - Installation needs to be in response to the connection diagram below The most cross-section of wires:35mm? - The meter needs to be put in in an acceptable environment with an ambient temperature differ of -25"~ +55" and relative humidity under 75%

•
•
•
•
•
