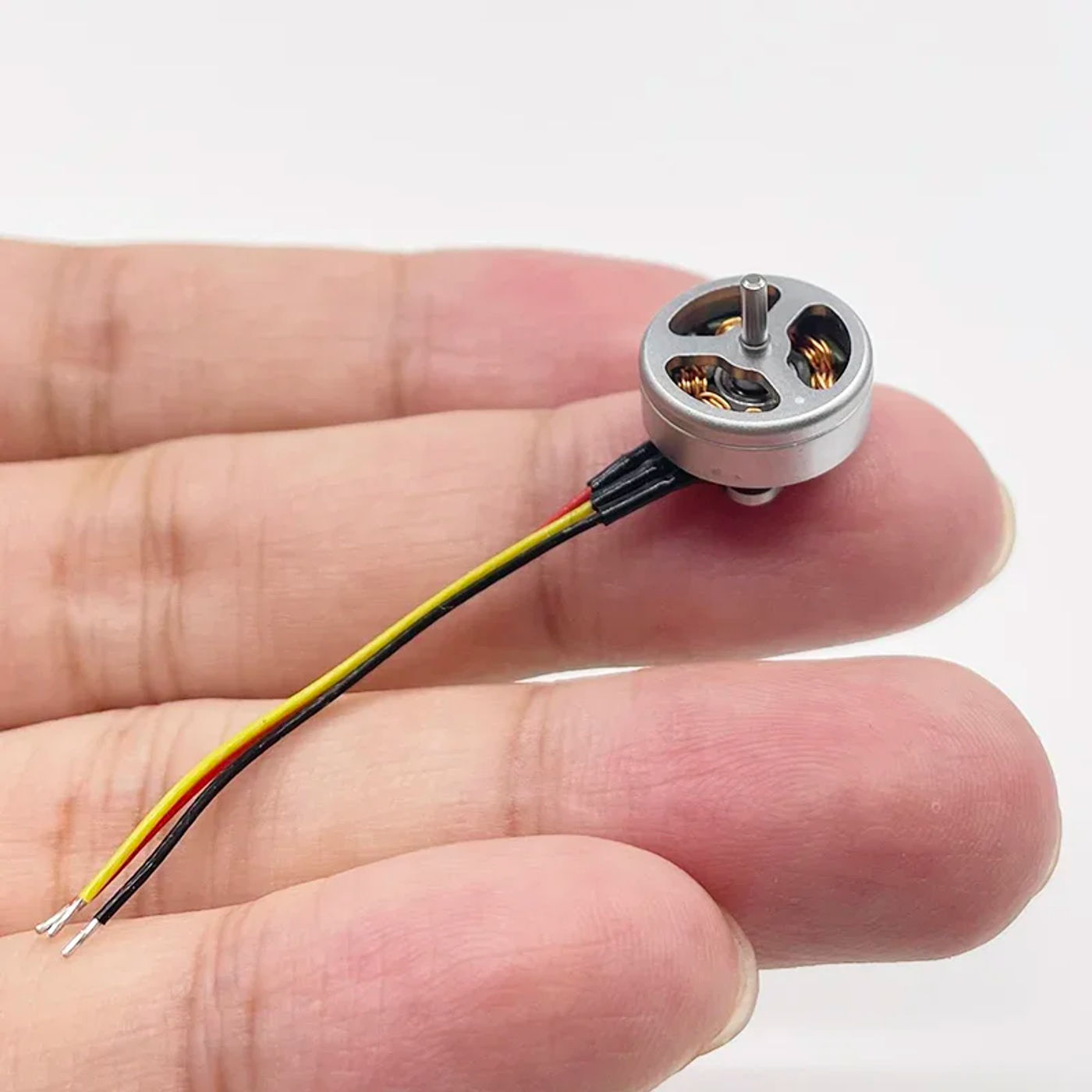

• Specifications: The 1103 high-speed aircraft model brushless motor, KV value is 15000, is commonly utilized in high-speed micro crossing aircraft, circle machines, and different plane models, or as a modification for micro constant wing aircraft items The high-speed outer rotor has dynamic steadiness correction, neodymium magnetic metal or arc-shaped high-efficiency magnetic tiles, a common shaft with a diameter of 1, and the fixed a part of the outer rotor is thickened with steps The motor is appropriate for operation in 1-2S lithium batteries, reckoning on the dimensions of the blade you tournament The commended blade size for 2S is GF1635-4/GF1610-2/GF1608-3, and it is suggested to install it the other way up The entrance installation may be a bit free For 1S, the recommended blade length is GF1636-4 Thrust verify information (GF1635-4 for blade), 1S voltage: 50% throttle 22g, 75% throttle 41g, one hundred pc throttle 50g 2S voltage: 25% throttle at 26g, 50% throttle at 54g, 75% throttle at 85g, one hundred pc throttle at over 100g Recommended racks: Mobula7 regular mount, ACK75 inverted mount, beta75pro, toothpick machine, and most commonly used three hole racks Generally, an electric regulator can use around 10A for 1 second, and 15-20A is suggested for two seconds Note that some brushless electrical regulators have deficient compatibility with ultra-high KV, can't circulate up or down at excessive speeds, or have light jitter The latest is abnormally wide and may directly heat up and burn the motor Pay attention to beginning small latest precise testing If the Blheli electrical regulator parameters are incorrect, they can be adjusted before use The whole size of the motor output line is set 40mm, and the motor weighs solely 3 grams Package: Motor x 1

•
•
•
•
•
