Beschreibung

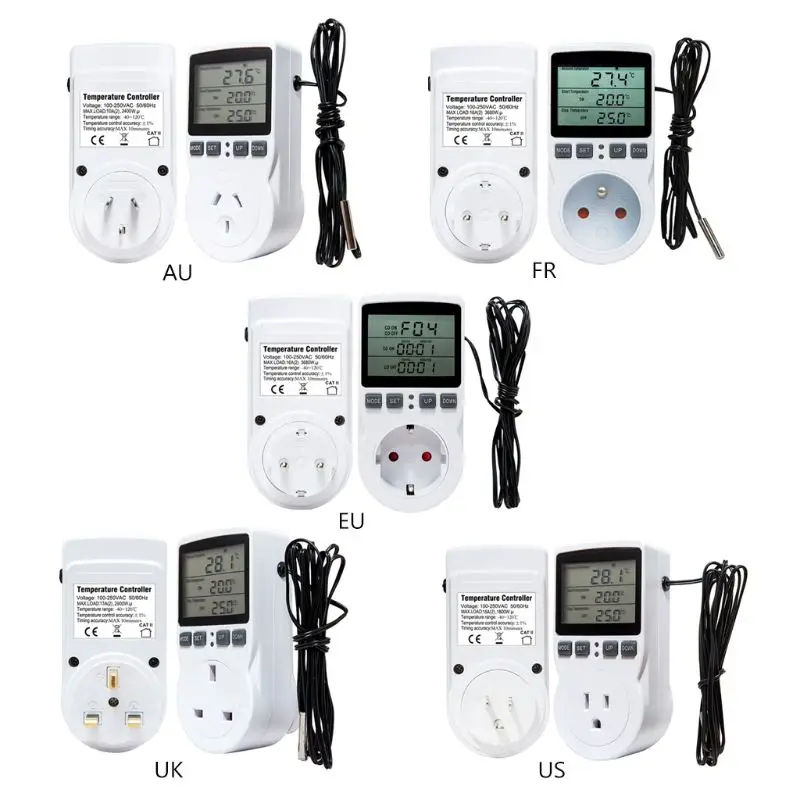

• 1. Function The external temperature detector can hit upon the temperature Set the beginning and forestall temperature Cycle timing, starting up and stop time, timer switch It is widely utilized in clever control, comparable to carbon heating, aquaculture,greenhouse, domestic existence and different places. 2. Technical parameters Voltage 110V~230V AC 50Hz/60Hz Max Load: 16A(2) 3680W , (15A for US type) Temperature Range: -40~120°C Accuracy: +/- 1% Timing Accuracy: MAX 10 minutes Temperature range: -40~120°C Open circuit (or lower than -40°C), the first row of the screen flashes exhibit ''E1'', -40~-45°C, demonstrate -40°C Short circuit( or greater than 120°C ), the first row of the display flashes displaty ''E2'', 121-129°C display 120°C Lower than -10°C, or more than 100°C, it's going to now not demonstrate price behind the decimal point Refrigeration mode, start temperature > Stop temperature Heating mode, initiating temperature < quit temperature 3. Mode button Press MODE. LCD display: temperature management mode Timing mode F01-F04 F01 Cycling timing mode, delivery time(ON)/stop time(OFF) cycling timing. F02 Count down ON mode, now Ti OFF, delayed(start time) ON F03 Count down OFF mode, now Ti ON, delayed(stop time) OFF, countdown completion, turn off the output and go out the run F04 Count down ON Count down OFF mode, now Ti OFF, delayed(start time) ON, After beginning not on time ( Stop time )OFF, Stop the time to complete the countdown, shut out the output and exit the operation four correction function Long press mode button on electricity, genuine time temperature calibration after 2 seconds Real time temperature correction range: -9~9°C Long press the SET for five seconds to automatically exit, don't save modification Long press MODE button to exit, save the cuttent correction modification 5 lock protection operate 6 the RESET to revive the visual display unit for one second, and repair the factory settings. 7 function after strength off eight Content: 1 x Thermostat Timer Socket with temperature sensor 1 x Box

•
•
•
•
•
