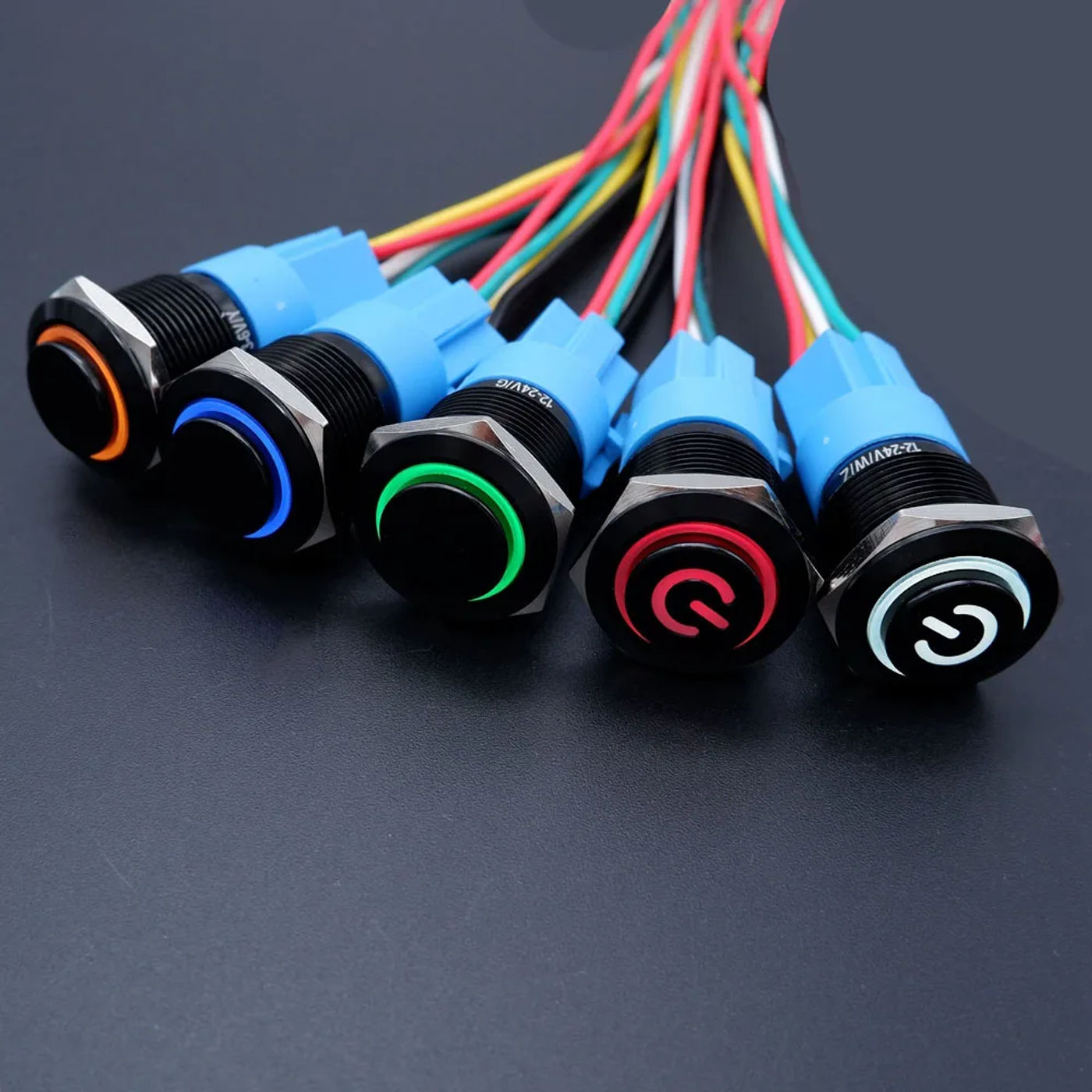

• Including: 20 pcs switches + 20 pcs connectors Switch type:metal swap button Hole diameter:16mm/19mm/22mm Led color:red/yellow/green/blue/white Shell color:Black Operation method:Momentary self-reset/Latching self-locking Led Voltage:3-6V/12-24V/110-220V Maximum current:3A Waterproof level:IP66 Contact type:1NO1NC Difference between Momentary self-reset and Latching self-locking: 1/Self-reset: When you press the button, press-key will routinely return(Like a vehicle horn switch it-power on, release it-power off) 2/Self-locking: When you press the button, press-key will live in position till you press again then the press-key return(Like a light change it-power on, press it again-power off) Manual measurement, there may be a little error Wiring Diagram(16/19/22mm) 1、The button turns the LED gentle on and off，the circuit is alway open until press the button 2、LED lighting are continually on，the circuit is alway open until press the button 3、 The button turns the LED gentle on and off，the circuit is alway shut until press the button 4、LED lighting fixtures are constantly on，the circuit is alway close except press the button

•
•
•
•
•
