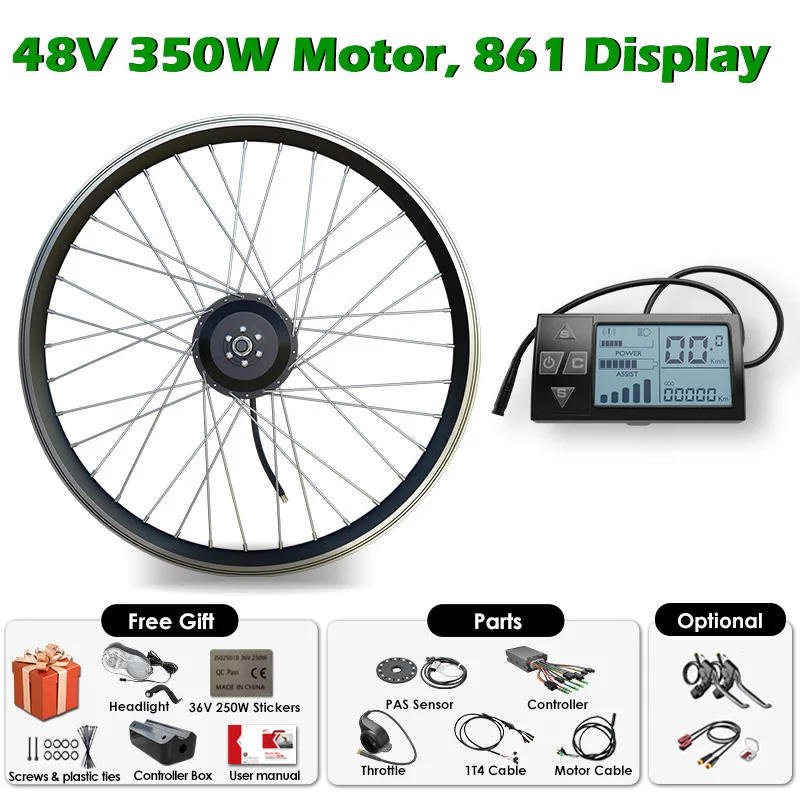

• FAQ: 1 How do I know if hub motor suits for my bike? This hub motor fits for the bike with entrance drop out length "100-105mm", and rear drop out size "135mm" fits for maximum 6/7 pace rotary flywheel (Fat motorcycle : entrance 135mm, rear 170/190mm) 2 Is my brake a hydraulic brake Should I favor the brake lever or the sensor line? If you've got a hydraulic brake, you would desire the brake sensor cable, which is simpler to put in three How to understand the rim is suitable for my tire? Re: Check the article description below, there has the info about rim 4 How to find the wheel size? Re: Choose in accordance with the size in your tires If you can't decide the size, you may take a photograph and ask customer support five My motorbike is 28 inch/29inch, which one may possibly I choose? Re: Mostly, you must want the 700C rim (inner diameter- 598mm, outer diameter- 652mm) But you Could send us the detailed specification of your tire for confirmation 6 Does the equipment encompass the battery? Re: No, this package would not consist of battery, if you'd like battery, please contact customer support 7 Is my brake a hydraulic brake Should I choose the brake lever or the sensor line? Re: If you have a hydraulic brake, you could choose the brake sensor cable, which is simpler to put in 8 What type of flywheel could be installed? Re: The motor is acceptable for thread freewheel, now not compatible for cassette If you need a motor suitable for cassette, please contact us Packing List: 1 PCS * Front/Rear Hub Motor Wheel 1 PCS * Motor Extension Cable 1 PCS * Controller 1 PCS * Controller Box or Bag 1 PCS * Display 1 PCS * Thumb/ Half twist/ Full twist Throttle 1 PCS * Waterproof 1T4 Cable Installation size requirements Motor Specification: 1 Full Speed: 36V/48V 250/350/500W about 25-40km/hour, 48V 1000W about 45-55km/h, 48V 2000W about 50-60km/h, (different wheel size, road&weather situation and rider's weight could have various speed) 2 Hub Motor:Brushless equipment Hub Motor for 36V/48V 250/350/500W Brushless Non-gear Hub Motor for 48V 1000W/2000W three Rim: Double-wall Aluminium Alloy Rim 4 Wheel Bottom bracket: Front 100-105mm, Rear 135mm five Torque: 30/33/45 for 250W 350W 500W 55-59NM for 1000W 63-65NM for 2000W 6 RPM:320/320/350 for 250W/350W/500W 433 for 48V 1000W 487 for 48V 2000W 7 The motor is suitable for thread freewheel, not suitable for cassette If you need a motor compatible for cassette, please touch us Fat bike hub motor specification: Rated Voltage ：48V Rated Power ：1000W Rated Speed ：about 45-50km/h RPM ：372-433 RPM Torque(N) ：59-60 N Brake Type ：Disc Brake Position : Rear Construction : Gear Operating Temperature(℃) : -20-45 IP Grade : IP65 Wheel Size (inch) : 20'' 26'' fats tire Tyre : Brushless Gearless hub motor Spokes Specification : 12G Rated Efficiency(%) : >=80 Wheel Bottom bracket: Front 135mm, Rear 170/190mm Noise(db): <55db Display: Functions of LED Display： Power change management (electric door lock function) Power exhibit Three-speed boost depth control Headlight switch management Automatic sleep when idle for 10 mins Functions of LCD861 Display： Function of Display Speed display, Assistance display, Battery indicator, Problems prompt, Mileage, Accumulative mileage, Cruise fixed speed, Braking , indicator, Headlight demonstrate Function of Control and Setting Power switch control --- Front light swap management --- 6Km/h inching management --- Real time cruise control Wheel diameter's atmosphere --- 5 mode assistance's setting --- Highest speed surroundings --- Automatic dormancy time environment Backlight brightness surroundings --- startup mode, drive mode is decided --- power sensitivity environment --- dynamical disk kind voltage grade setting --- controller set current restricting values Overview of SW900 Display： 1) UART protocol: Equipped with self sufficient press buttons 2) Speed：Real-time SPEED，MAX SPEED， Average SPEED 3) kmh/mile：Kmh/MPH in line with behavior 4) Battery level：Indicates the battery point in real time 5) Head mild control：Press button to energy on/off 6) Back light adjustment：3-level adjustment 7) Assist level：From zero to 5, press button to change assist level, 0-no assist, 5-default price 8) Distance：ODO/Trip/Driving length 9) Error code：Please confer with appendix desk 1 for definition 10) 6km mode：In this mode, it will show “WALK” on the display screen 11)Parameter setting：Set parameters, such as: wheel size, pace restrict etc W108 Display Controller Specification: 6 mosfet controller Fit for: 36V 250W motor wheel ，810LED/861LCD Display Rated current: 14A ,Max voltage protection: 29A±0 Size: 103*68*34mm 12 mosfet controller Fit for: 350W/500W, 36V/48V motor wheel，861LCD Display Rated current: 20A , Max voltage protection: 39A±0 Size: 103*68*34mm 18 mosfet controller Fit for: 48V 1000W motor wheel ，W108 Display Rated current: 28A , Max current: 41±1V Size: 144*52*30mm 18 mosfet controller Fit for: 48V 2000W motor wheel ，SW900 Display Rated current: 40A , Max current: 45±1V 12 mosfet controller Fit for: 48V 1000W fat bike motor wheel ，SW900 Display Rated current: 25A , Max current: 39±0 Throttle: Buyer Show:

•
•
•
•
•
