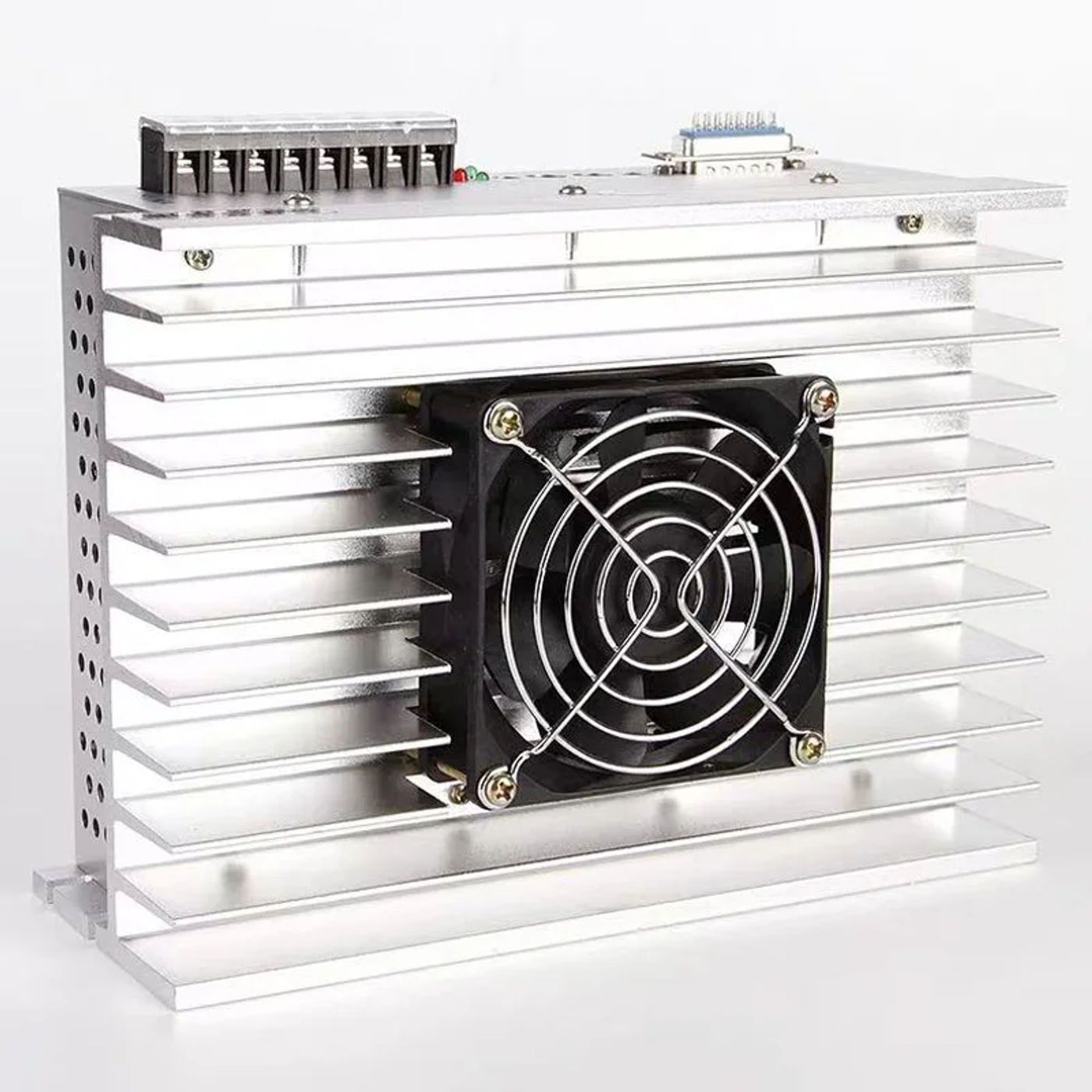

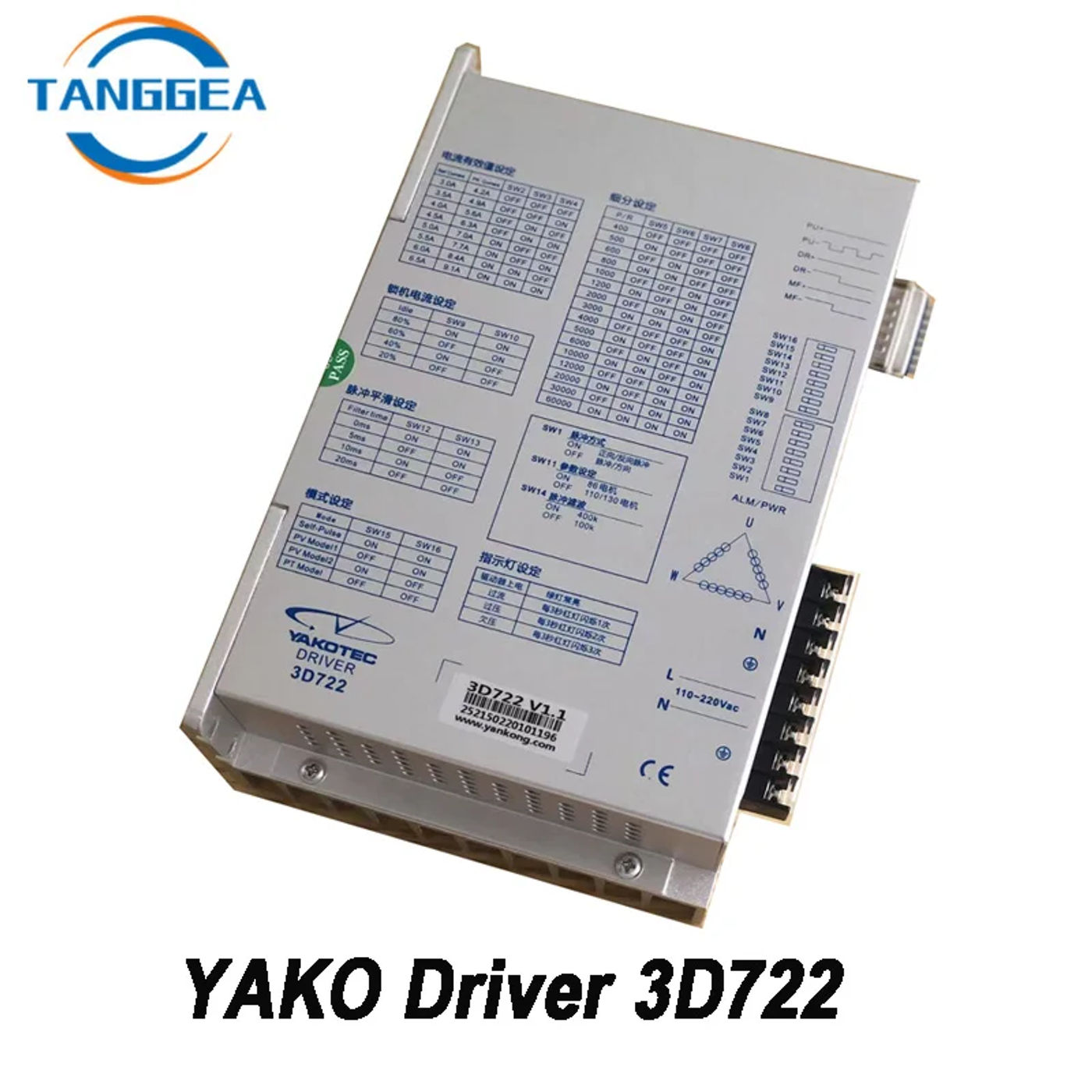

• YAKO 3 Phase Hybrid Stepper motive force YKC3722MA Description: l High performance, low noise with perfect balance and low cost l sixteen constant-torque microstep settings, 60,000 steps per round the easiest l Unique management circuit, effectively lowering noise and increasing rotation smoothness l 200Kpps response frequency l After step pulse stops for 100ms, output latest automatically replace to 20~80% (based on STOP/Im setting) l Bipolar constant latest wave chopping mode, improve motor velocity and tool l Photoelectric remoted signal input/output l Drive current adjustable from 0/phase to 7A/phase l Sole energy input, voltage range: AC110~220V l Fault protection: over current, overheat, low voltage defense l Small size: 200*156*90mm, 2 l Position reminiscence operate Typical Application: Mainly used in laser chopping machine, laser welding machine, laser marking machine, screw machine, medical equipment, robot, shelling out machine, electronic equipment and engraving machine YAKO 3 Phase Digital Stepper driver YKD3722M Features: 32-bit DSP control, low noise and advanced vibration functionality Excellent smoothness in low frequency microsteps 16 constant torque microstep, positioning accuracy as much as 60000 steps/rev Parameters would be set per the motor mannequin With pulse microstep function, the motor runs extra smoothly Pulse filter frequency could be chosen in step with speed and microstep Flexible matching of the heartbeat control side of the host pc Motor lock current is adjustable in 4 grades When the heartbeat stops over 400ms, the current is diminished to the lock recent The absolute best pulse reaction frequency is 400KHz With over voltage, beneath voltage and many others fault protection Voltage input range: AC110~220V, maximum tremendous recent 7 Volume 200*146*80 (mm³), weight 2 Suitable for 86-130mm(NEMA34-57) three part open-loop stepper motors Package:

•
•
•
•
•
