If you've got any questions, please touch my WP 86 17688978149 and we will quickly address your concerns
Output Power:15kw/20HP/20CV
Rated Frequency :50hz
Rated Current:55A
Output Frequency Range:0~650Hz

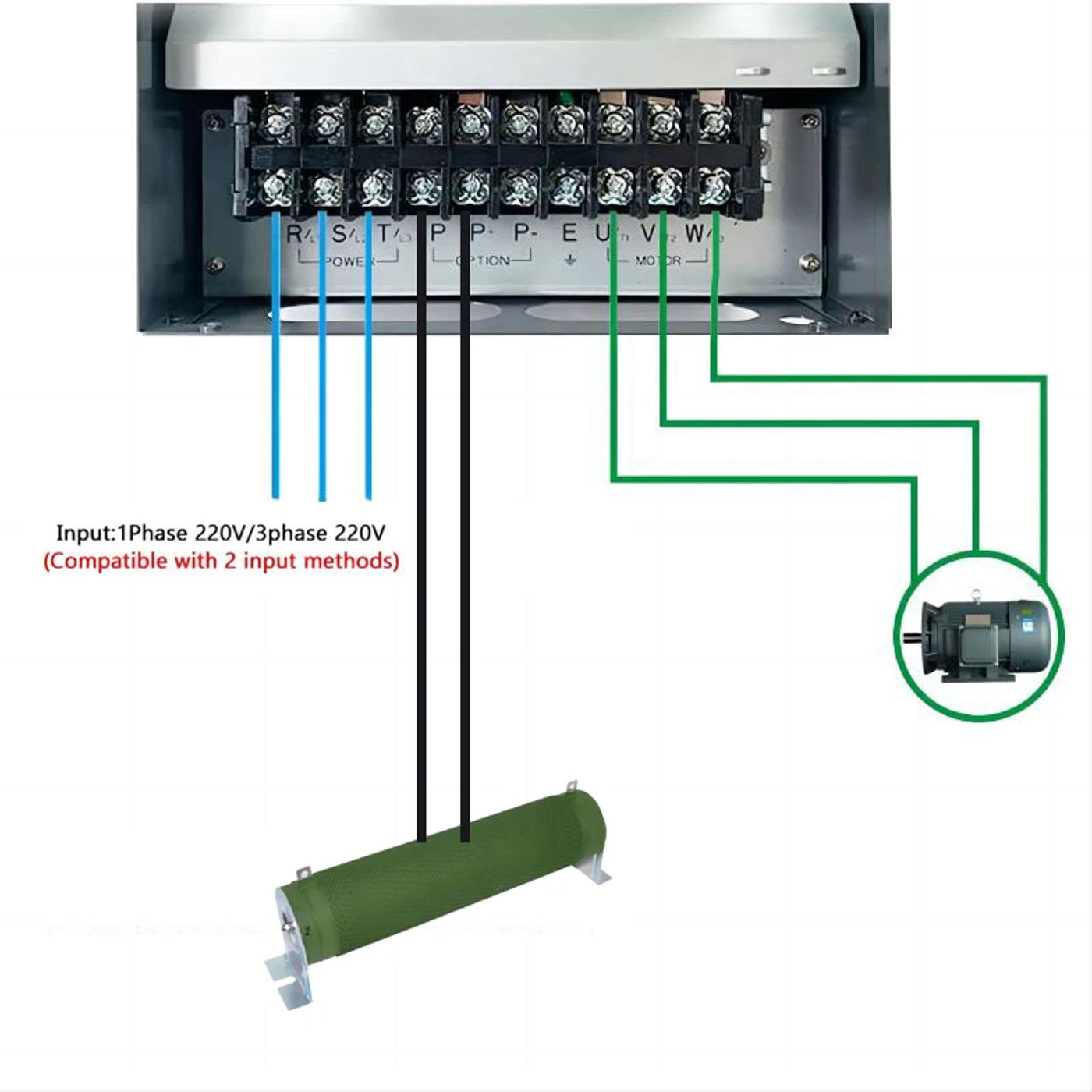

Input Voltage Range: 1 part 220V±15% /3 phase 220V±15%
Output Voltage Range:3 part 0-220V
Control way: Open loop vector control(SVC) V/F control
Starting Torque: G form machine:0/150%( SVC)
Basic Function: Speed tracking,PID control,auto speed compensation,AVR,Torque management control, multi-speed preference and so forth
Digital Display/Status ldicator: Display frequency,current ,forward/reverse,fault and many others
Main function: Control and adjust the rate of the ac motor
We have sophisticated engineers, medical generating workmanship and management crew with rigorous quality control programs , frequency inverter are geared up with stepped forward elements as below:
01 V/F control, vector management and output torque control;
02 Built-in RS-485 communique interface
03 Compact size, clean to install;
04 With a pace potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed management modest,Can run automatically;
07 Can preference a number of working commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay usually open or closed and two excessive configuration output have a hundred types of methods optional;
10 6 digital opto-isolated inputs, one hundred sorts of methods optional;
eleven three analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be extensively functions for many types of textile equipment;
13 Built-in user timer / counter;
14 Built-in PID legislation function to facilitate the realization of closed loop management of the temperature, stress and stress
15 At 0 speed time,can be obtain output 0-100% of Adjustable torque,With 0 velocity brake function,instead foreign inverter utility on freight elevator and crane
