Beschreibung

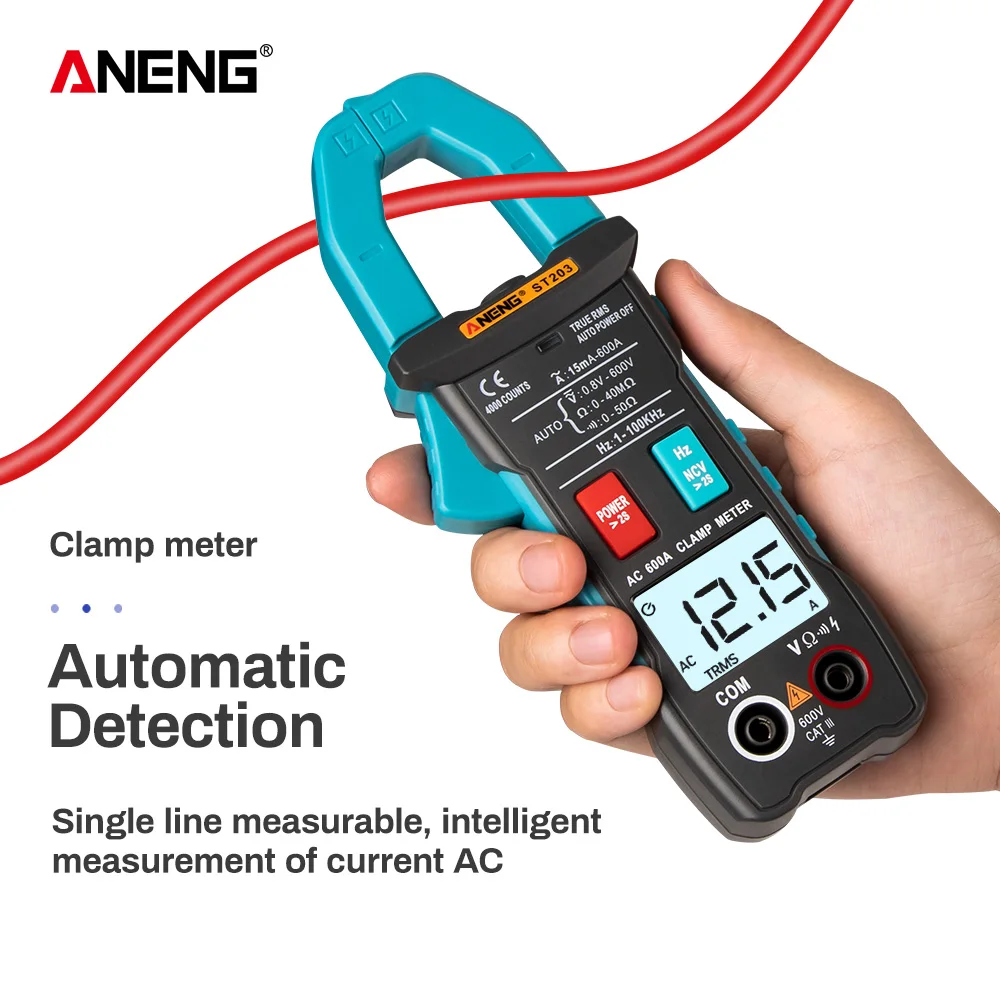

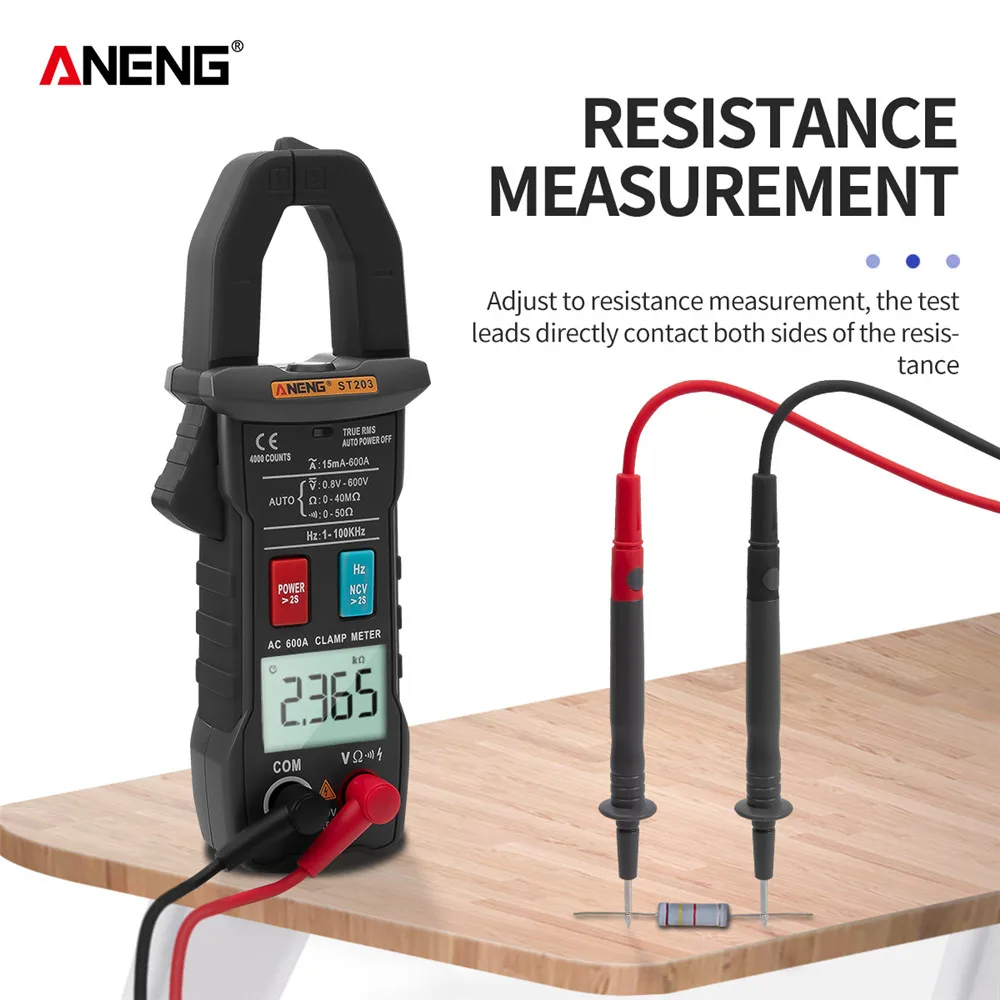

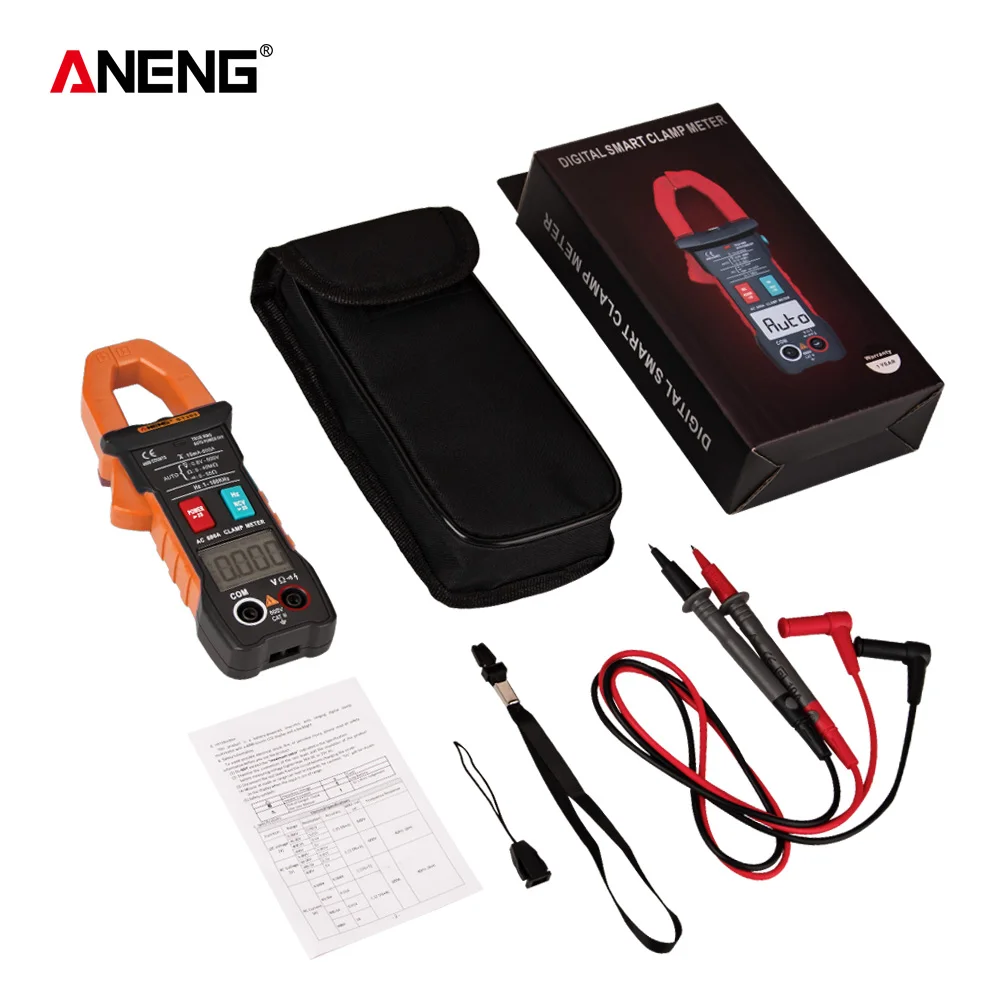

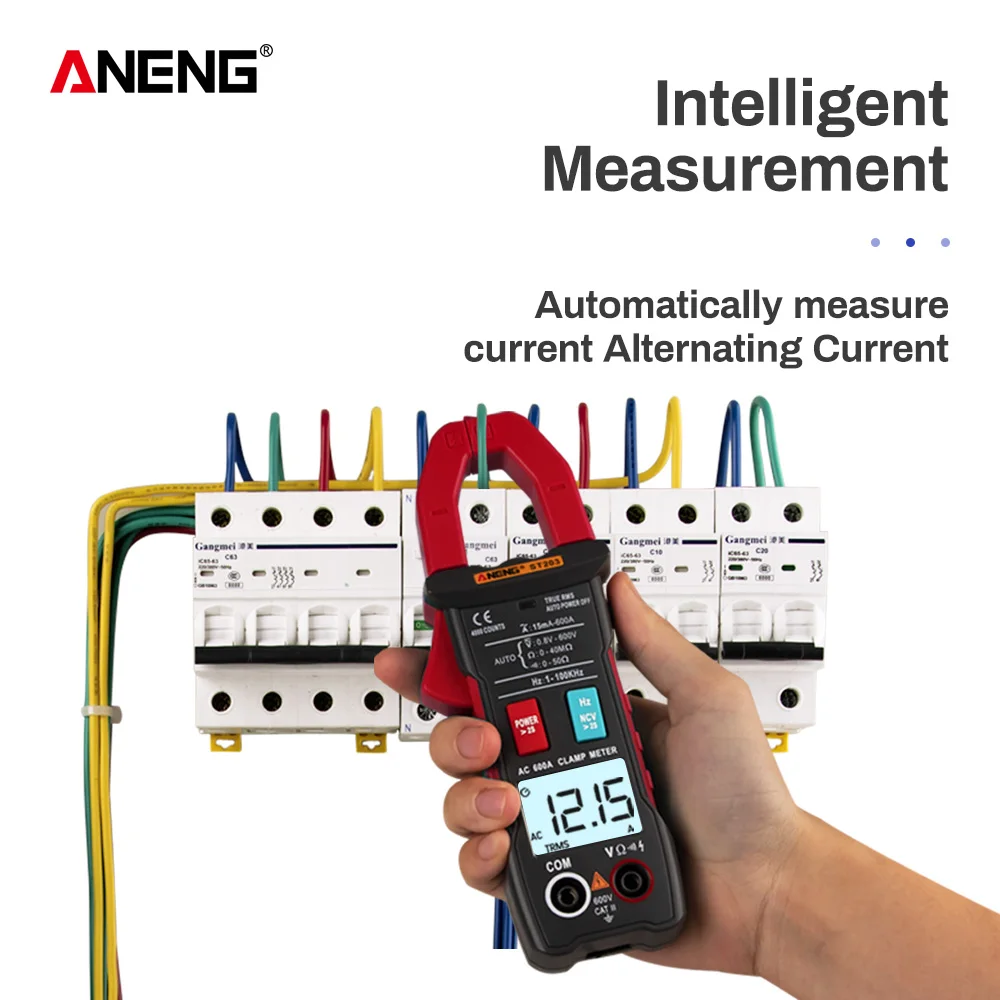

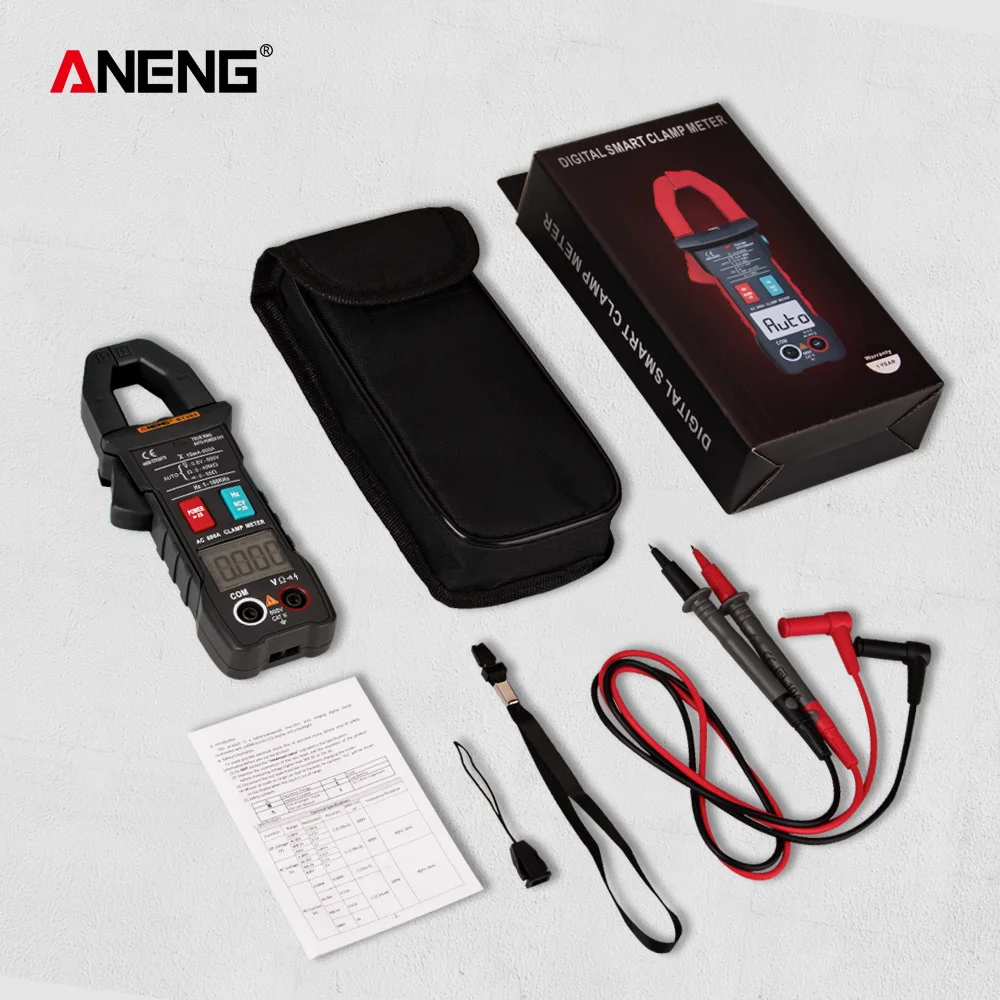

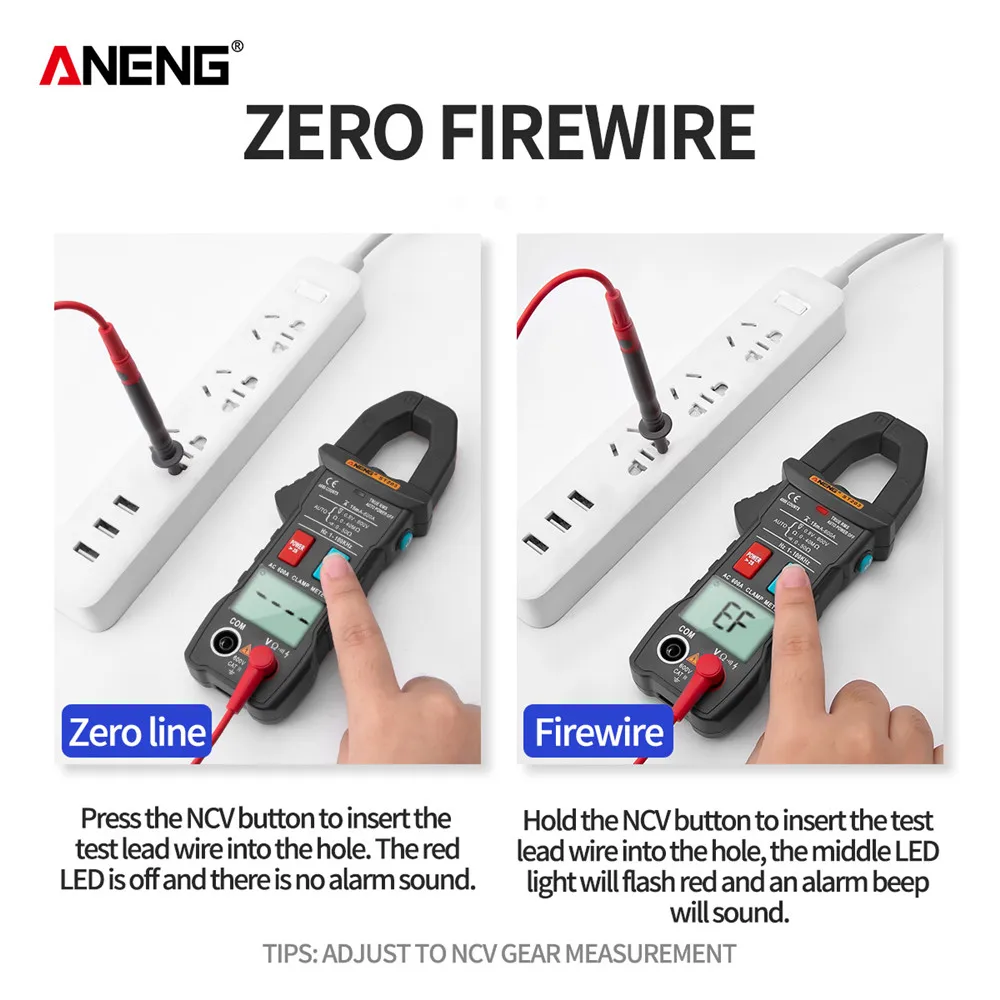

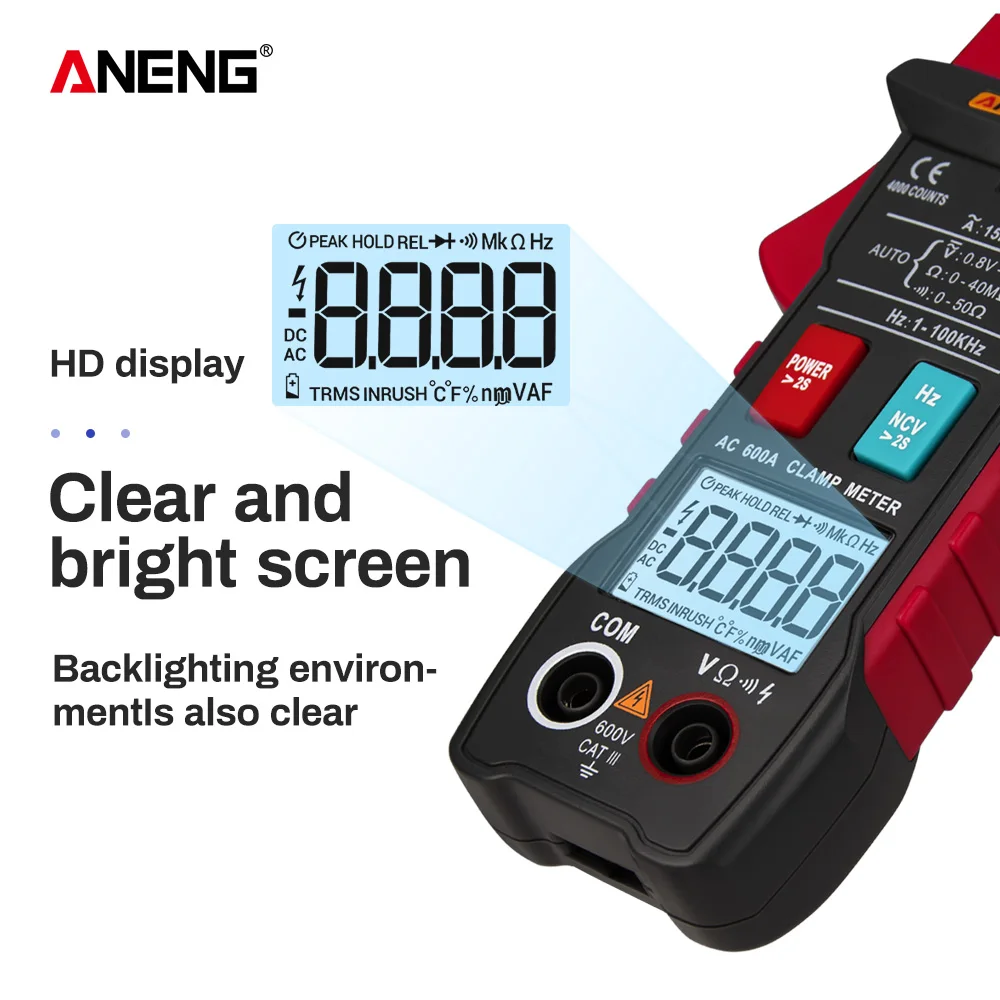

• ANENGST203 4000 counts Full Intelligent Multimeter Automatic Range Digital Current Ammeter Tester(AUTO) Feature1 Display: liquid crystal reveal (LCD);2 Maximum display: 4000 (3 3/4) bit automatic polarity display;3 Measurement method: double integral A/D conversion;4 Sampling rate: about three times in line with second;5 Over differ display: The highest function displays "OL";6 Low voltage display:symbol appears;7 Working environment:(0～40)°,relative humidity＜80%;8 Power: AAA 1 battery(Batteries excluded)9 Volume (size): 170×65×30mm (L×W×H);10 Weight:about160g(Batteries excluded 1 battery); Functional Parameter:HOLD :yesNCV :yesDC voltage DCV :yesAC voltage ACV :yesAC recent ACA :yesResistor / On-Off Test :yesFrequency F :yesZero line / Fire line test :yesFull unit image :yesBacklight manual/Auto off :yesTrue RMS size :yesFlashlight lighting :yes Technical Specification:DC voltage (DCV):4V-40V-400V-600V ±(0%+3)AC voltage (ACV): 4V-40V-400V-600V ±(1%+3)AC current(ACA):15mA-4A-40A-400A-600A ±(2%+8)Resistance: 4kΩ-40kΩ-400kΩ-4MΩ-40MΩ ±(0%+3)Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40kHz-400kHz- Package:1* instruction manual,1*outer packaging box,1*pair of test leads,1*Portable garage bag, Note: This sequence of instruments is designed based on IEC1010 (Safety Standards promulgated by the International Electrotechnical Commission), please learn the security precautions earlier than use When measuring voltage, please do not input the restrict voltage exceeding the effective value of DC 1000V or AC 750V;2 voltage under 2 is a safe voltage When measuring higher than 36V DC and 25V AC voltage, test whether the test leads are in reliable contact, are related correctly, and are nicely insulated to bypass electric shock;3 When replacing functions and ranges, the examine leads should leave the test level ANENG ST201 Digital Clamp Meter Multimeter 4000 Counts Clamp Ammeters Capacitor Tester Automotive Voltage Current Tester instruments Features: 1 This is a clamp multimeter,high reliability,high accuracy and portability 2 Multifunction: Can precisely measure AC/DC voltage current, resistance 3 With LCD backlight display,convenient to learn records in dark four More advantages: Manual range,data hold,diode test,continuity test 5 Widely use: It&;s an ideal software for the laboratory,factory and residential Specifications: Product Name: Clamp ammeters DC Voltage: 200mV-2V-20V-200V-600V AC Voltage: 200mV-2V-20V-200V-600V AC Current: 2A-20A-400A Measuring Capacitance Range: 40nF-400nf-4uF-40uF-400uF Resistance ohm: 200-2K-20K-200K-2M-20M Buzzer Function: Yes Max LCD display: Yes Data Hold Function: Yes Max Display: 4000 Counts Battery Type: 2 x 1 (AAA Battery) (Not Included) Color: Red,Blue Material: Plastic, Electronic Parts Package List: 1 x Clamp Digital Multimeter 1 x Test leads 1 x User Manual 1 x garage bag

•
•
•
•
•
