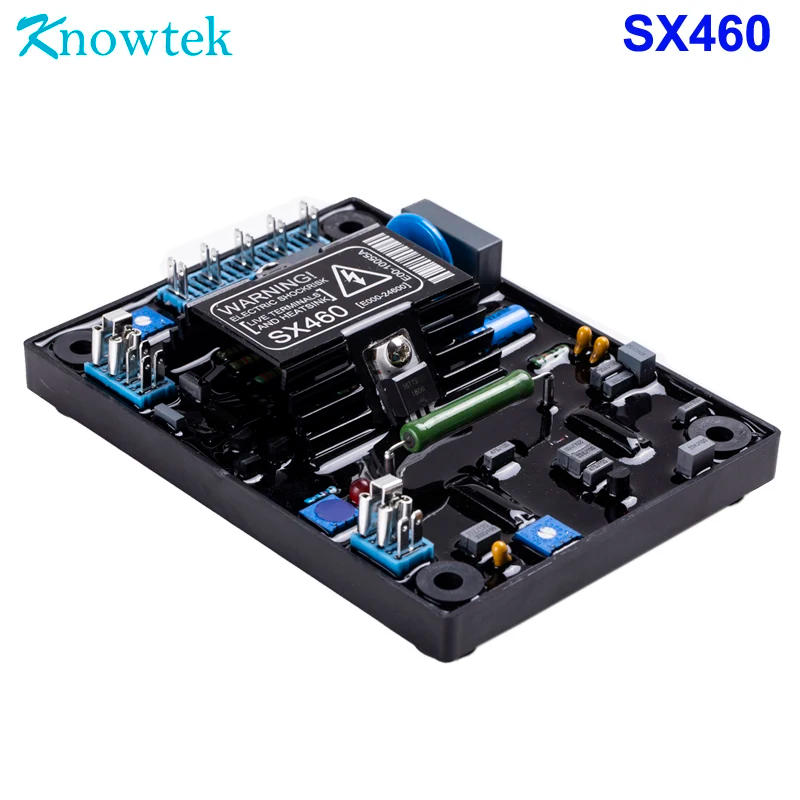

• SX460 is a half-wave phase-controlled thyristor sort Automatic Voltage Regulator(AVR) and forms a part of the excitation method for a brushless alternator AVR SX460 Automatic Voltage Regulator for Generator brushless alternator We have AVR SX460 in steady inventory Replacement Models:AS440, AS480, SX440, SX460, MX341, MX321, MX450 Original Modules: AS440, AS480, SX460, MX341, MX321, MX450, MX342, MX330, EBC-1, RSK1001, RSK2001, RSK5001, RSK6001 The Brands said listed here are for reference objective only, our elements can exactly update the unique ones SAME AVR AS: AVR E000-24602 VOLTAGE REGULATOR AVR E000-26000 VOLTAGE REGULATOR Newage AVR 450-13900 VOLTAGE REGULATOR Newage AVR E000-24600 VOLTAGE REGULATOR AVR 305-0982 VOLTAGE REGULATOR AVR 305-0949 VOLTAGE REGULATOR AVR 594-011 VOLTAGE REGULATOR AVR 594-011 VOLTAGE REGULATOR Newest 5000 watt ac automatic voltage regulator AVR SX460 Technical specification input voltage Jumper selectable 95-132V ac or190-264V ac frequency 50-60 Hz nominal phase 1 output voltage Max 90V dc at 207V ac input Current Continuous 4 A dc Intermittent 6A for 10 secs resistance 15 ohms minimal law +/- 1% (see note) Thermal flow 0% per deg change in AVR ambient (note 2) Typical components response AVR reaction 20 ms Filed latest to 90% 80 ms Machine volts to 97% 300ms External voltage adjustment +/- 10% with 1 ok ohm 1 watt trimmer(see observe 3) Under frequency protection Set level 95% Hz(see be aware 4 ) slope 170% all the way down to 30 Hz Unit energy dissipation 10 watts most Build up voltage 4 volts @ AVR terminals Environmental Vibration 20-100 Hz 50mm/sec a hundred Hz 2kHz three Operating temperature -40 to + 70c Relative humidity 0-70c 95% (see be aware 5) Storage temperature -55 to +80c Packaging Details Package of ac AVR SX460: polybag + carton field +manual Size of ac AVR SX460: 160mm*110mm*50mm 6*4*2 INCH Weight of ac AVR SX460: zero Shipment term 1 We Ship to Worldwide, besides APO/FPO 2 We ship to USA by way of Standard SpeedPAK or different typical delivery manner three Economic transport to international by china submit / ePaket Will take longer shipping time four Expedited overseas shipping by means of DHL/UPS/Fedex 5 Orders processed well timed after your payment 6 We solely deliver to confirmed order addresses Your order addressMUST MATCHyour tackle Why choose us ? 1 export since the yr of 2006,with quick reaction to serve the oversea prospects 2 already passed the stern high quality inspection of ISO9001:2000 high quality management method 3 R&D Team to design and check products 4 designers and technicians to produce technical assitance 5 quality control activity with strict criteria 6 installation consulting support 7 after-sale technical recommendation and steerage Guarantee 1 Guarantee:365 days after selled for faulty items (excluding goods damaged and/or misused after receipt) 2 During guarantee,the items proportion loose repairs or alternative three responsiblefor thefreight come-and-go,and the tradition tax 4 You may deliberate to ship the faulty merchandise with a economical way,and we send again the repaired items together with your new order collectively 5 Please repack the object carefully Items returned can be examined and a new replacement may be shipped to the customer directly when stumbled on defective In the event that a suitable alternative isn't accessible then a refund may be issued Shipping, handling and insurance prices are non refundable 6 Pls provide the defective look and connected invoice number 7 don't fix or update merchandise with an expired guarantee eight emails can be answered inside 1 business day If you don't acquire our reply, please kindly re-sent your email or give us a choice any time

•
