Beschreibung

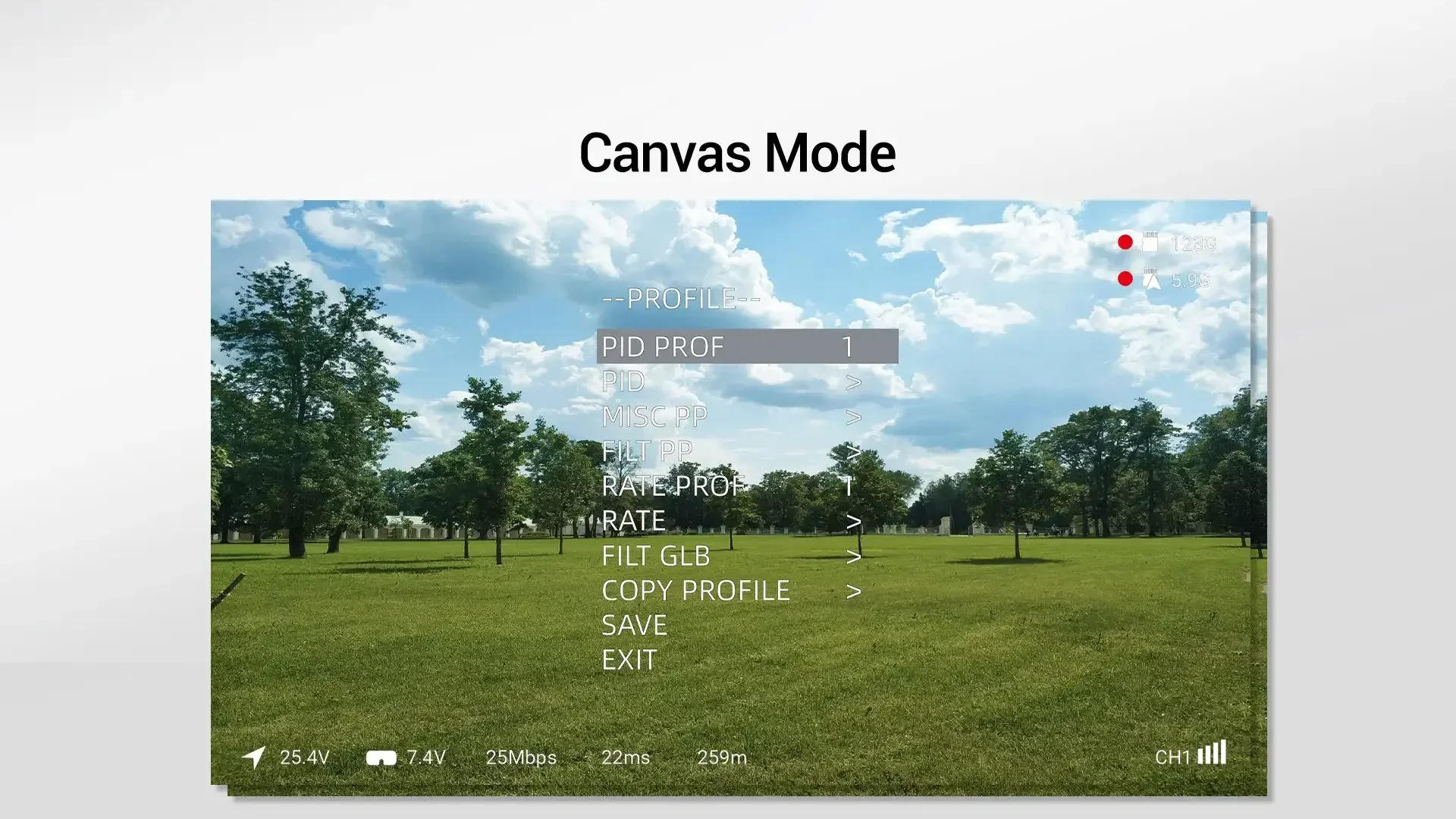

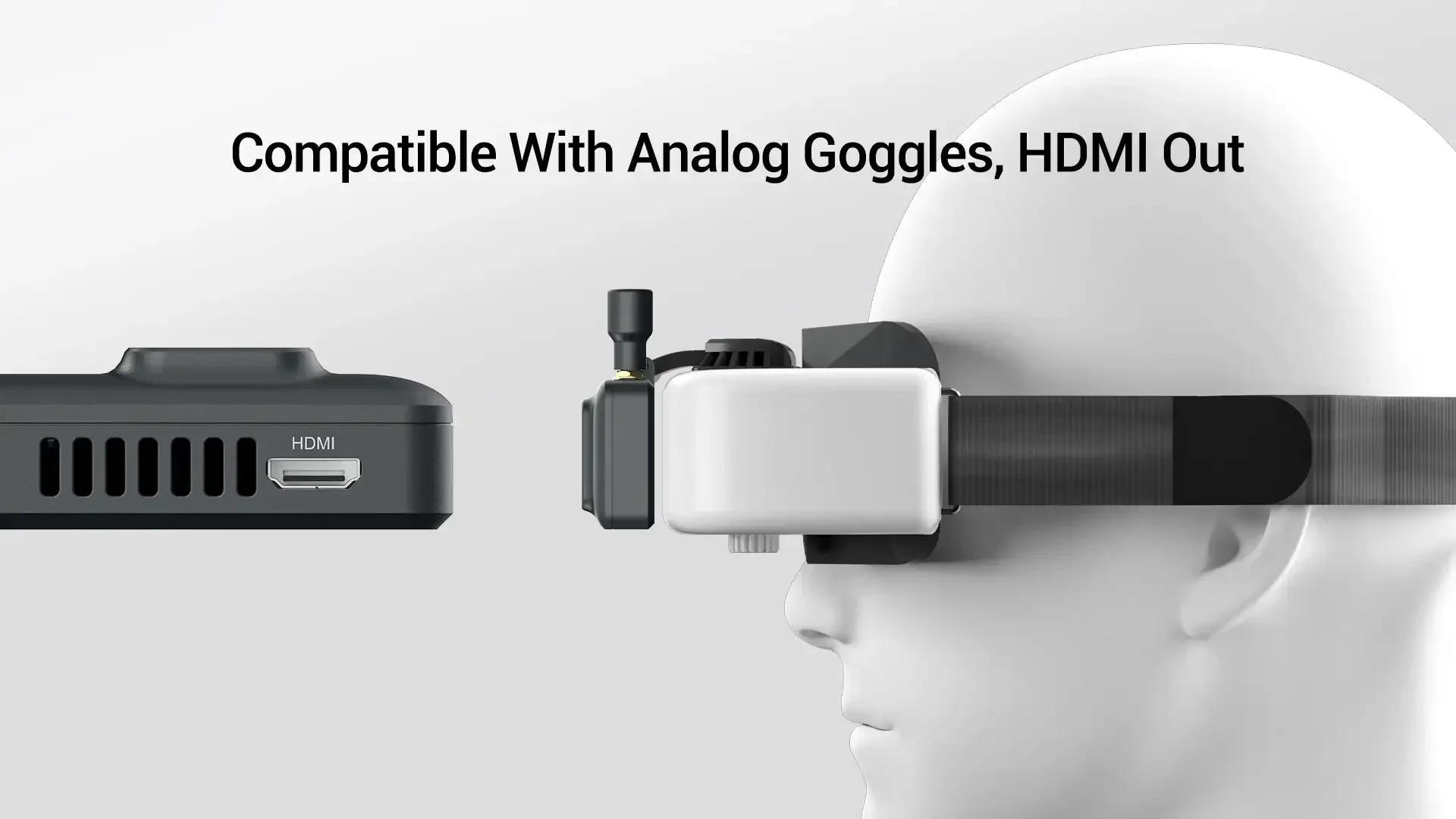

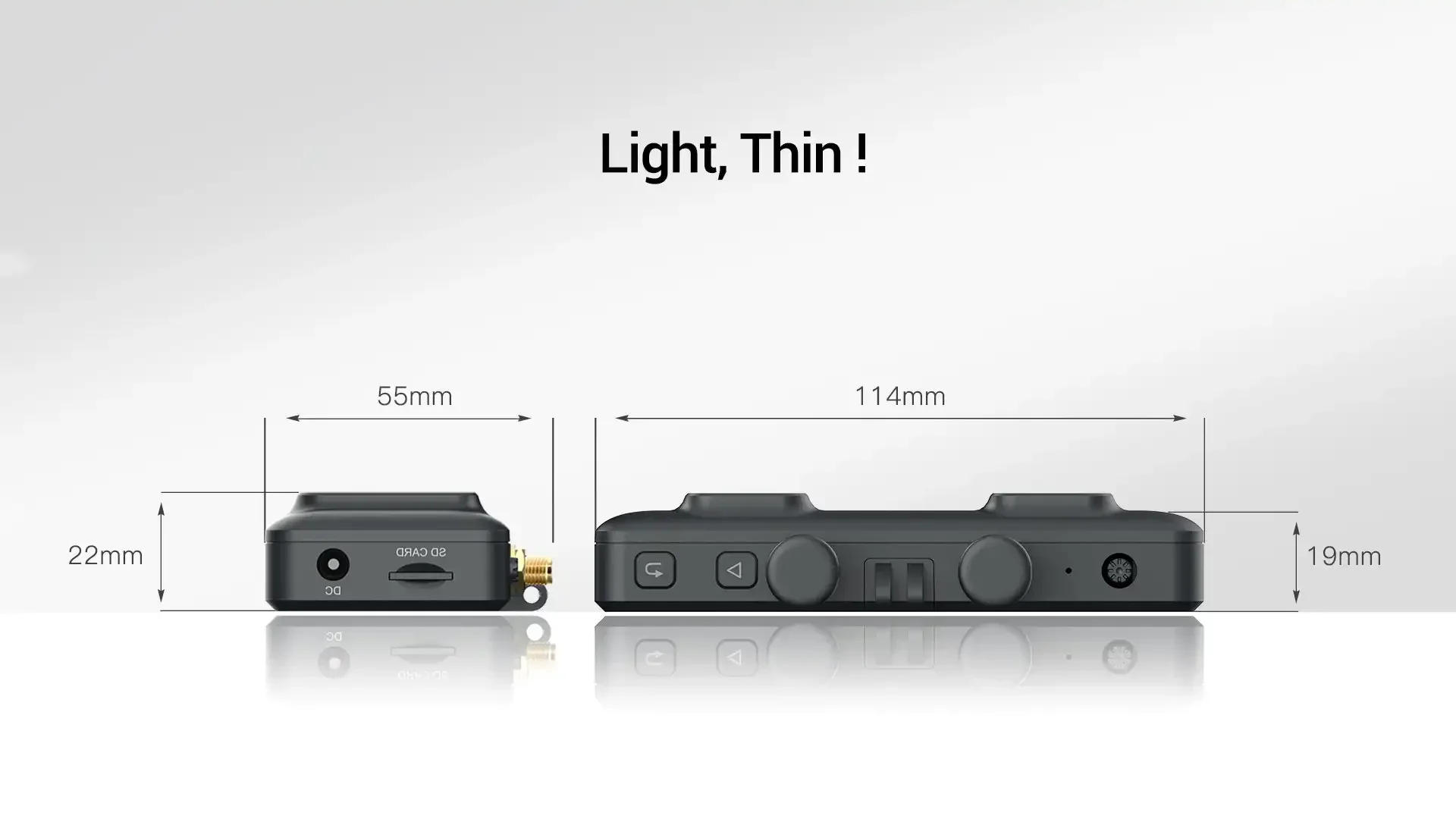

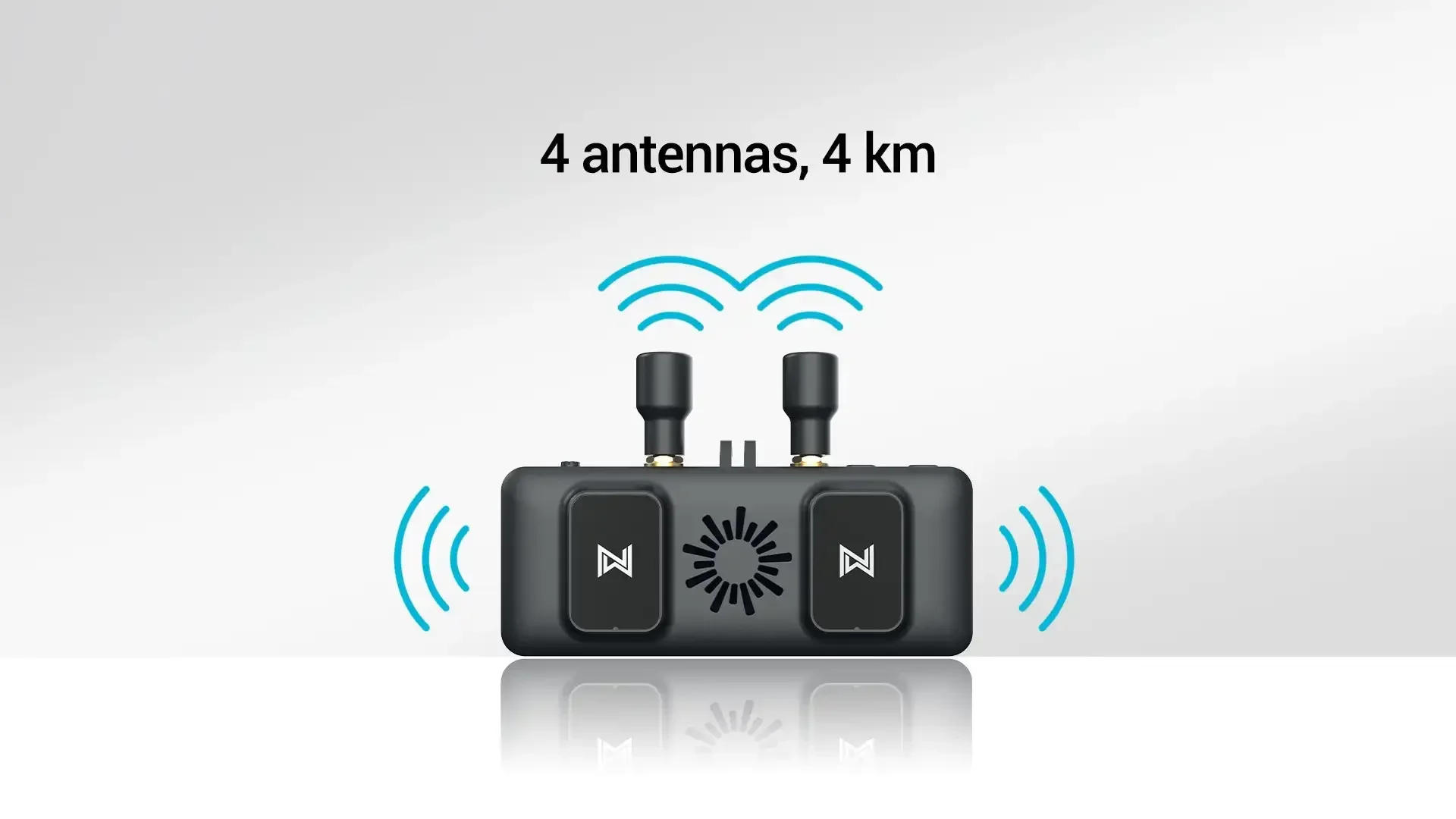

• Description: Specification Camera Model Avatar nano/Avatar camera Image Sensor 1/2"1nch Resolution 1080P/60fps,720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2 FOV 170° Aperture F2 Shutter Rolling shutter Min zero Weight 3/6g Dimensions 14*14*17mm/19*19*22mm Coaxial Cable 90mm/140mm VTX Model Avatar module Communication Frequency five Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm 1/O Interface JST1*6(Power in)JST1*4(USB) Mounting Holes 25*25 Dimensions 33*33*9 Storage 8G Recording 1080p/ Weight 16g Operating Temperature -20-40℃ Channels eight Wide Power Input 6V-25 Supported FC System Betaflight OSD Canvas mode Latency Average delay 22ms Antenna 2(IPEX) Goggles Antenna Model Red hen Polarization LHCP Bandwidth five Average Gain 1 Radiation Efficiency ≥97% VSWR ≤1 Cross-Polar Rejection -15to-30dB Connector RP-SMA Dimension H24*R15 Weight four Avatar HD VRX Model Avatar HD VRX CommunicationFrequency 5 TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm I/OInterface HDMI,microSDcardslot,DC5*2 HDMIOutput 1080p60fps,720p100fps,720p60fps PowerInput 7-21V(2S-5S) SDCard Support256G System AvatarHDsystem Q&A Q:Is VRX well suited with goggles from different products? A:Compatible With Analog Goggles,HDMI Out(Our VRX module supports HDMI OUT, If you goggles support HDMI IN it's going to work fine) Q:Do i need a set of goggles with a 1080p decision or an 720p is enough? A:VRX supports 720P\1080P Q:Avatar HD Micro equipment come with a 140mm cable between the VTX and camera? A: sure Q:does the Pre-sale unit fit 20x20 mount? A:Our vtx is 25*25 Q:the difference between all three of the walksnail kits? What is the Avatar 1s vs avatar hd micro vs avatar HD nano? A: mini 1s equipment 350mw, Power Input: 3, VTX Weight 6 avatar HD micro/nano package regular edition 1200mw, Power Input: 6V-25, VTX Weight: 16g Q:Micro/Nano Camera difference? A: Weight:3/6g Dimensions:14*14*17mm/19*19*22mm Coaxial Cable:90mm/140mm Q:hdmi type? A:mini hdmi Lightweight design, ultra-thin journey Walksnail VRX only 83g and is derived with 114*55*22mm size, easy to hold Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a most transmission distance of more than 4km 1080P/60FPS Walksnail VRX adopts industry-leading H encoding technology, which may present a minimal delay of 22ms and a maximum decision of 1080p The HD photograph quality takes you to experience the thrill of flying a drone HDMI output make sure you to enjoy uncompressed audio and video signals from the Walksnail HD formula Canvas Mode Supports betaflight complete OSD display,supports betaflight, inav, kiss complete osd exhibit you may easily alter the parameters you like by handheld remote control

•
•
•
•
•
