Beschreibung

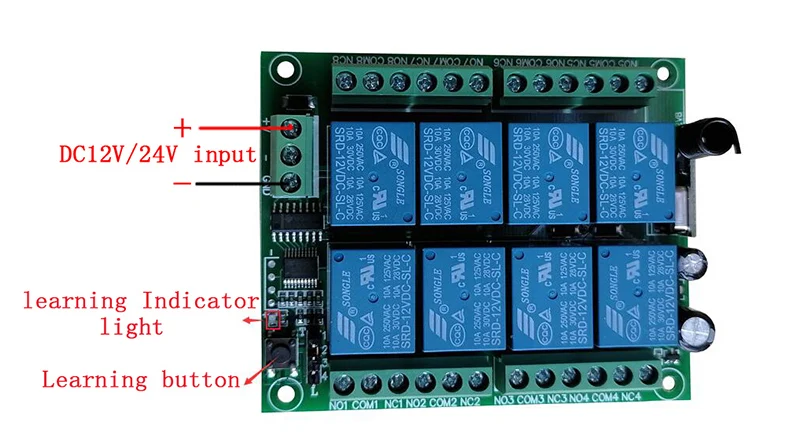

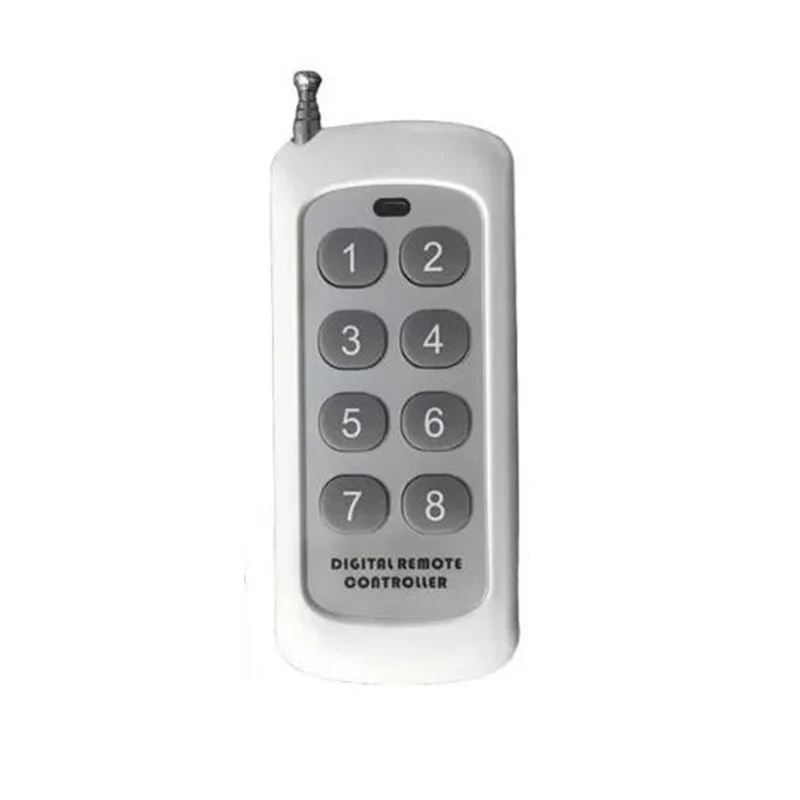

• Receiver Decode: Learning Code Control Type: Toggle, Momentary, Latched Power Supply (Operating Voltage): DC 12V / 24V Relay: 10A 250VAC 10A 125VAC 10A 30VDC 10A28VDC Work Voltage Range of Relay: DC 0-28V State current: ≤6 mA Sensitivity:-105 dBm Operating Temperature:-40‘C - 80’C Size:87 X seventy seven X 26 mm Transmitter Channel: eight CH Remote Control Distance:10-500 M ( Ideal Distance with none block and signal intervene , it would upward push and fall about 10%-90% with the block and signal interference) Encode: PT2262 Frequency:315 or 433 MHz Size:102mm x 39mm x 13mm Power Supply: 1 X 12V/23A Battery three (Original Setting is Momentary , Change it via yourself) 1)/Self-lock :Press 1 button==>on,press the same button again==>off 2) Momentary/Jog:Press and hold==> on, release==>off 3)Latched/inter-lock:press 1 button ==>on,press different button==>off 4 Code and Learn Code 1) Learn press the learning button 1 time,the learning LED turns on,then press the transmitter key to learn studying led flashs and turns off means study sucessfully 2) Clear press the training button for five seconds,the studying LED flashs and turns off, meaning the code has been cleared pacote inclued: A: 1x Transmitter(with battery) B: 1x Receiver(with cover) C: 1 x Receiver(with cover) 1x Transmitter(with battery)

•
•
•
•
•
