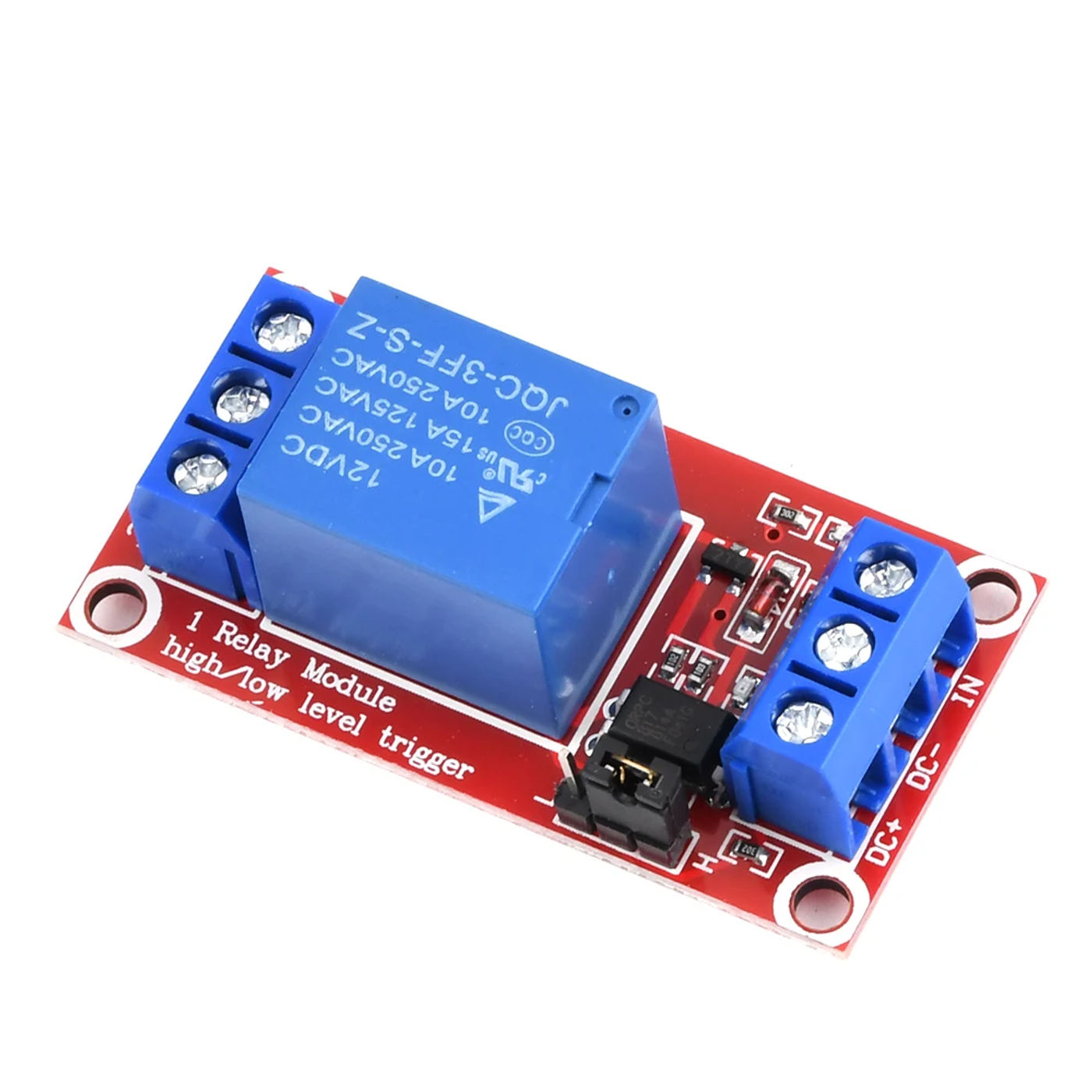

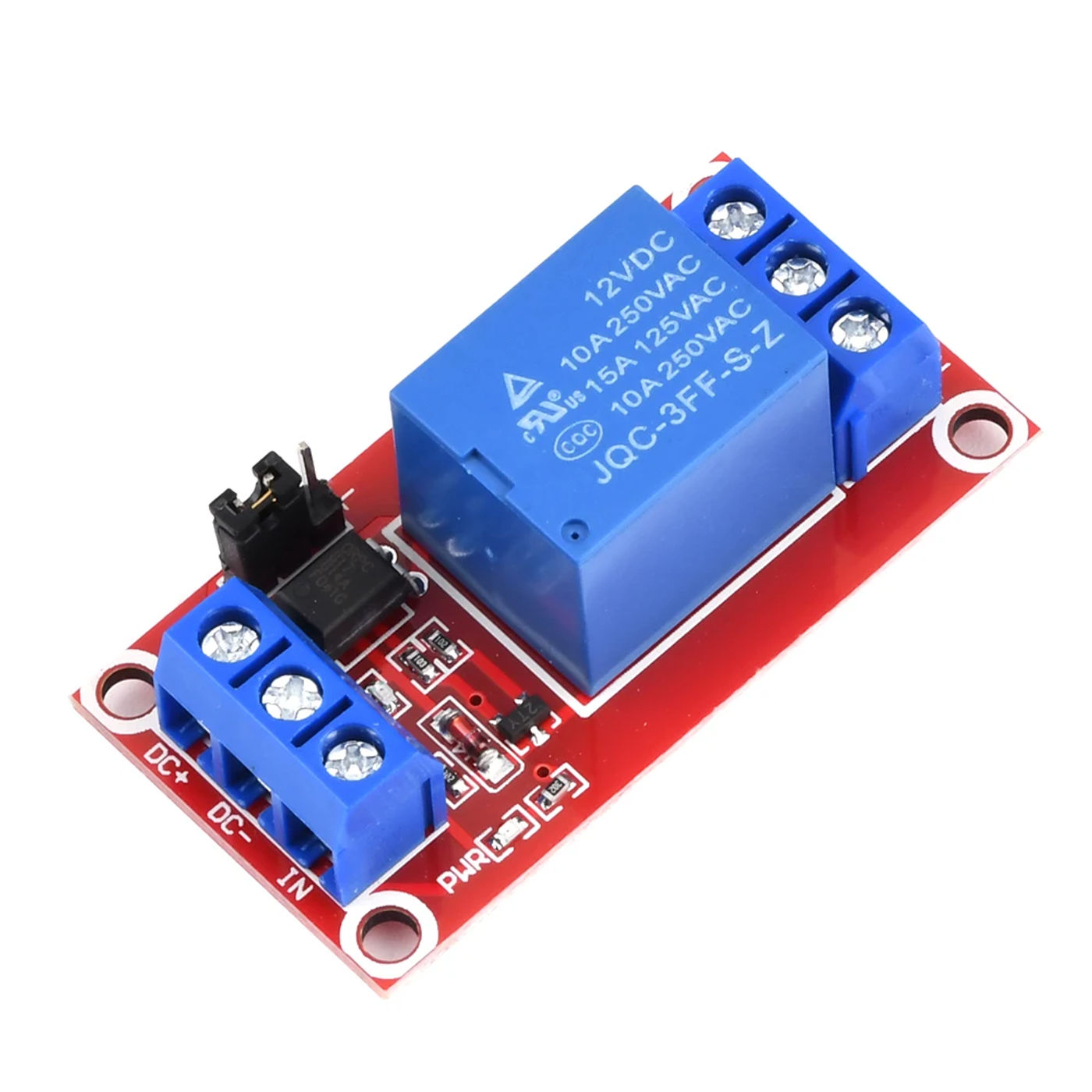

• Module description:1 the module makes use of real quality relay, usually open interfaces Maximum load: AC 250V/10A, DC 30V/10A;2 using SMD optocoupler isolation, driving ability, secure performance; set off recent 5mA;3 the module Operating voltage 5V 9V 12V 24V ;4 the module would be excessive or low by way of a jumper atmosphere trigger;5 fault-tolerant design, even if the management line is broken, the relay will not operate;6 the power indicator (green), the relay popularity indicator (red)7 the interface design of human nature, all interfaces are available in via a direct connection terminal leads, very convenient8 module size: 50mm*26mm*18 (L*W*H) Module interface:1 DC+: fine energy supply (VCC)2 DC-: damaging power delivery (GND)3 IN: could be excessive or low level control relay Relay outputs:1 NO: usually open relay interface2 COM: Common Interface Relays3 NC: usually closed relay interface High and coffee point set off options:It is low level trigger when jumper connect with LOW pinIt is excessive point trigger when jumper hook up with HIGH pin Package included:1 x DC 5V 12V 24V One 1 Channel Relay Module Board Shield with Optocoupler Support High and Low Level Trigger

•
•
•
•
•
