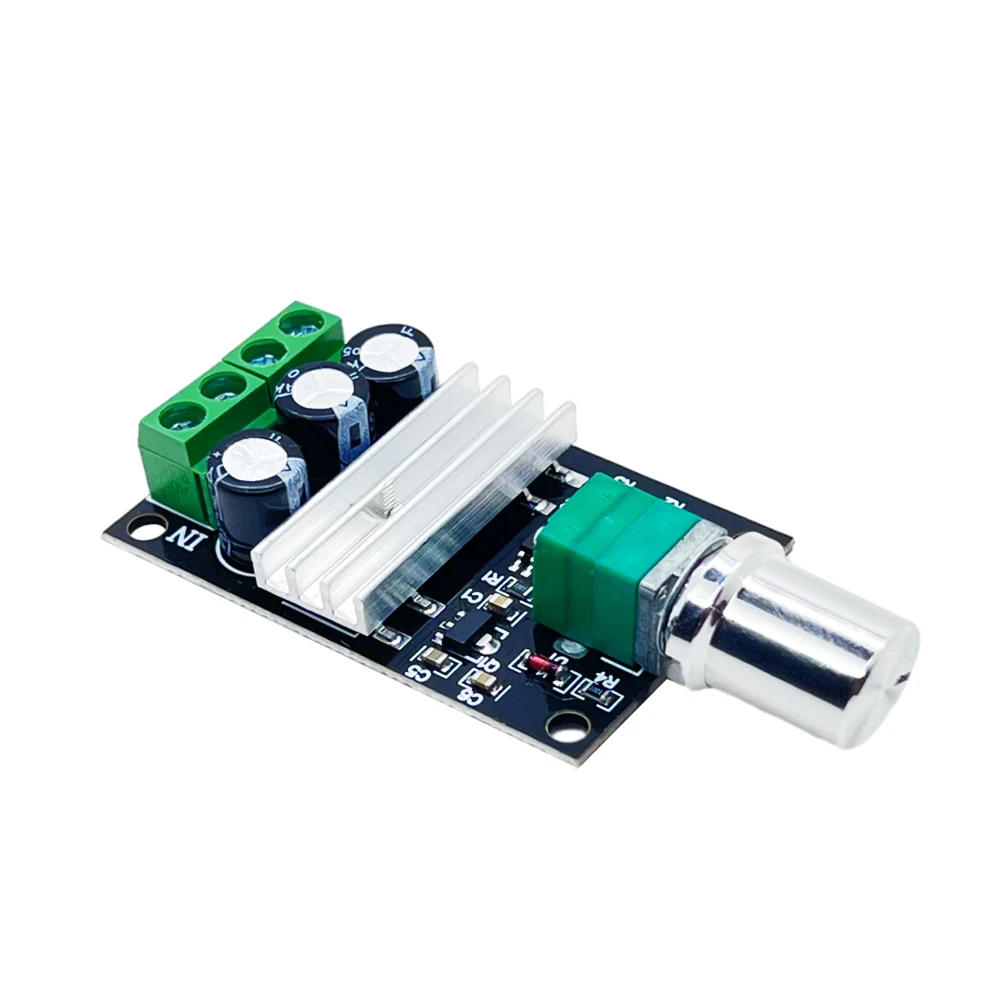

• This DC Motor Speed Controller permits controlling the path of a DC motor using a Pulse-- Width-Modulated (PWM) DC voltage with a Duty Cycle completely adjustable from 0%-100% The motor velocity controller can easily present a continuous current of3A on your DC motor or different DC load Main technical parameters: Input supply voltage:6V-28VDC The most output power: 80W The most continuous output latest :3A Duty Cycle adjustable:5%-100% Size: 5cm*3 (L*W) Operating instruction: Before you trying to wire the controller, ensure strength is off WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS WILL DAMAGE THE CONTROLLER TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR 1 Connect wires consult with the “wiring diagram” (NO picture) 2 Turn on the power, and adjust the potentiometer 2 The LED indicates the power up and the speed of motor

•
•
•
•
•
