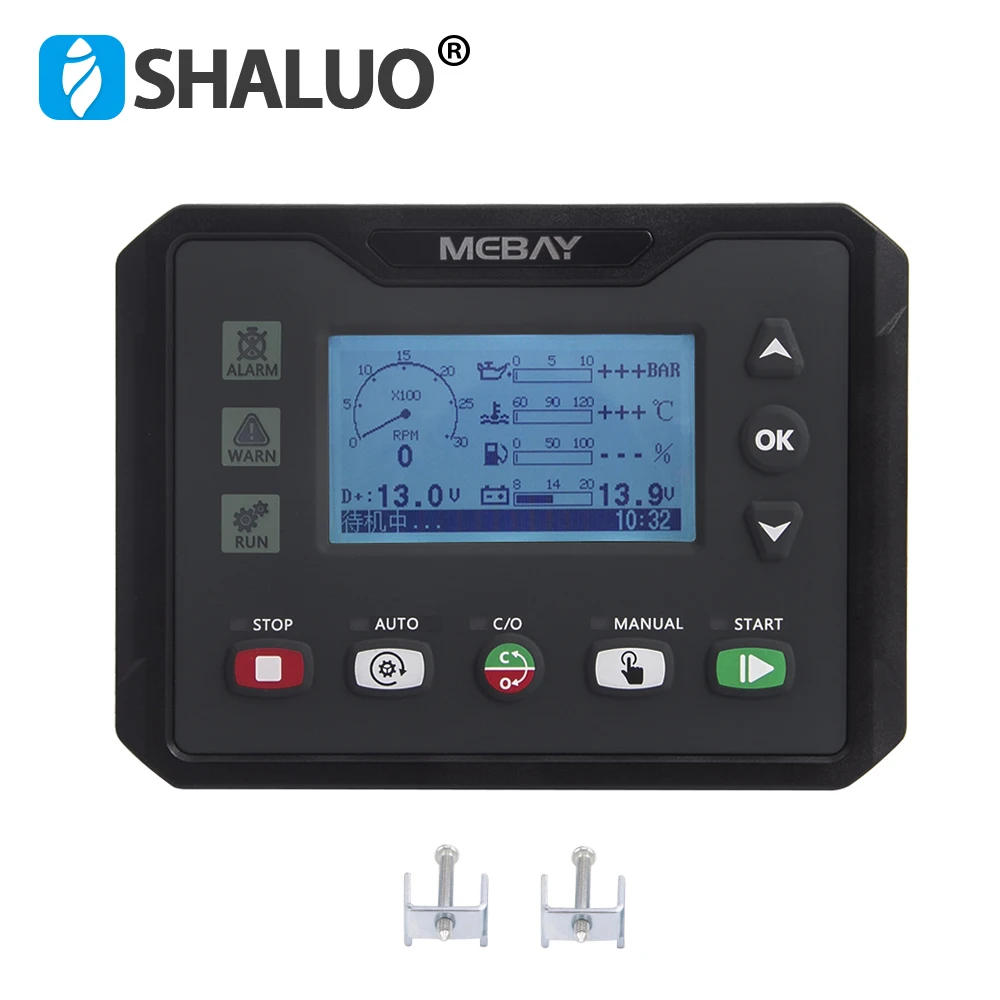

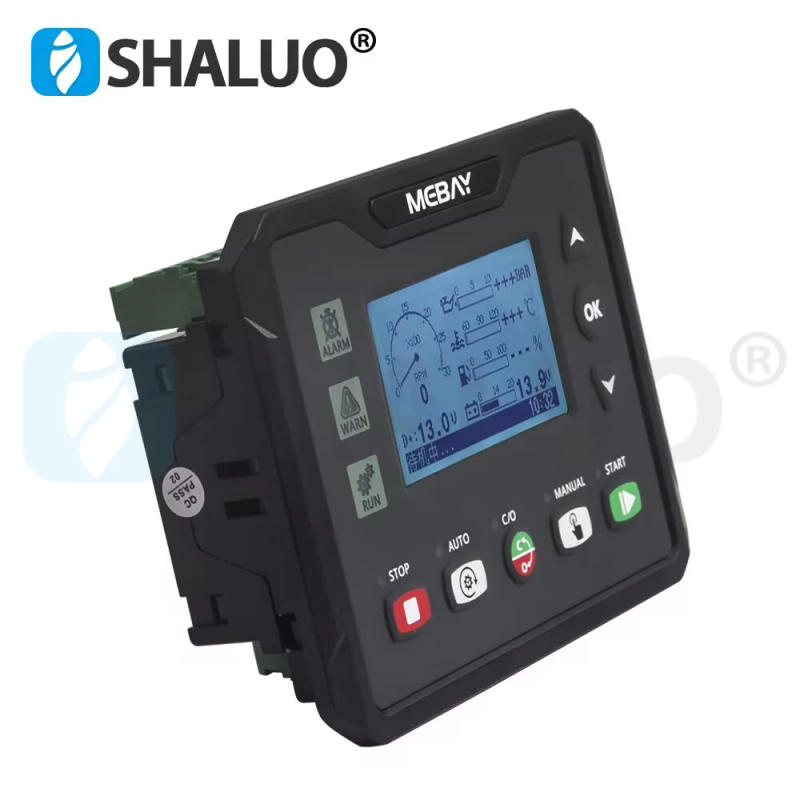

• 1 SummaryThis series controller is really expert for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking in addition records atmosphere 2 inch LCD display display with fresh UI design is adapted in this controller that the relative mess ups can be displayed immediately All the parameters could be displayed by simulated signals and words Besides, LCD screen can display varied faults within the same time that the genset will be stopped as soon as it can’t work easily are Chinese/English interface options, more language could be set per user’s request All the parameters would be configured through the entrance face buttons or use programmable interface by RS485 or USB to adjust by way of PC It would be extensively utilized for all types of auto control formula of gensets Main FeaturesThere are ten Models under DC4xS/C series: Used for single machine automation Start/Stop via distant start signal: Based on DC40S, it provides RS485 port DC42S: Based on DC40S, it adds Mains tracking and AMF (Mains/Generator automated switching control), particularly compatible for the automation formula composed by means of mains and genset: Based on DC42S, it adds RS485 port  Dual core 32bit excessive performance single chip microcomputer  2 inch 240 * 128 high-resolution LCD screen, Available in 6 languages, user’s language set if essential  Indicator and quantity show via UI floor  Acrylic materials is adapted to protect the display screen  Silicone panels;  USB Port: parameters could be set even without energy by way of USB port to monitor in real time  With RS485 conversation port, can obtain “Three Remote” applications via MODBUS protocol  Standard CAN verbal exchange port, integrated J1939 protocol, has matched greater than forty kinds of engines;  Various types of parameters reveal DC4xS/C GENSET CONTROLLER USER MANUAL  Input/output function, reputation would be shown directly  Real time clock inside: preset time function and auto upkeep is out there Genset operating plan would be set as a week or month  Maintenance countdown function, can set maintenance time or date  The black field operate can save the relevant parameters of the unit when the fault alarm happens in genuine time, and it is handy to find the cause of the fault  Totally 6relay’s output, among which four relay output would be self-configurable, each relay would be set as max 20 applications  With 4 switches input, as much as 20 applications optional;  three sensor simulation enter connectors, the oil pressure sensor is well matched with voltage signal input, and various exhibit models can be configured  Battery charging management function,which can protect the battery according to battery voltage reputation  Sensor would be self-defined by way of entrance face button or PC utility  Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)  Various of crank situations (RPM, Frequency, Oil Pressure) would be chosen  Control Protection: Auto Start/Stop of genset, load move (ATS control) and excellent failure display and defense  Standard waterproof rubber gasket The water resistant can attain IP54  Module design: All the connections are adapted with European connectors in order that installation, connection, repair and substitute can be extra smoothly three Parameters Display  Engine RPM  Engine oil pressure  Engine temperature  Engine gas level  Engine battery voltage  Charging voltage  CAN connected parameters(C series only)  Mains Frequency (only for DC42S/C)  Mains section voltage L-N (only for DC42S/C)  Mains section voltage L-L (only for DC42S/C)  Generator 3 Phase voltage L-N  Generator three Phase voltage L-L  Generator 3 phase current A  Generator Frequency Hz  Generator Power Factor COS φ  Generator active strength KW  Generator apparent energy KVA  Generator reactive strength KVar  Real-time load rate percent  Current load price %  Average loading charge %  Current intake KWH Total consumption KWH  Total Crank occasions  Cumulative strength on time of controller  Current working time  Total operating time  Maintenance observe  Switches input repute exhibit  Output repute demonstrate of relays  Current date and time; four Protection  Over speed  Under speed  Low oil stress  High temperature  Low gasoline point  External emergency alarm  D+ open  RPM Lost Sensor Open  Over Frequency  Under Frequency  Over voltage  Under voltage  Over latest  Non-balance of current  Over strength  Maintenance expire  Low water level alarm  Emergency Stop  Crank failure  Battery over voltage  Battery beneath voltage  The charger fails to price  Charger charging failure  Stop Failure  ECU alarm failure  ECU communique Failure

•
•
•
•
•
