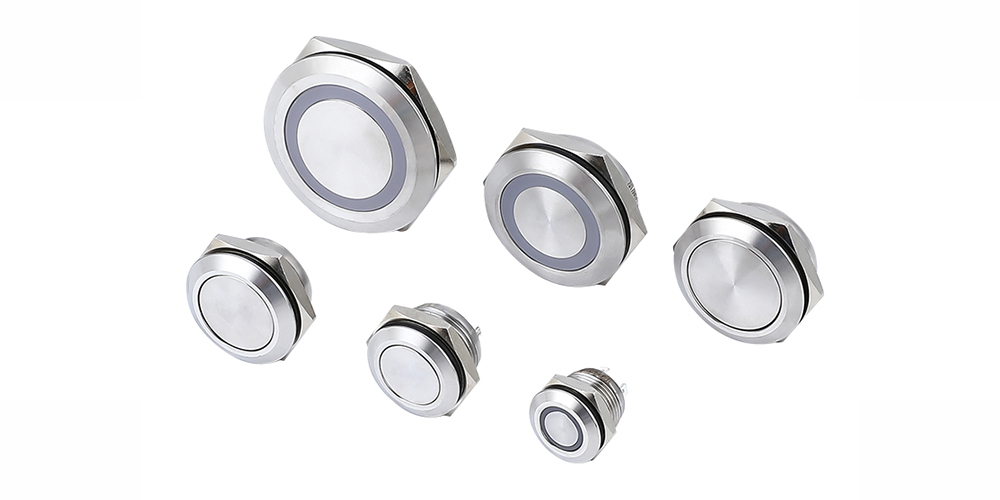

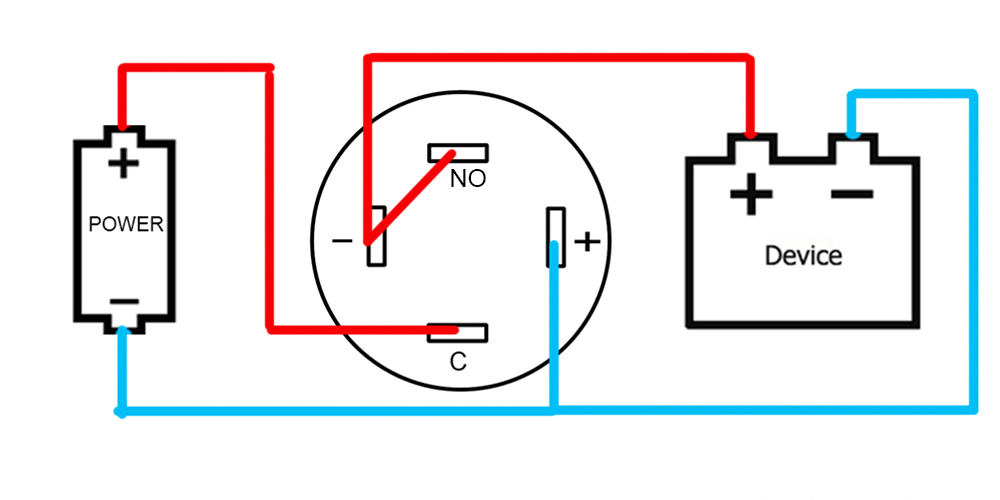

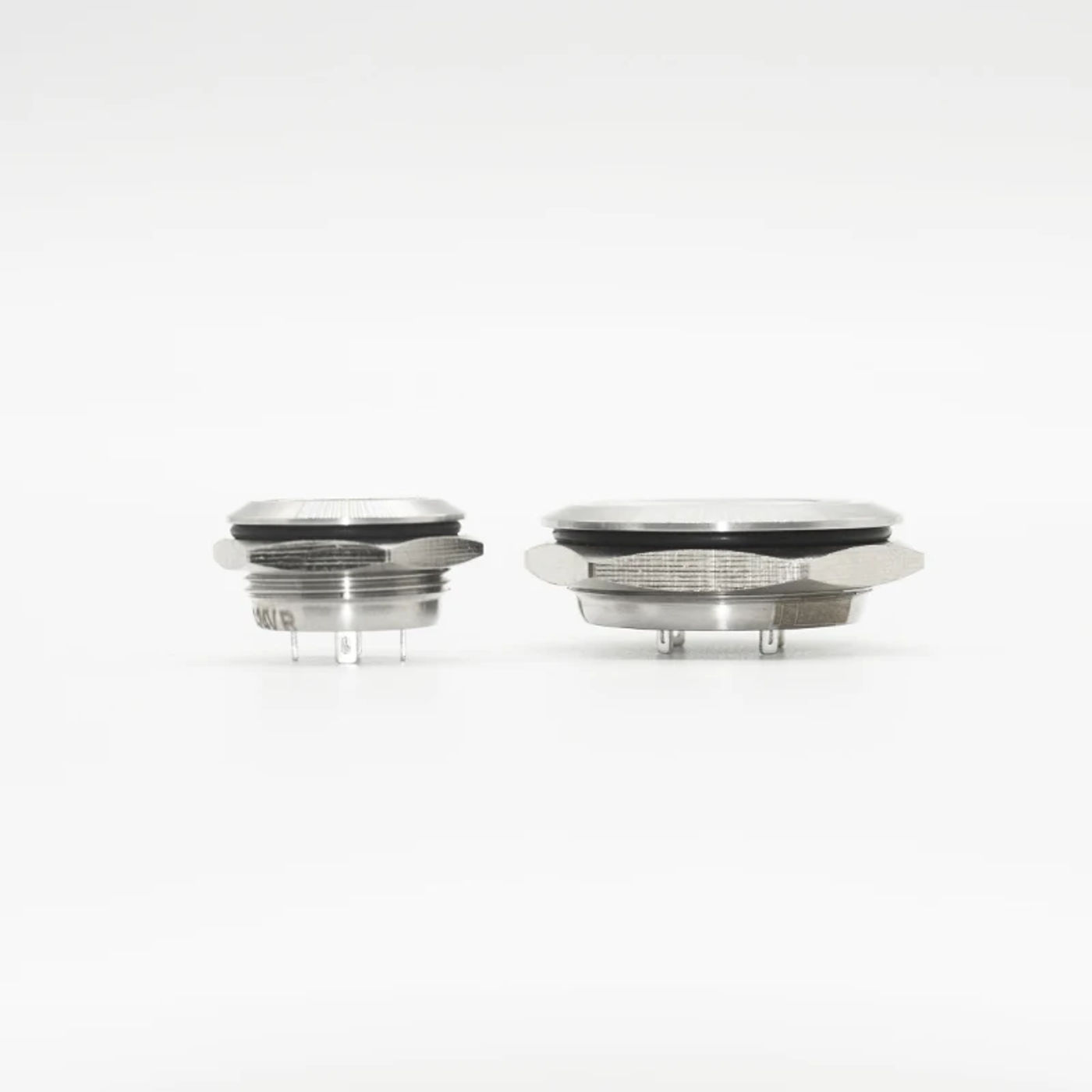

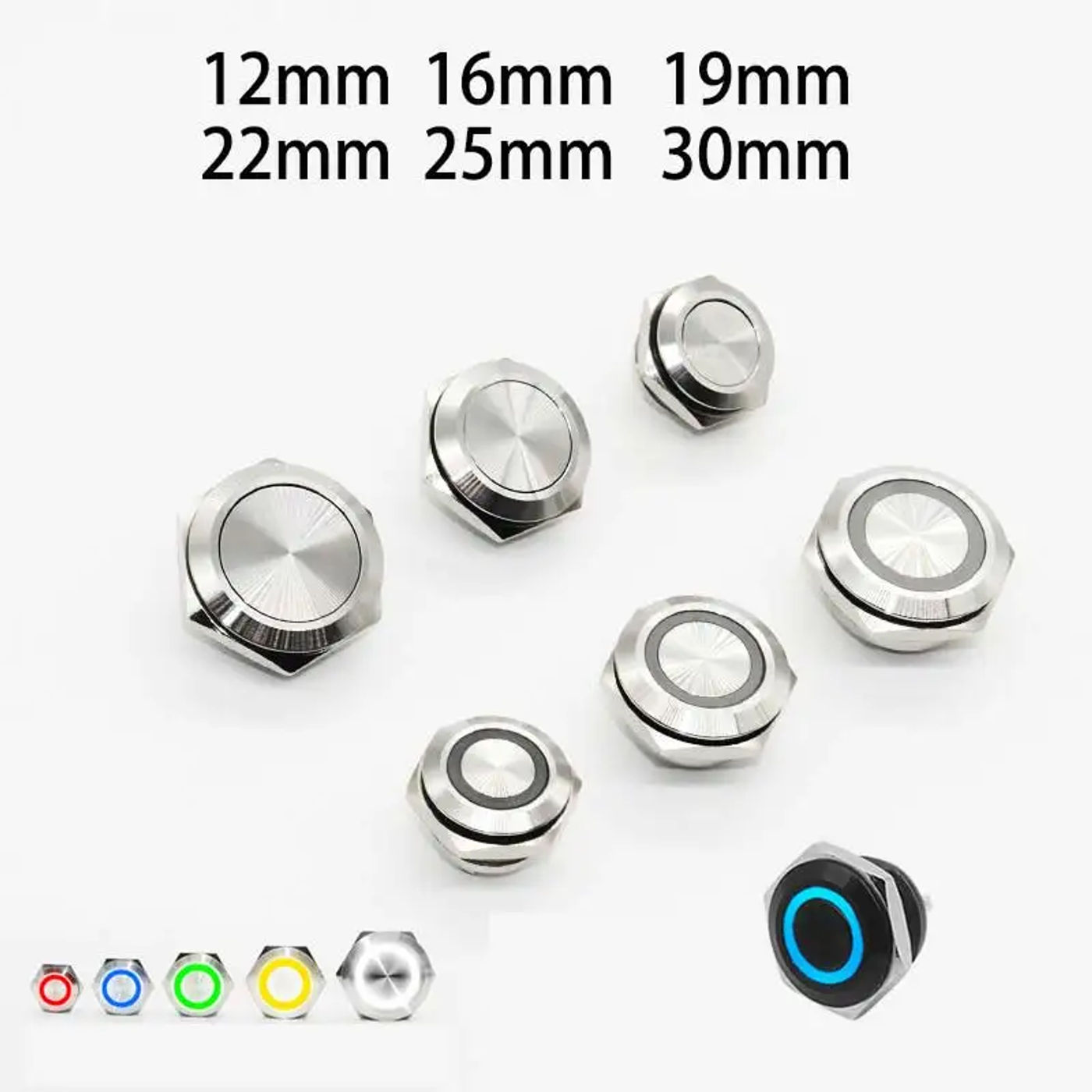

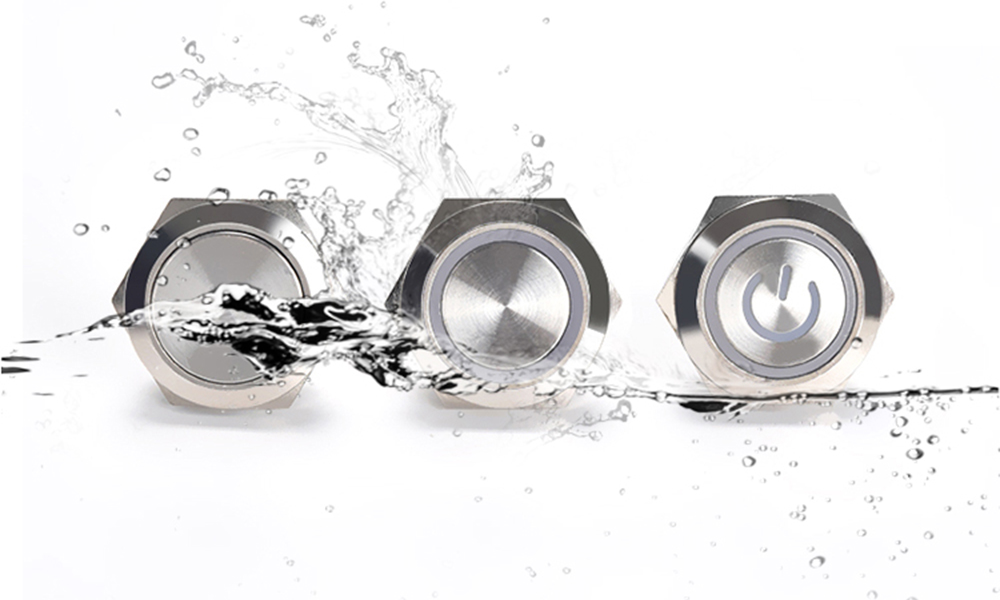

• If you like more item, please contact us,we will add the quantity and provides you the lower cost The button solely have the momentary(like Car or Computer), don&;t have the lacthing (like the lamp), and don&;t have the Suitable connector,please think twice earlier than you purchase Operation Type :Momentary After urgent the button ,press-key will return routinely If you don&;t proceed to press the button。Self-reset Specification The button don&;t have appropriate connector,only purchase the one connector If you need special specifications, please feel free to contact visitor service,we can customise it Contact:sterling silver Material: Nickel Brass Or aluminium oxide Color: Silver Or Black LED color: White Yellow Red Green Blue Switch Rating: 2A /250VAC Press distance : ≤0 Waterproof Grade: IP65 LED Voltage: 3-6V,12V,24V,220V Operation Type: Momentary （like the button of Car or Computer） Hole size: 12/16/19/22/25/30mm Voltage Selection 3V-6V :3V 5V 6V 12V-24V: 12V 24V 220V: 220V 230V Other voltages are required Please touch customer support No led swap button can be applied to 2-250V Pin Terminal Introduction "+": effective pole of the led " - ": negative pole of the led " NO ": Normal Open " C " : Common Connect " NO " and " C " : The circuit is alway open until press the button Flat Head Wiring Diagram There are many wiring method, the image below is simply for reference Wiring Diagram of Normal Open When the swap is pressed, the LED lighting up and the weight is energized After press-key return, the load is de-energized, and the light is off Features Made of steel material, strong and sturdy High-grade look and pleasant touch feeling Adopt rubber ring and hexagonal nut fixed, anti dirt and waterproof, which make it great for exterior use Copper plating silver terminals for nice conductive homes Momentary type, push it-on, launch it-off Metal button head durable for longstanding press

•
•
•
•
•
