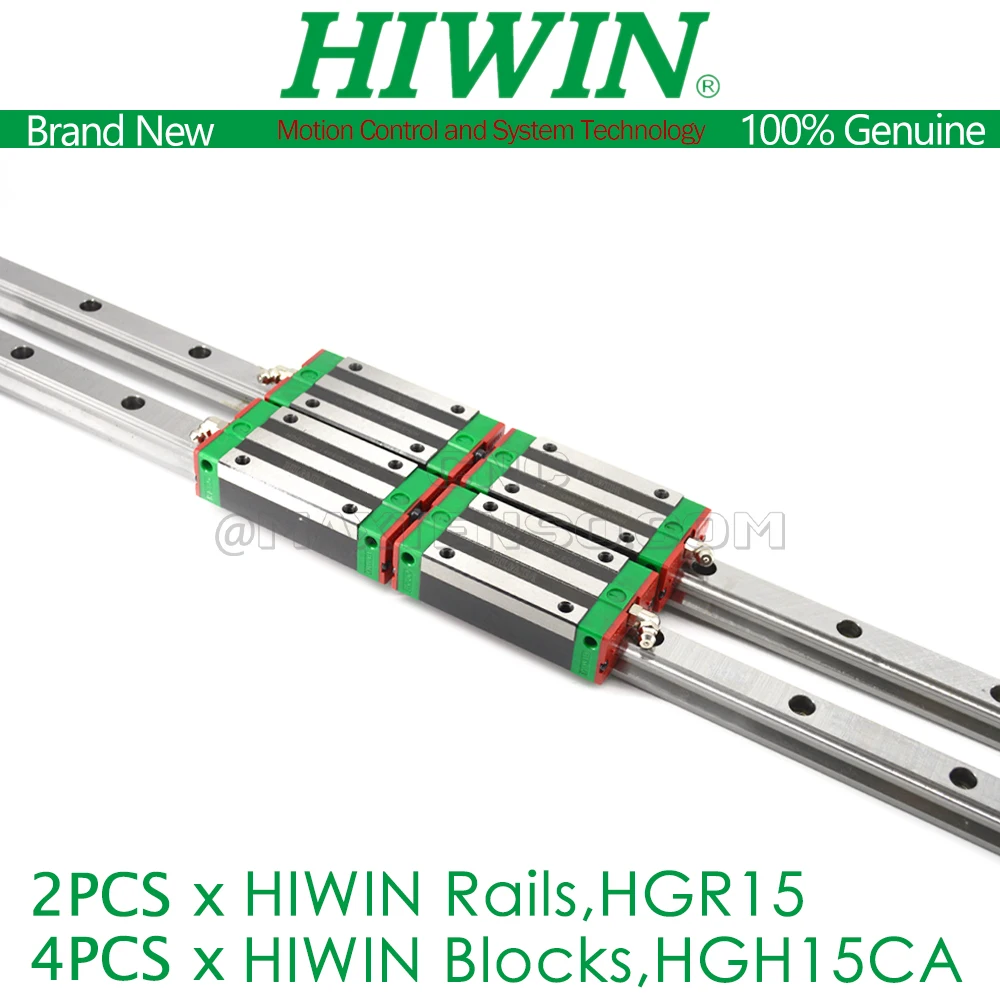

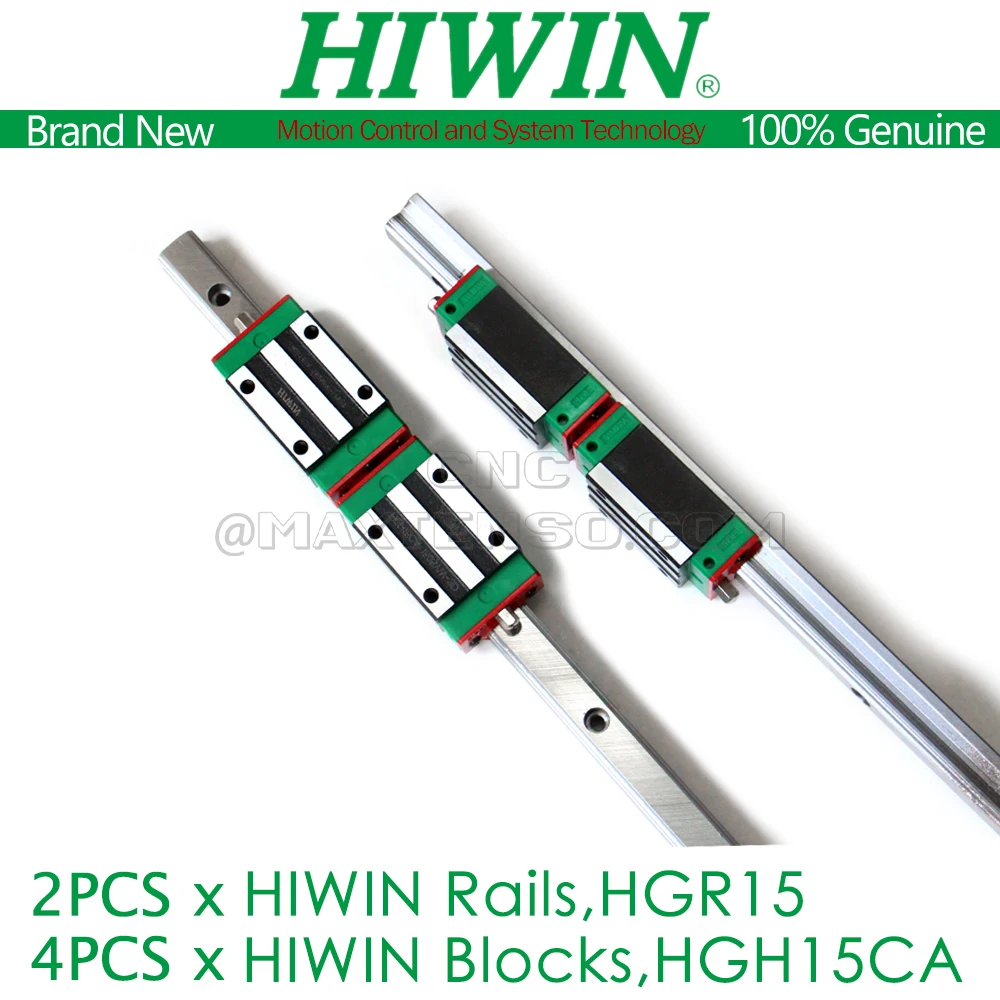

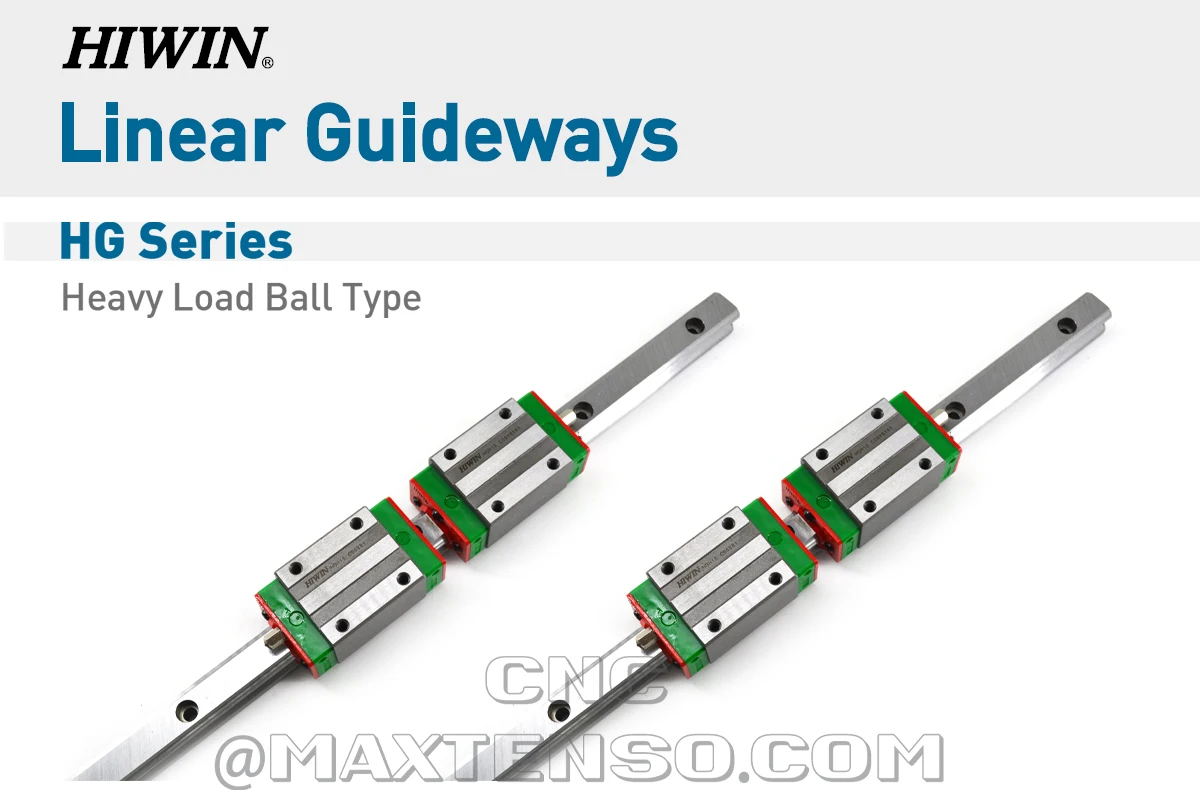

• HIWIN HG Series: Heavy Load Ball TypeGenuine HIWIN HGR15 Linear Guide two hundred 300 400 500 600 seven hundred 800 900 1000 1200mm Rail HGH15CA Carriage Block C Grade ZA Preload NewPacking List: HIWIN HG Series - Heavy Load Ball Type4PCS x HIWIN Block HGH15CA 2PCS x HIWIN Rail HGR15R200~1200mm*The size is predicated in your choice*Please allow us 4-6 days for reducing and processing according to your orderItem List: HIWIN HG Series - Heavy Load Ball TypeHG Series Model Size: 15HG Series Block Type: H (Square Type)Preload Value: ZAAccuracy: CManufacturer: HIWINProduct Status: one hundred pc New, Made in TaiwanMain Application: HIWIN HG Series - Heavy Load Ball TypeMachine Centers/NC Lathes/Grinding MachinesPrecision Machining Machines/Heavy Cutting Machines/Automation DevicesTransportation Equipment/Measuring Equipment/Devices Requiring High Positional AccuracyFeatures: HIWIN HG Series - Heavy Load Ball TypeHIWIN HG collection linear guideways are designed with load skill and pressure increased than different same merchandise with circular-arc groove and structure optimization. It aspects equal load rankings within the radial, opposite radial and lateral directions, and self-aligning to soak up installation-error. Thus, HIWIN HG sequence linear guideways can achieve a longevity with high speed, high accuracy and comfortable linear motion.(1) Self-aligning capabilityBy design, the circular-arc groove has touch points at forty five degrees. HG collection can soak up maximum set up errors because of floor irregularities and supply soft linear movement throughout the elastic deformation of rolling facets and the shift of touch points. Self-aligning capability, high accuracy and delicate operation could be acquired with an easyinstallation.(2) InterchangeabilityBecause of precision dimensional control, the dimensional tolerance of HG collection could be saved in an affordable range, this means that any blocks and any rails in a specific series can be used together whereas conserving dimensional tolerance. And a retainer is added to forestall the balls from falling out when the blocks are faraway from the rail.(3) High pressure in all 4 directionsBecause of the four-row design, the HG sequence linear guideway has equal load rankings within the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove offers a wide-contact width between the balls and the groove raceway allowing extensive permissible plenty and excessive rigidity.

•
•
•
•
•
