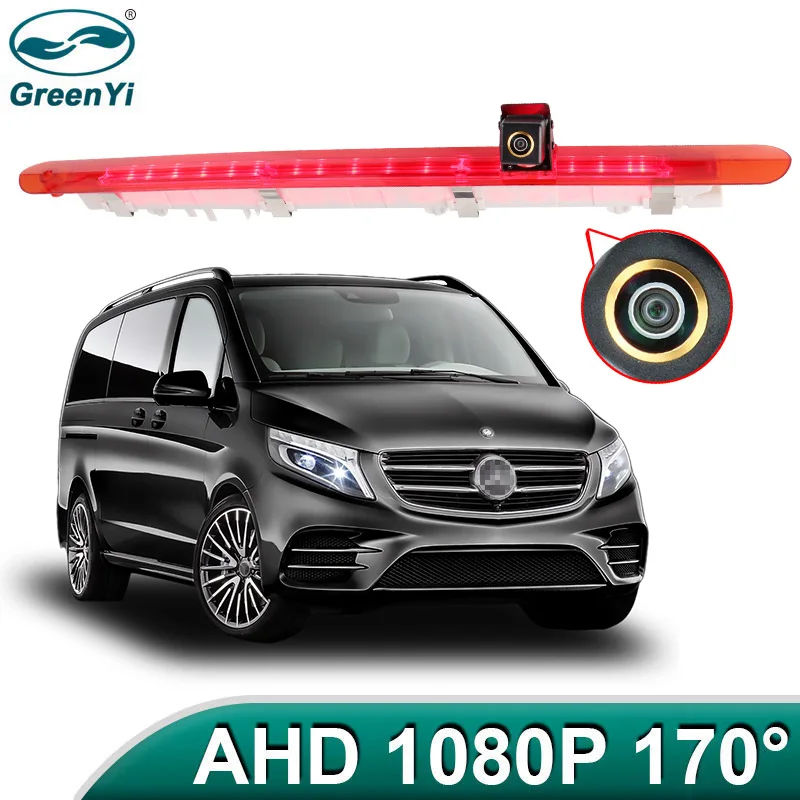

• three Camera Style Optional: About AHD1080P optoin: Please verify whether or not the Android unit supports AHD1080P camera! If AHD1080P can't be selected, AHD1080P cameras are not supported! Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P Cameras with CVBS video signal is common for all monitors, yet AHD will solely paintings with AHD monitor! AHD Camera, Analog High Definition Technologie Top starlight evening vision Support Video Signal Control and Parking Line Switch (GFA/GAHD Style) Pure Copper 8m Video Cable 12V- 24V Integrated Step-down Module Installation Diagram Product specification: Package listing 1 Rear view digital camera 2 Power cable three Pure copper 8m video cable 4 User manual FAQ: How to make a decision a rear view digicam that can be appropriate for my vehicle model? A) According to the main automobile model, seek in the shop, there will be several form of cameras, after which purchase consistent with your actual long-established license plate/ handle B) Or you could possibly measure your length and seek the advice of customer support to substantiate the digital camera mannequin Tip: because there may be slight variations between vehicles produced in numerous countries, please test the dimensions before procuring After connecting the rear view camera, the display shows no signal, black display screen and no picture, what should I do? A) Please verify your connection, crimson set off line must connect with your reverse mild and monitor reverse-in cable B) Please check your signal format, want right sign to run the digital camera C) If your computer screen has AUX-IN function, you would connect with the AUX-IN Tip: CVBS cameras can examine the functionality at the TV Universal cameras with 4Pin plugs can only be installed with our cables You can seek the advice of customer service if you come across any disorders in the course of the set up activity After connecting the rear view camera, the display screen shows black and white, what should I do if there is no color? A) Choose wrong camera system(such as PAL/NTSC) will trigger the display to be black and white Please choose the correct method to run the digicam and restart the camera power CVBS digicam is NTSC system, AHD1080P camera is PAL system B) Please examine whether or not the 6M line is normal, please replace with one other 6M cable to test the camera What applications do the white and inexperienced cables of the rear view digital camera control? A) White cable: video signal control • GFA camera: ( CVBS )+( 1280x720 )+( 170° ) Cut the white cable(reconnect the digital camera power)→( AHD )+( 1280x720 )+( 170° ) • GAHD camera: ( AHD1080P )+( 1920x1080 )+( 175° ) Cut the white cable(reconnect the digicam power)→( CVBS )+( 1280x720 )+( 125° ) B) Green cable: parking line management Camera with parking line/camera would not display parking line, you would cut the green cable, then reconnect the camera's strength supply, that may exchange the parking line Warranty and Return: • All our goods are tested to guarantee operating correctly earlier than delivery and come with a 12-month Manufacture Warranty • If this merchandise has any issue when arriving, please be happy to touch us and give us likelihood to resolve your problem

•
•
•
•
•
