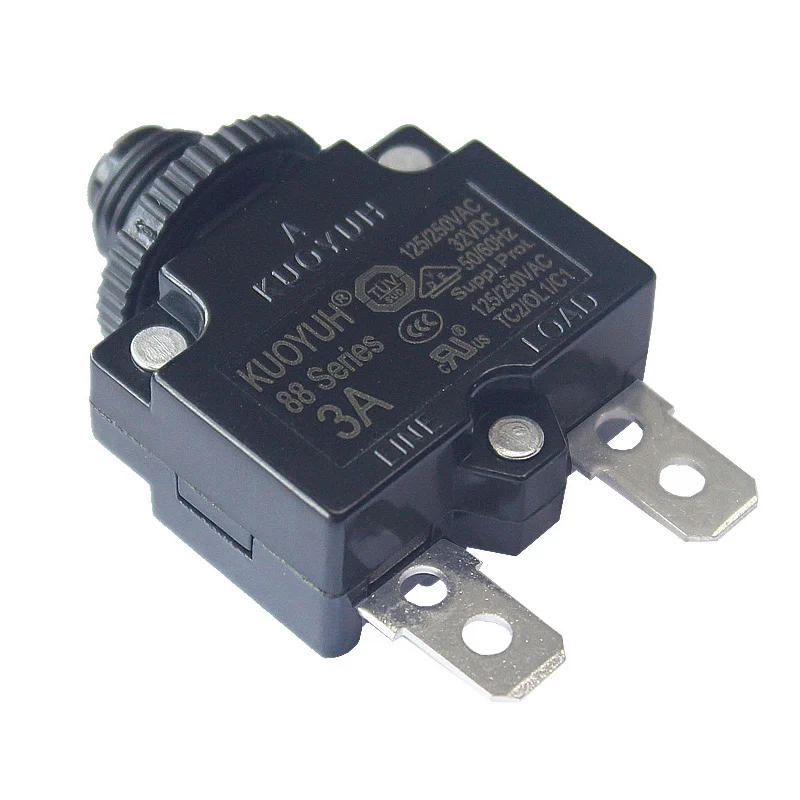

• Product Description Technical information Current rating range:3~30A Input voltage rating :125/250VAC; 32/50VDC Interrupting Capacity : 125/250VAC x 1,000A(UL 1077) Typical life : 1,000 operations at 200% overload Insulation co-ordination:Rated impulse stand up to voltage 2 Dielectric Strength:> 1/min Insulation Resistance:>100MOHM (DC 500V) Degree of protection:Terminal area IP00, working field IP40 Mechanical/Environmental Data Operating Ambient Temperature: -10℃ to +60℃ Mounting: Various strategies See Ordering Information and drawings Termination: 250&;&;(6)quick connects or solder terminals Calibration(at25℃) 100 percent of Rated Current: Hold ,No Trip 300% of Rated Current: 1 sec Trip 200% of Rated Current: 5-30 sec Trip 150% ofRated Current: Trip Within 1 Hour Approval Approval & File No Rated current Rated voltage CUL UL E155159 3- 30A 125/250VAC; 50VDC TUV SUD B15 09 58611 007 3-20A 125/250VAC; 32VDC VDE 40036160 3-16A 125/250VAC CSA 102199 3-16A 250VAC IEC 60934 3-20A 250VAC Typical functions Tarnsforms, Motors, Battery chargers, Power supplies, appliances, extra low voltage systems, machinery

•
•
•
•
