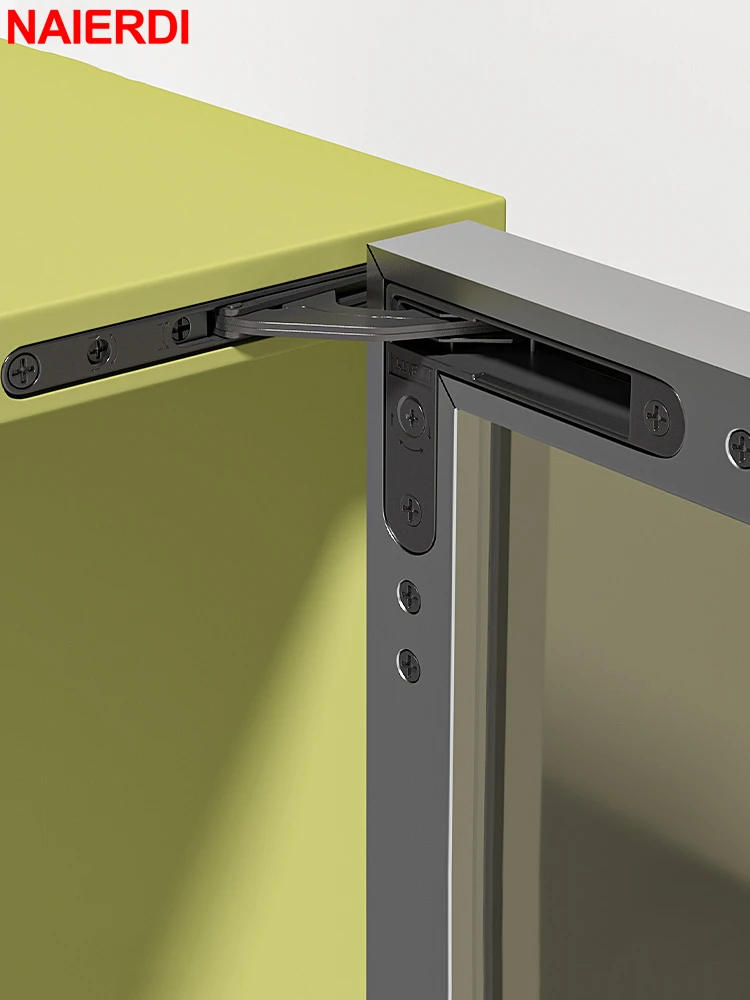

• Specifications:Brand: NAIERDIMaterial: Zinc alloyOpening Angle: one zero five degreeColor: Elegant GrayMax Door Weight: 25KGMax Door Height: 2100mmMax Door Width: 600mmDoor Thickness: 18-32mmProduct Size: Please check above photoPackage involves : 1 pair of soppy last concealed cabinet hinges with screwsNotice:1.Please allow 1-3mm error because of manual measurement,please ensure you do not mind before you bid.2.Real color may demonstrate diverse in different displays or beneath diverse light, please talk about the colour of the product truthfully received.thank you!Soft Closing Concealed HingesThis invisible hid hinge is acceptable in either wooden doors and aluminum frame glass doors.Compared with ordinary usual furnishings hinges, this hidden hinge will look extra exquisite and hidden in the surface!Adjustable in three different instructions so it would paintings ultimate in the cabinet doors.Kind NoticePlease prefer appropriate form with nook brackets once you set up this product in aluminum body doors.How to regulate distance1. Front and rear adiustment from +2 to -0.52. Level adjustment from +2 to -23. Sideways adjustment from +1.5 to -1.51. Door opening distanceT= door thicknessK= distance between the door panel drilling and the aspect of the door panelA= distance between door panel and cupboard side2. Installation Size3. Aluminum Frame Door InstallationPlease buy the right kind includes brackets1. The profles which make up the door needs to be cut and the ends mitredat 45° and milled for the insertion of the nook connectors.2. Insert the corner connectors into the profle and fx them with thescrews provided.3. Insert the hinges into the recesses.4. Fix with the screws provided.

•
•
•
•
•
