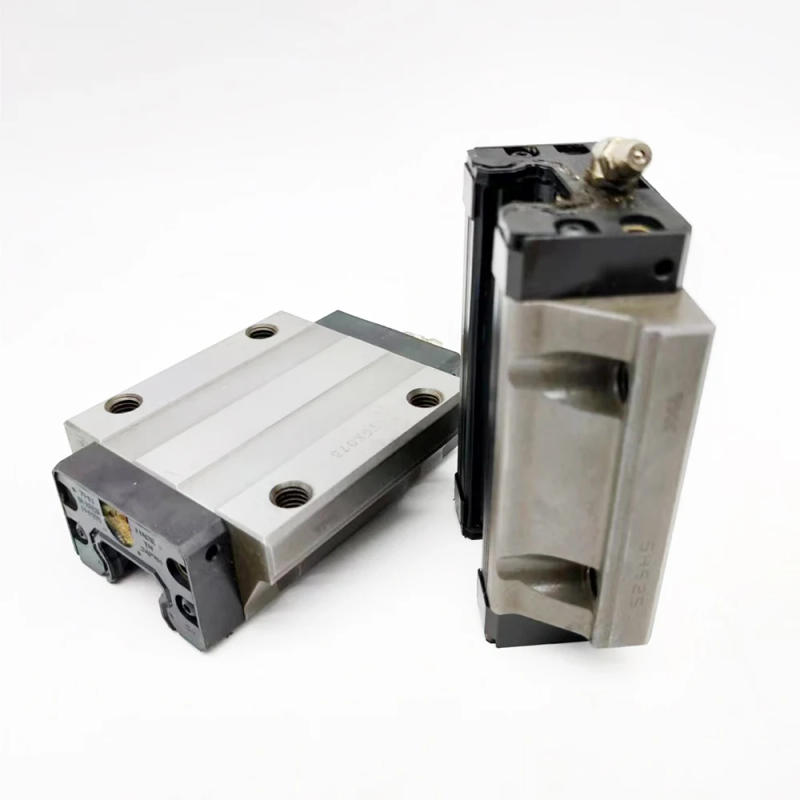

• The metal ball rolls along the LM track and LM slider, forming four columns of precision ground rolling surfaces; By utilizing a ball holder and an finish conceal plate assembled on the LM slider, the metal ball column is made to go in a round motion. In order to make sure that all 4 directions of motion (radial, anti radial, and lateral) at the LM slider have the same rated load, every single metallic ball column is designed to be configured at a touch perspective of 45 °, so it may be utilized in any posture. And due to means to use equal preload, it can keep a low friction coefficient while modifying tension in all 4 directions. Meanwhile, because of the low cross-sectional peak and the excessive tension design of the LM slider, steady high-precision linear motion can be achieved. 【Four directional equivalent load】In order to ensure that all four instructions of motion (radial, anti radial, and lateral) at the LM slider have a similar rated load, every single steel ball column is designed to be configured at a contact angle of 45 °, so it can be utilized in any posture and has a variety of applications. 【Automatic heart adjustment ability】Due to THK's exotic mixture of curved grooves (DF combination) with automated adjustment capability, it can take up installation errors even if preloaded, resulting in high-precision, smooth and steady linear motion. 【World common size】The length design of SHS relies on the HSR sort of all steel ball LM rolling guide developed by THK, a pioneer in linear movement systems, which has develop into the area standard. 【Low middle of gravity, high rigidity】By miniaturizing the cross-sectional dimensions of the LM track, the center of gravity is decreased whereas attaining high rigidity.

•
•
•
•
•
