Beschreibung

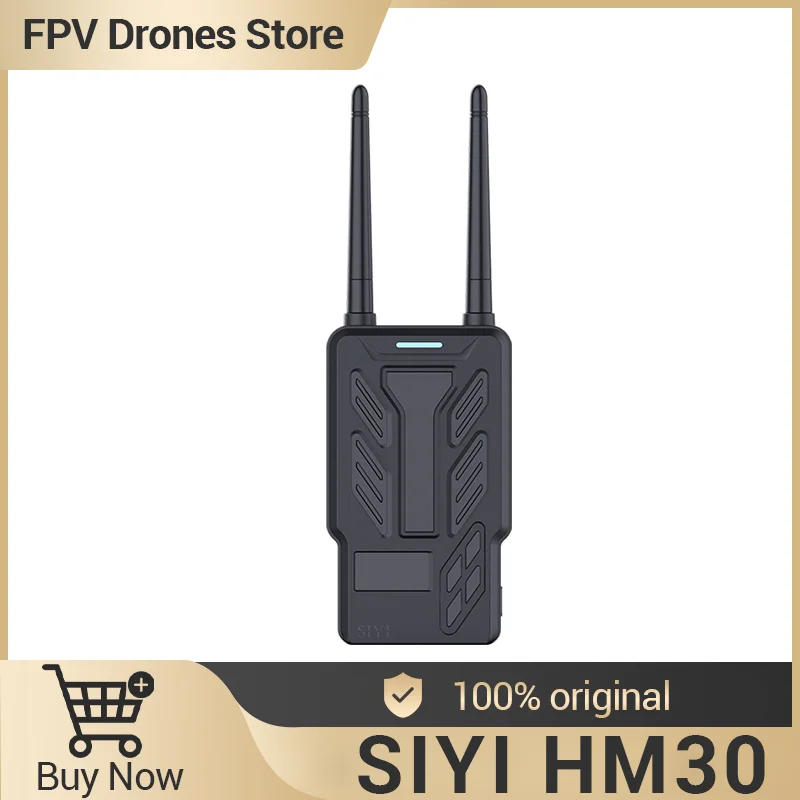

• Model: HM30 SE Max Transmission Range: 30 kilometers (unobstructed, freed from interference) Channels: sixteen communication channels Compatible Flight Controllers: - Pixhawk Based Flight Controller or APM - SN-L+ Fixed Wing Flight Controller - MATEK H743 / F405 or any flight controllers with UART datalink output Compatible Android GCS (standard RTSP video stream): - SIYI FPV - QGroundControl Compatible Windows GCS (standard RTSP video stream): - QGroundControl - Mission Planner Ground Unit Monitor Display: zero OLED Screen Dimensions (antennas and battery excluded): 109 x sixty one x 28 mm Weight (antenna and battery excluded): 132 g Compatible Battery Type: - NP-F550 / F750 / F770 / F950 / F970 series brief release batteries (HM30 Fly More Combo comes with NP-F750 battery) Fast Charging Protocol: PD 30W Antenna Gain: - Standard Omni Antennas: five dBi - Standard Long Range Antennas: 11 dBi Power Consumption: five W Interface & Ports: - S / PPM RC Signal Input: RC (GH1 4-Pin) - Datalink Output: UART (GH1 4-Pin) - Ethernet Port: LAN (GH1 4-Pin) - Power Output: VCC (GH1 4-Pin) - USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C - Power Input: PWR (XT30) - Tripod Connector: 1/4-inch Screw Hole Waterproof Level: IP53 Working Temperature: -10 to 50℃ Air Unit Signal Output: 16 channels of S, five channels of PWM Interface & Ports: - SBUS: 3-Pin - Datalink (to FC): UART 4-Pin - PWM Channel 1 to 5: 6-Pin - Video Input: Ethernet 8-Pin - Firmware Upgrade: Type-C Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm Weight (antenna excluded): seventy four g Antenna Gain (standard omni): five dBi Power Input: eleven to sixteen V (expandable to 4S to 18S with BEC) Working Temperature: -10 to 50℃ FPV Camera Frame & Bitrate: 720p 30fps 1 H (or 1080p 30fps 2 Mbps H only because the connection with DIY configuration) Sensor: 1/2" CMOS Effective Reolution: three MP Lens: three mm, F/2 Camera Angle: FOV 105° Dimensions: 42 x forty two x 25 mm Weight: 23 g Cable Lens: a thousand mm Working Temperature: -10 to 55℃ Ground Unit HDMI Output Converter (Optional) HDMI Port Type: Standard HDMI Power Consumption: 2 W Dimensions: 52 x fifty two x 16 mm Weight: 150 g Working Temperature: -10 to 55℃ HM30 FAQ 1 What is HM30 ? A long-range complete HD FPV formulation with remote control, telemetry, and OSD integrated 2 What frequency bands do HM30 use? 5100 to 5825 MHz, centering at 5550 MHz 3 Can I update the antennas on HM30? Yes, obviously Both the floor unit and the air unit are utilizing SMA connectors for antenna set up SIYI normal antennas are: 4 x Omni Antennas (2 for ground, 2 for air) 2 x Directional Antennas (for ground) SIYI sold-alone antenna choices are: 17 dB High Gain Antenna Lollipop Antenna 4 How much transmitting strength in HM30? Around 25 dBm / 320 mW 5 What is the tremendous range? The recent listing is 50 km With diverse antenna setup and in numerous wireless mode, the diversity limit is varied KM Range Test Full Video - SIYI HM30 Full HD Image Transmission SystemAmazing Record 42 KM Range Test Full Video - SIYI HM30 6 What flight controllers fit with HM30? To use the OSD overlay, the flight controllers should support Mavlink output, similar to Ardupilot, PX4, INAV, and so on If the OSD overlay isn't always necessary, then any flight controllers fit 7 What remote controllers are compatible with HM30? Any remote controllers which help S or PPM output eight What interfaces to output video stream on HM30 floor unit?USB-C LAN (UDP telemetry simultaneously) Internal WiFi (UDP telemetry simultaneously) USB WiFi (UDP telemetry simultaneously) nine Does HM30 ground unit support HDMI output? Yes but with a sold-alone LAN-HDMI Output Converter Module 10 Does HM30 air unit assist HDMI input? Yes but with a sold-alone HDMI-Ethernet Input Converter Module 11 What are the size and the burden of the HM30 unit and the FPV camera? Air Unit Dimension: 70x55x24 mm (antenna detached, fan peak included) Weight: seventy four g (antenna detached) FPV Camera Dimension: 42x42x25 mm Weight: 23 g 12 What kind of units are the most compatible for HM30? FPV wings and multirotors

•
•
•
•
•
