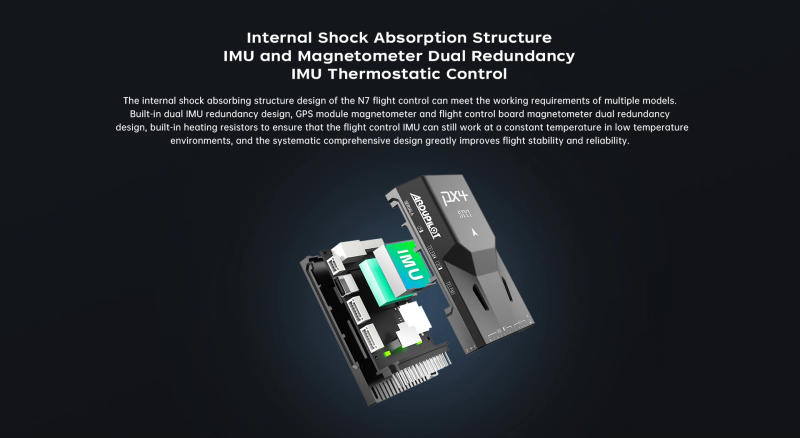

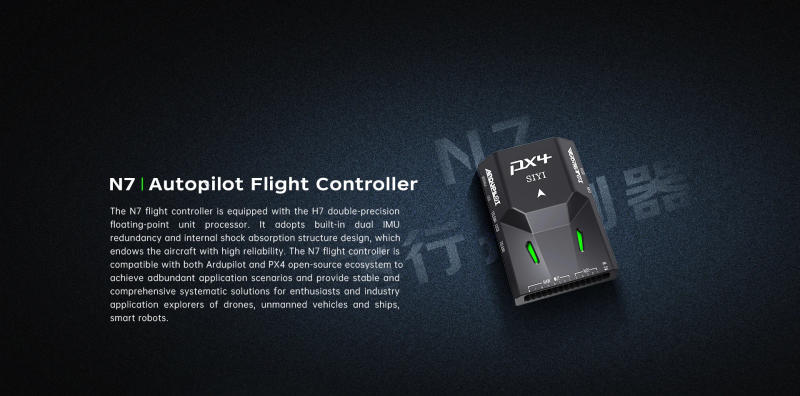

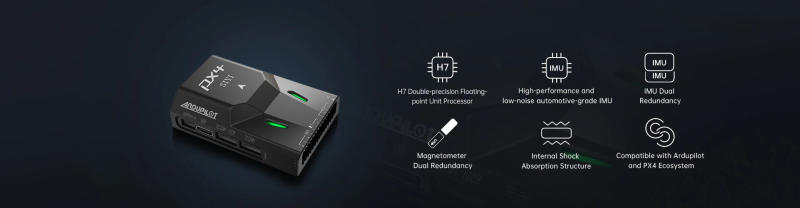

• Description The SIYI N7 flight controller is supplied with the H7 double-precision floating-point unit processor It adoptsbuilt-in dual IMU redundancy and internal shock absorption structure design, which endows the aircraft with highreliability The N7 flight controller is compatible with both Ardupilot and PX4 open-source ecosystem to achieve adbundant utility situations and supply secure andcomprehensive systematic ideas for fanatics andindustry software explorers of drones, unmanned automobiles and ships, smart robots Specifications: Hardware Main Processor: STM32H743IIK6 (32 Bit Arm® Cortex®-M7, 480 MHz, 2 MB memory, 1 MB RAM) Coprocessor: STM32F103 (32 Bit Arm® Cortex®-M3, seventy two MHz, 20 KB SRAM) Sensors : Accelerometer / Gyro: BMI088 / ICM20689 Electronic Compass: IST8310 Barometer: MS5611 External Interface : UART Serial Port: four I2C: three CAN: 1 PWM Output: - eight x Standard PWM IO - 5 x Programmable IO RC Input (SBus): 1 Power Module Input: 1 GPS & Safety: 1 USB (Type-C): 1 TF Slot: 1 Overall : Compatible Model: PX4 / Ardupilot Firmware (Planes / Multirotors / Helicopters / VTOL / UGV / USV) Power Module Voltage Input: four ~ 5 V USB Voltage Input: 5 V ( ± zero V) Servo Voltage: zero ~ 10 V Working Temperature: -20 ~ 65 ℃ Product Dimension: 47 x 68 x 19 mm Product Weight: 57 g

•
•
•
•
•
