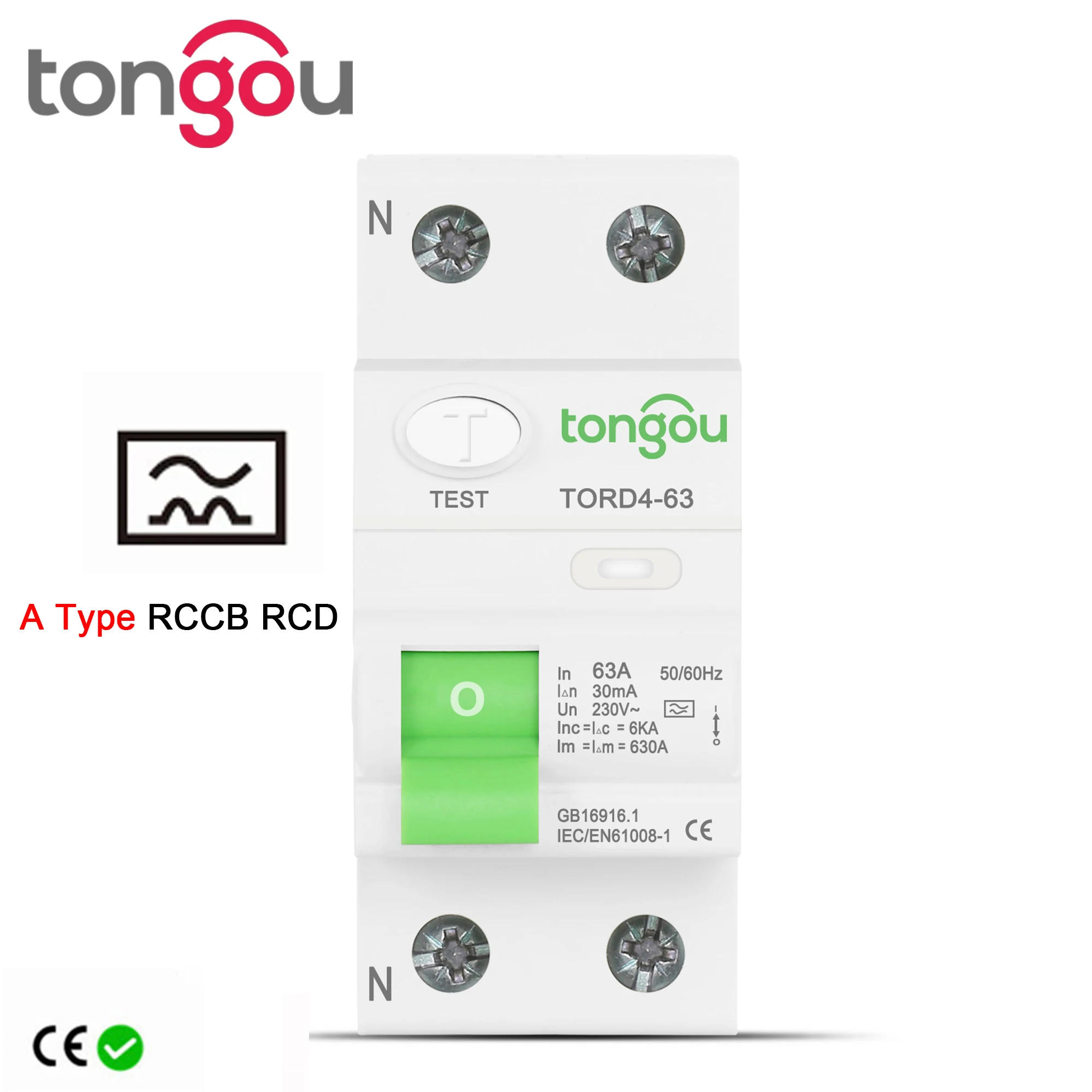

• Tips: 30mA, 100mA, 300mA is electromagnetic type, 10mA is electronic variety can't be examined with 5V battery There is a wiring diagram above the verify button, please persist with the it The energy delivery should input from the tip and output from the lowest The impartial line at the left and the live line at the right The default rated voltage of the product is 230V, (110V must be customized, please touch customer service) General: This isA TypeResidual Current Circuit Breaker This isA TypeResidual Current Circuit Breaker This isA TypeResidual Current Circuit Breaker Residual Current Circuit Breaker is relevant to electrical circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated latest as much as 63Amp The RCCB gives indirect defense to the operator’s body below such situation that the exposed stay elements must be connected to a formal earthing pole RCCB also affords protection against the fireplace hazard attributable to earth fault latest due to operate failure of over-current defense device Special tips: 1 RCCB with rated sensitivity as much as 30mA could be used as supplementary maintaining system in case different conserving gadget fails its defense against electrical shock 2 RCCB designed for household installation and other similar application, is for non-professional operation, and no upkeep is needed 3 RCCB offers on protection against electric surprise resulted from direct contacts of either safe lines,or leakage current between these two traces four Particular instruments similar to surge protecting devices,surge arrester etc are recommended to put in at upstream line to RCCB as precaution opposed to potential surge voltage and latest occurring at its power enter side 5 Satisfying situations and purposes as stated above,RCCB with “ON-OFF” indicating gadget is taken into account appropriate for isolation operate Technical Data: Model Name TORD4-63 Model Magnetic type Residual Current characteristic: A type Pole No: 2P 4P Rated making and breaking capability 630A Rated current（A） 63A Rated voltage 110V 220V 230V AC Rated frequency 50/60Hz Rated residual working recent |△(A): 0 Rated residual non working latest |△ no: 0|△ n Rated conditional short-circuit recent inc: 6kA Rated conditional residual short-circuit recent |△c: 6kA Tripping duration: Instantaneous tripping ≤0 Residual tripping recent range: 0||△n~|△n Electro-mechanical patience ≥4000 cycles Connection capacity: Rigid conductor 25mm⊃2; Connection terminal Screw terminal Pillar terminal with clamp Fastening torque 2 Nm Installation On symmetrical DIN rail 35mm Panel mounting About Us Dear TONGOU Buyer: "Thank you on your consideration to and for placing an order in our store" 1 the amount of your order is greater than $150 (the promoting charge doesn't consist of VAT) In any case, you pay an identical quantity of cash If subsequent time you don&;t want to pay VAT locally, please ensure your order amount is less than $150, and will charge VAT automatically 2 item payment is not adding any taxes or fees locally, if the parcel get stuck at native customs, buyer need to touch the customs and do the customs clearance We won&;t bear the customs taxes or any charges caused by custom or customer reject equipment three If you select DHL,this isn't adding DHL remote cost/custom duty, or any fee charged through DHL for tradition clearance or warehouse storage charge four open the parcel in publish officer&;s presence,If the parcel damaged or empty(stolen),please ask the put up workplace to produce respectable document,especially the declare request paper five Feedback is essential for us We have twelve months warranty We hope which you could contact us directly earlier than you give us impartial or adverse feedback, so that we will assist you solve the problem!

•
•
•
•
•
