Beschreibung

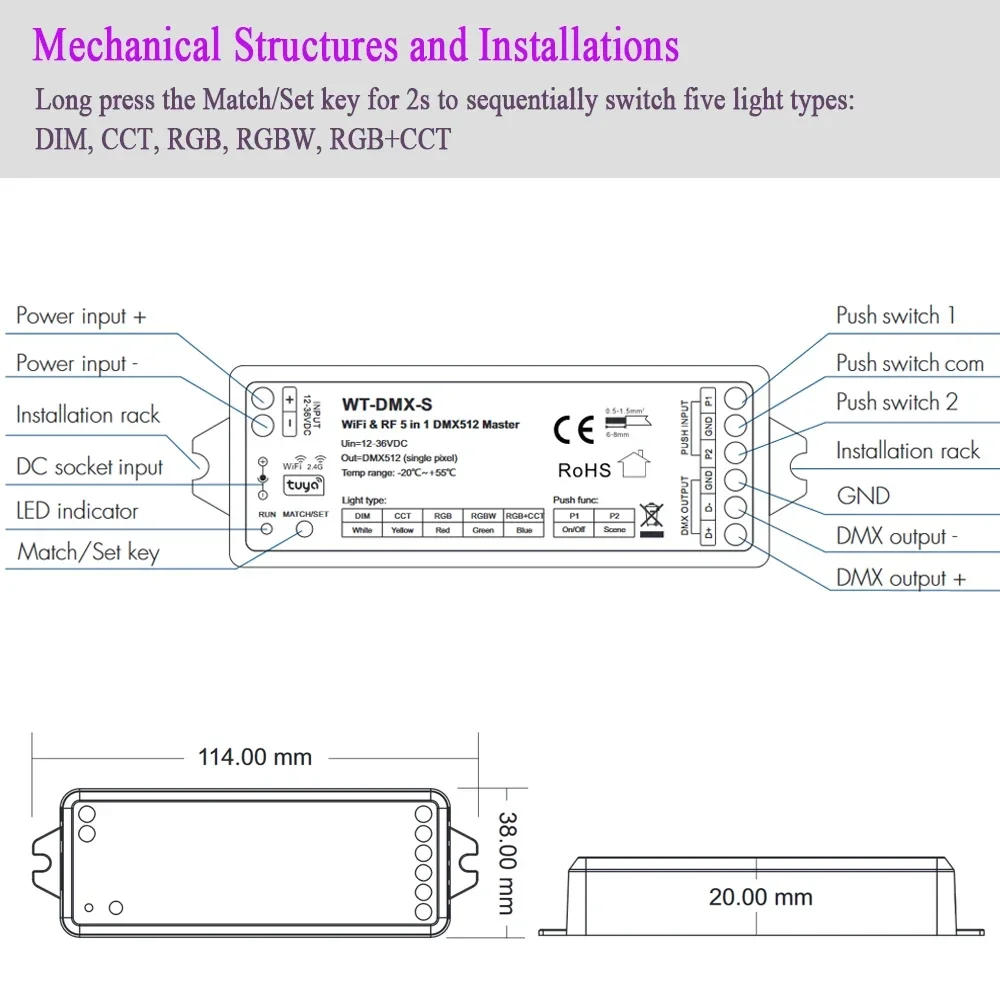

• WT-DMX-S 5 in1 Tuya WiFi RF DMX512 Master 5CH DMX Signal Output and RT5 Push Dimming Voice Smart Control 4Zone remote Controller MODEL NO:WT-DMX-S Features ● 1-5 colour WiFi-DMX master, output 1-5 channel DMX signal,comply with the DMX512 traditional protocols. 8-bit (256 levels) / 16-bit (65536 levels) gray level selectable. ● Tuya APP cloud control, assist on/off, RGB color, shade temperature and brightness adjust, put off flip on/off light, timer run, static or dynamic scene edit and recall, music play function. ● Voice control, help Amazon Alexa, Google Assistant,Tmall Genie, Xiaodu voice assistant. ● Connect with outside two push swap to achive on/off, brightness adjustment,scene switching. ● Match with RF 2 remote optional. ● User want set mild variety by way of press set key earlier than Tuya APP network connection and match RF distant of an identical gentle type. ● Each WT-DMX-S controller can work as WiFi/RF-DMX512 converter, then use Tuya APP to adjust one or extra DMX512 decoders for synchronized management over lengthy distances How does RT10 occasion WT-DMX-S? Use the WT-DMX-S's Match/Set key Match: Short press match/set key of WT-DMX-S, directly press RT10's zone key (1 2 3 4) at the remote. The LED indicator immediate flash once or twice capacity tournament is successful. Delete: Press and maintain match/set key of WT-DMX-S for 10s, The LED indicator fast flash once or twice prospective all matched remotes have been deleted. Push swap function Push change 1 (ON/OFF button) ●Short press: Turn on/off the light. ●Long press(1-6s):Step-less dimming, with another long press, the sunshine point goes to the choice direction. Push switch 2 (Scene button) ●Short press: For DIM/CCT tender type, sequential switching of the four scenes. For RGB/RGBW/RGB+CCT mild type, sequential switching of the 8 scenes. ●Long press(>2s): Recall scene 1.

•
•
•
•
•
