Description

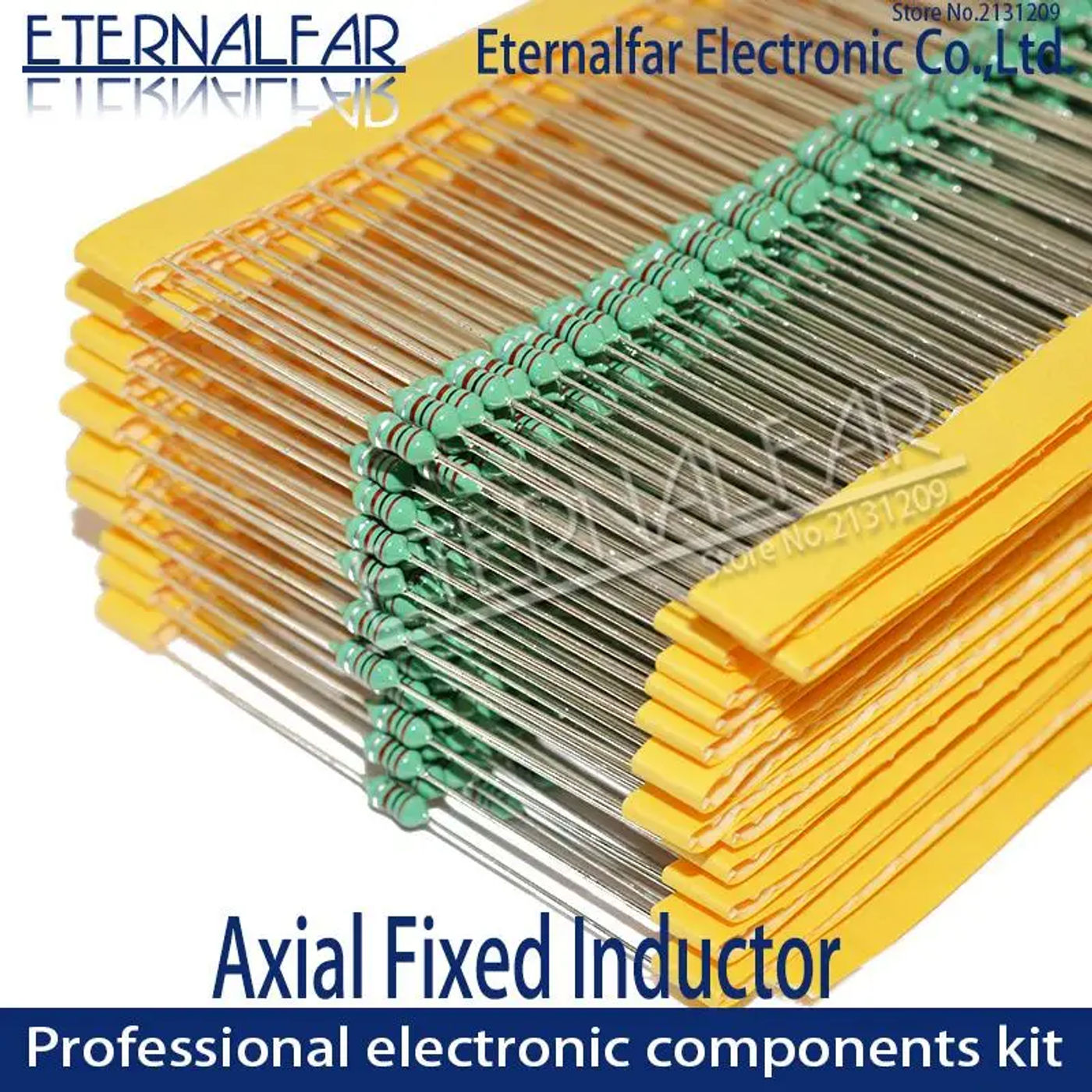

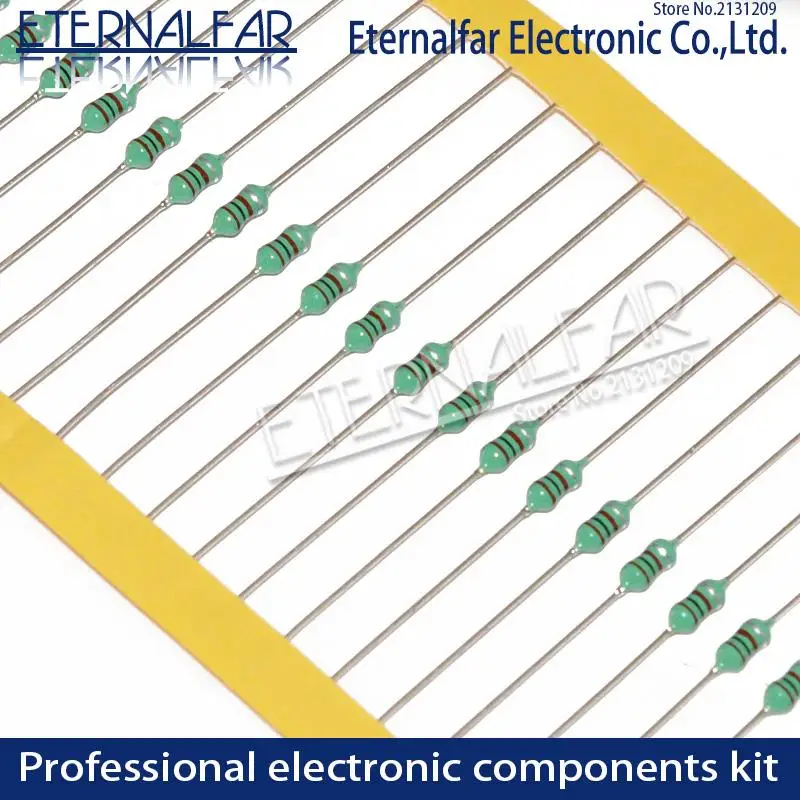

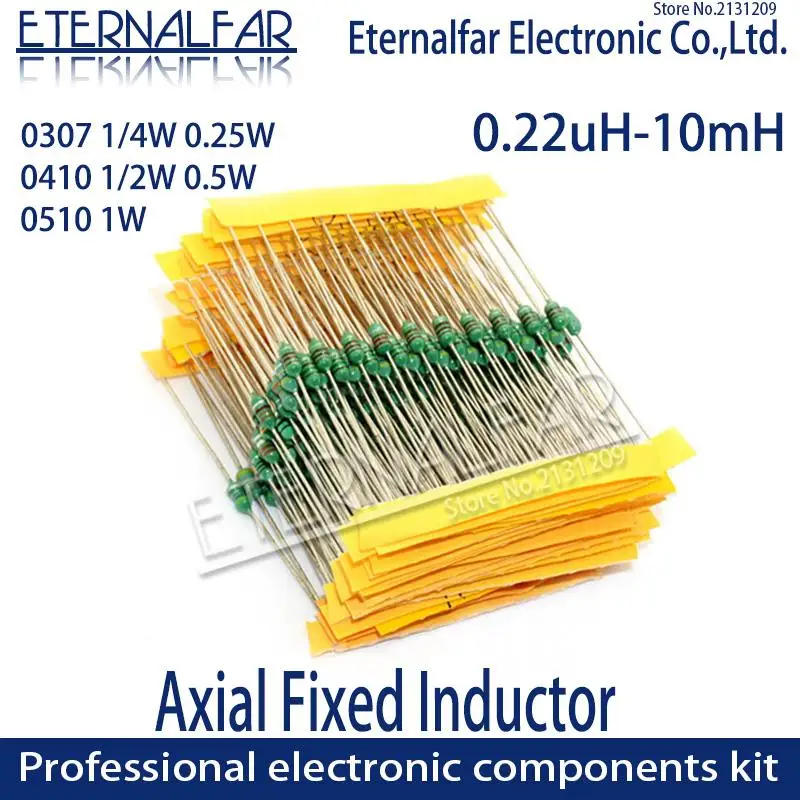

• RM3770225373688915 Axial Fixed Inductor ● Features 1 Design to be compact, small and light-weight, wide range of inductance 2 to be excessive Q and self-resonent frequencies, tapping variety that is handy for automated insertion, coating epoxy resin that ensure the humidity resistance to be lengthy lifestyles ● Applications For TV, radios and radio transceivers, telephones Others different digital products ● Electrical Characteristics (1) Isat: DC latest at which the inductance drops approximate 10% from its price with out current; (2) Irms: DC latest that reasons the temperature rise (△T ≤40°C ) from 25°C ambient (3) Rated Current: It is either the inductance is 10% lower than its preliminary value in DC saturation characteristics or temperature increase becomes △T=40°(Ta=25°), whichever is decrease (4) Operating Temperature Ranges: -25～85° (5) Dielectric with standing voltage:250V AC r ● Test Equipments (1) Inductance(L): HP 4284A/HM 9481/CD 1063/HP 4291A; (2) Q: HP 4284A/HM 9481; (3) DCR: CH 502A/CH 502BC; (4) SRF: HM 9461; (5) Rated Current/Isat/Irms: HP 4284+HP 4284A/CD 1068+CD 1320 Test Condition: at 25°,75%H

•
•
•
•
•
