Description

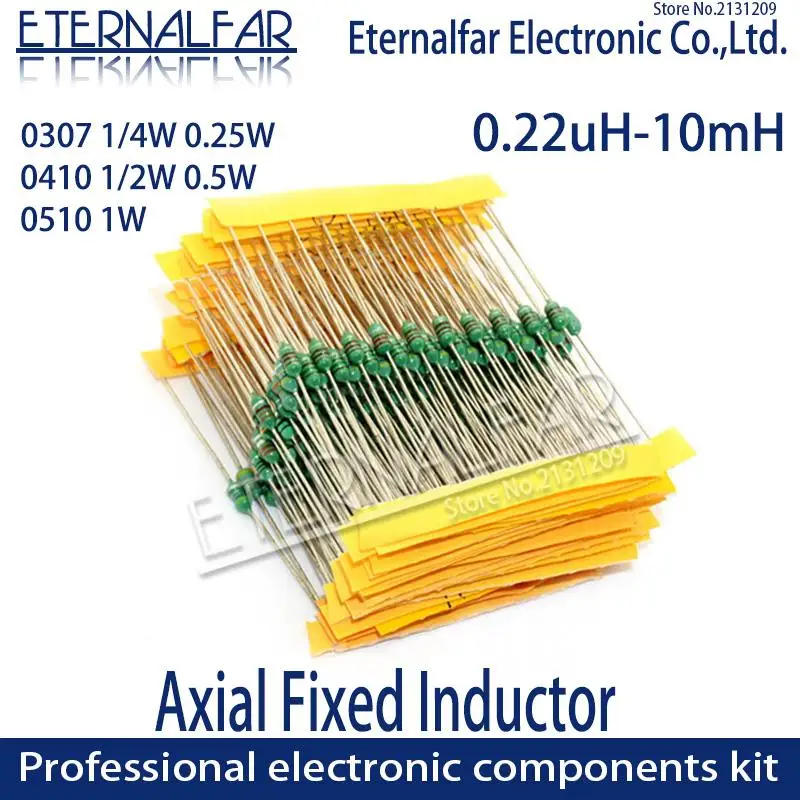

• RM3770225373688913 RM3770225373688915 Axial Fixed Inductor ● Features 1 Design to be compact, small and light-weight, wide range of inductance 2 to be high Q and self-resonent frequencies, tapping form that is handy for computerized insertion, coating epoxy resin that ensure the humidity resistance to be long existence ● Applications For TV, radios and radio transceivers, phones Others different digital merchandise ● Electrical Characteristics (1) Isat: DC recent at which the inductance drops approximate 10% from its price without current; (2) Irms: DC current that reasons the temperature rise (△T ≤40°C ) from 25°C ambient (3) Rated Current: It is both the inductance is 10% lower than its initial price in DC saturation traits or temperature increase turns into △T=40°(Ta=25°), whichever is lower (4) Operating Temperature Ranges: -25～85° (5) Dielectric with status voltage:250V AC r ● Test Equipments (1) Inductance(L): HP 4284A/HM 9481/CD 1063/HP 4291A; (2) Q: HP 4284A/HM 9481; (3) DCR: CH 502A/CH 502BC; (4) SRF: HM 9461; (5) Rated Current/Isat/Irms: HP 4284+HP 4284A/CD 1068+CD 1320 Test Condition: at 25°,75%H

•
•
•
•
•
