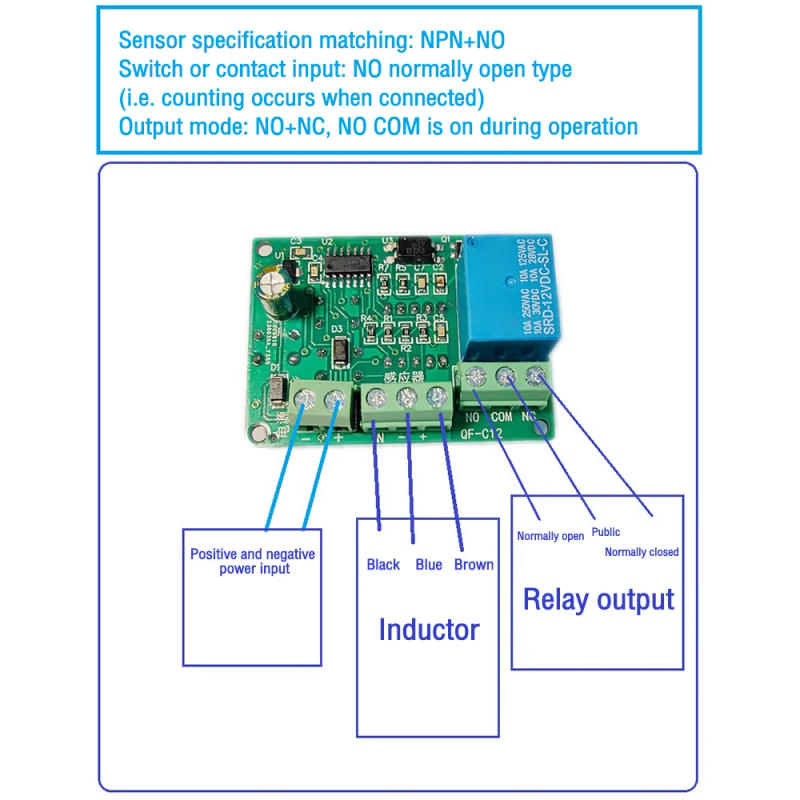

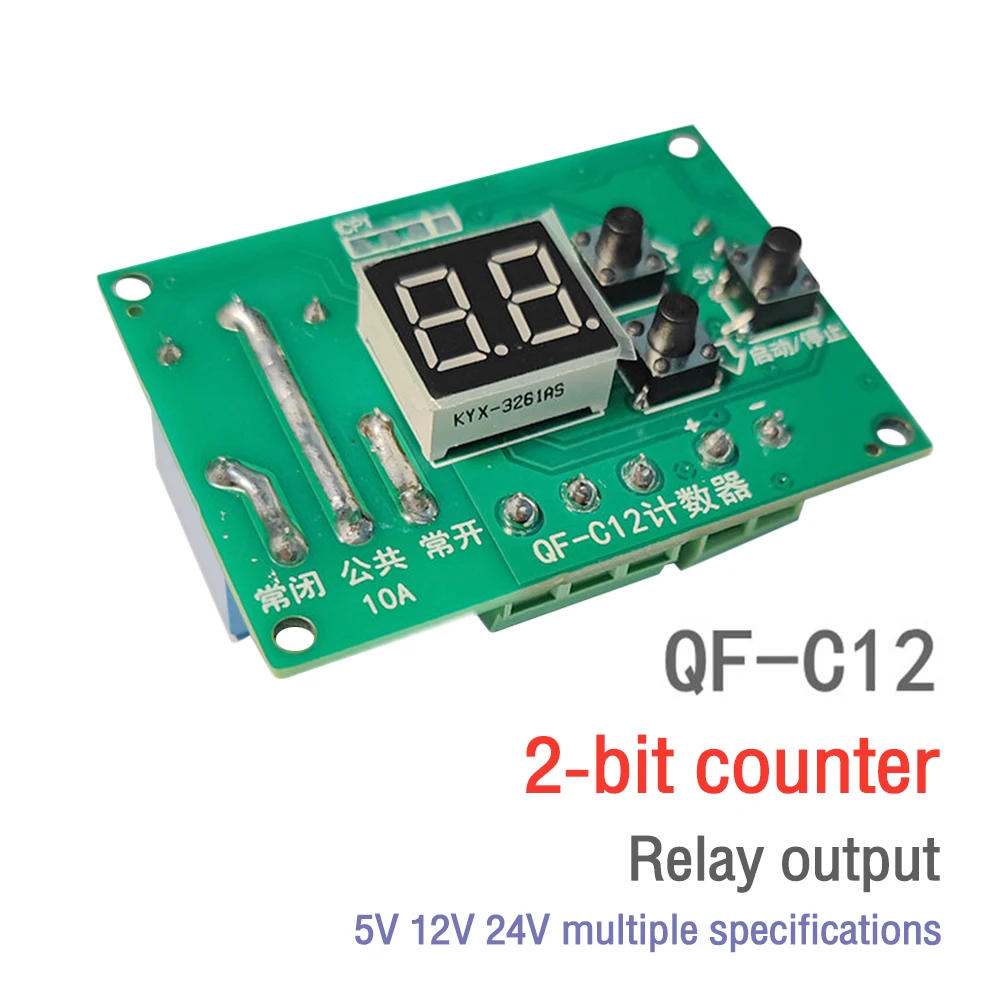

• 0 2-Digit Counter Module 5V 12V 24V Timer Relay Programmable Delay Relay Module Cycle Timer With LED Display Relay Output Features: 1 fluctuate 1-99, with memory, the last set variety of times might be known as in the subsequent power on environment 2 state circuit guarantees stable and dependable power supply three level/NPN input, high-quality at low point 4 zero 2-bit pink light digital display, handy to use five can adapt to numerous environments and temperatures in electric appliances and might paintings in environments starting from -25 ° C to+85 ° C Specifications: Name: 2 bit counter (relay output type) Voltage: Various voltages reminiscent of 5V, 12V, 24V are available Working current: 60mA (12V version), 40mA (24V version), 20mA (5V version) Signal method: Low level/NPN input, high quality at low level (connected to NPN-NO sensor or normal button switch) Response speed: 10mS Counting speed: 10 occasions in step with second Output method: 10A usually open+normally closed, isolated from the flexibility delivery facet Display: 0 inch 2-bit crimson gentle Function Description: When no longer working, use the<Up>and<Down>keys to set the count, starting from 1 to 99, --The set cost will take impact directly and be kept --With memory, the last set variety of times can be referred to as within the next power on-- Values can solely be set within the stopped state The<Start/Stop>button is used to start and stop counting Press once to begin the operation, at which point: - the relay is straight away connected; --Counting will start from zero and watch for signal enter Each signal enter can have a cost of+1- when the depend reaches the set value, the relay will disconnect During the counting process, urgent this key will input the pause state (the relay is disconnected) and won't reply to the counting In the paused state, urgent this key will enter the resume working state (relay resumes connection) and respond to the count Long press this key to revive the count to zero Sensor specification matching: NPN+NO (this product would not encompass sensors) Switch or touch input: NO usually open variety (i counting happens when connected) Output mode: NO+NC, NO COM is on during operation Package Included: 1X relay module

•
•
•
•
•
