Description

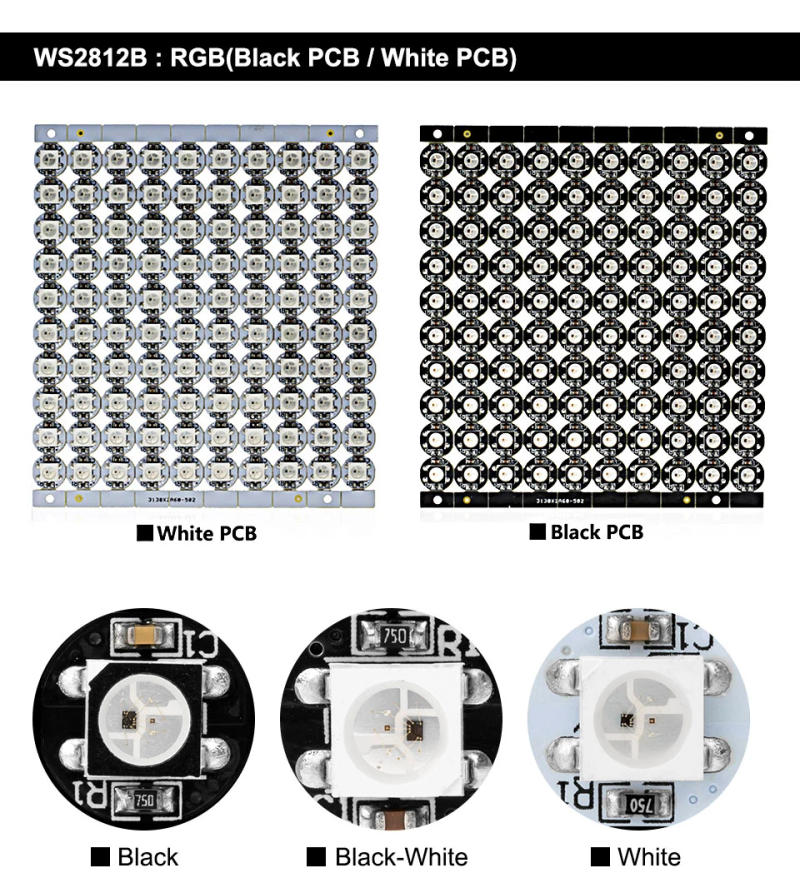

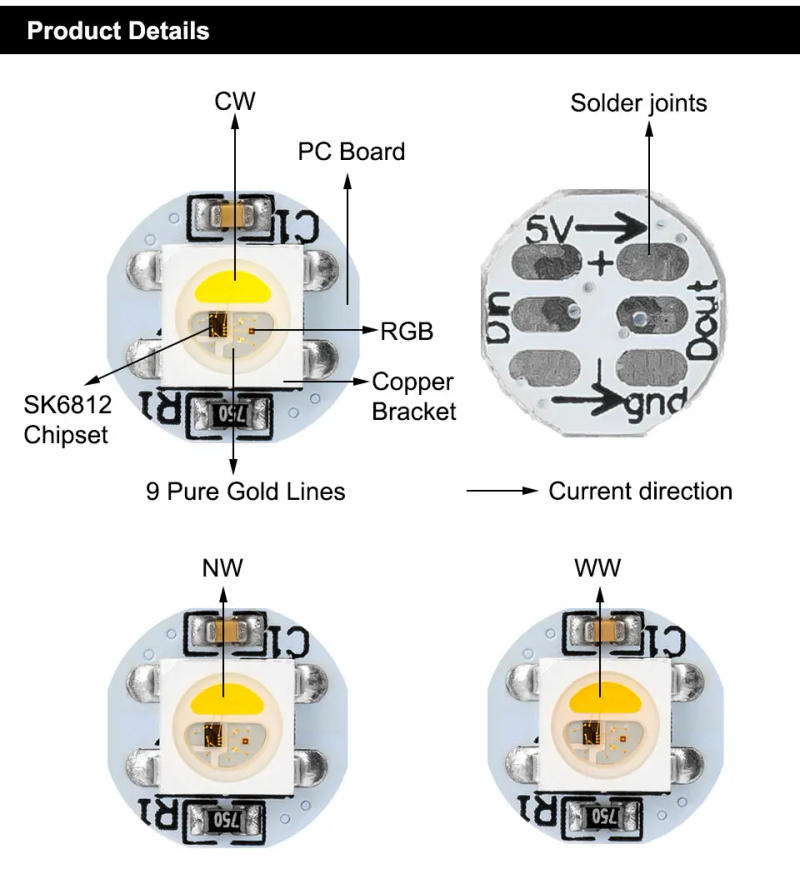

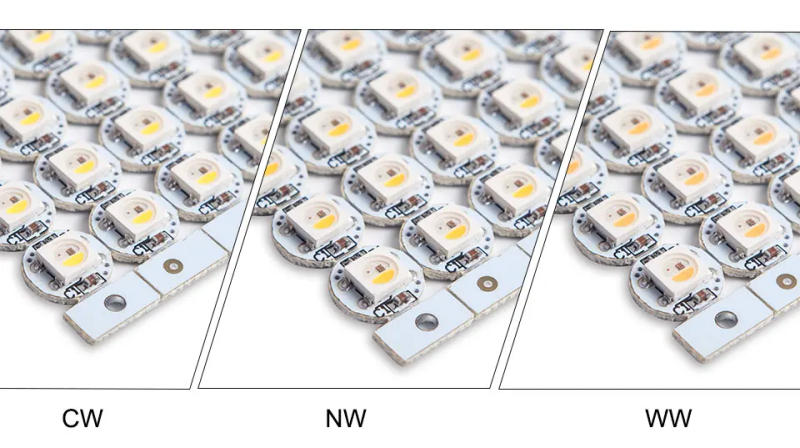

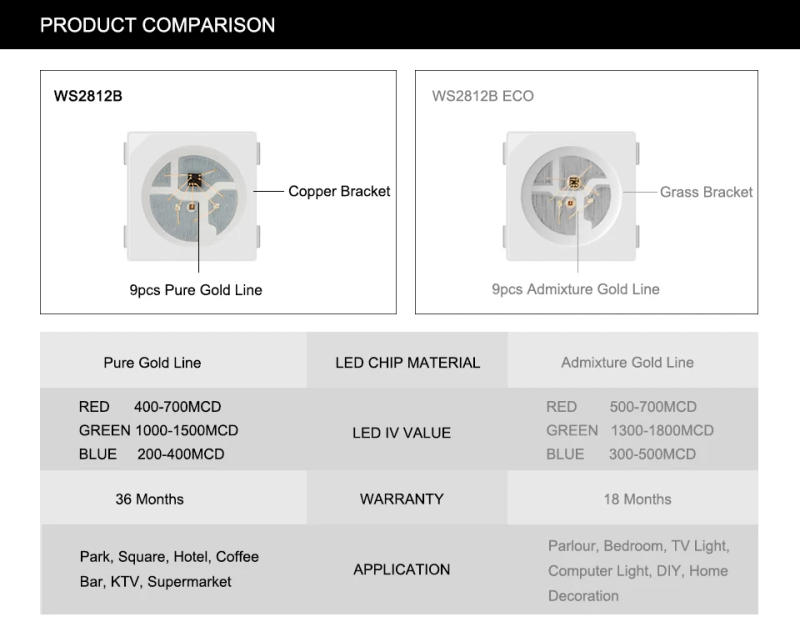

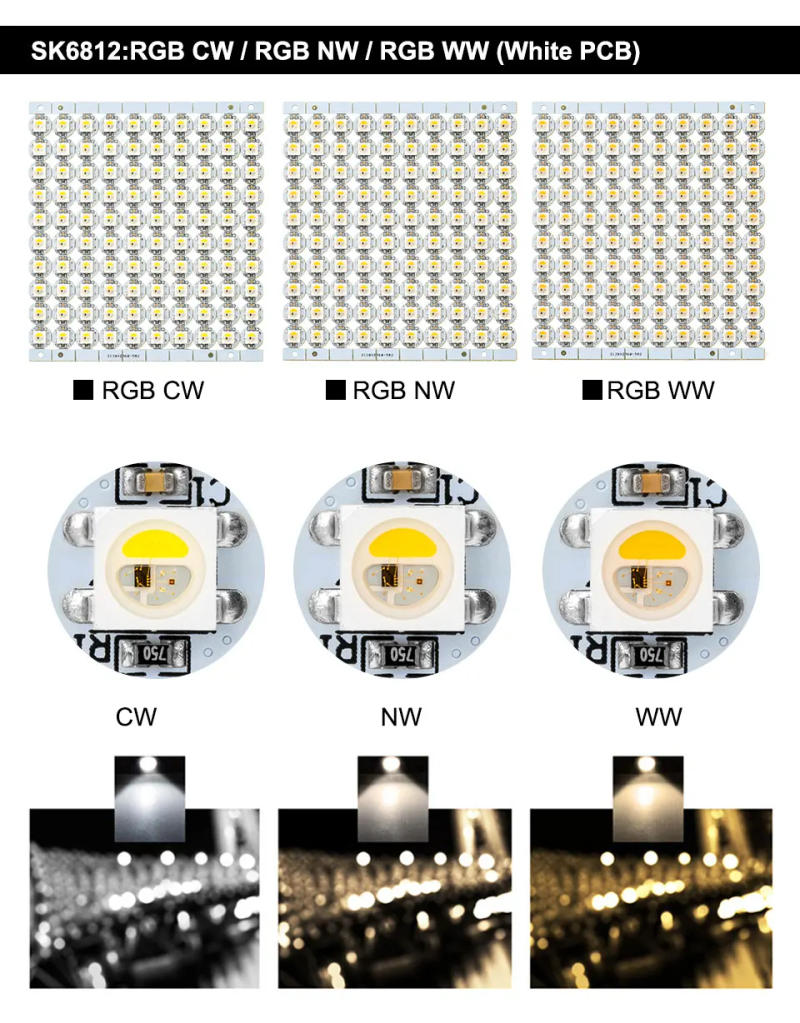

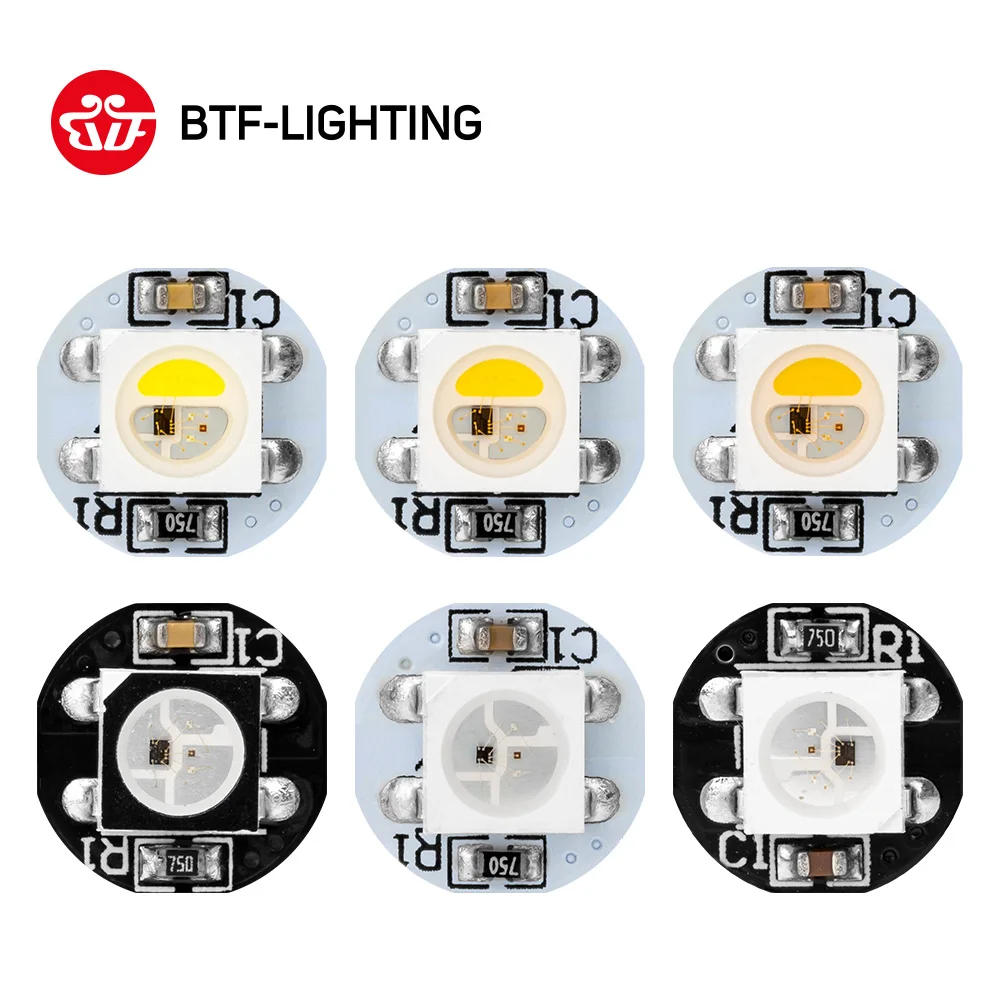

• 10 Pcs WS2812B LED Chip with Heatsink Board 10mm x 3mm WS2811 IC 5050 SMD RGB LED SK6812 RGBW RGBNW RGBWW Black White PCB DC5V Item name: SK6812 RGBW IC type: 1 IC power 1 led chip ( construct in IC ) (The default is the chips with IC integration) R: RED Wavelength: 620-630NM G: GREEN Wavelength: 515-525NM B: BLUE Wavelength: 460-470NM W: White Color RGBW = RGB + White (6000-7000k) RGBWW = RGB + Warm White (2700-3000k) RGBNW = RGB + Natural White (4000-4500k) Description: Top SMD Type zero Watt PIN configuration: NO 1, Symbol: VDD Function description: Power supply LED NO 2, Symbol: DOUT Function description: Control data sign output NO 3, Symbol: VSS Function description: Ground NO 4, Symbol: DIN Function description: Control information signal input Absolute Maximum Ratings: ( Ta=25 ℃,VSS=0V ) Power supply voltage Symbol: VDD Range: +3 - +5 Logic input voltage Symbol: V(IN) Range: -0 – VDD+0 Working temperature Symbol: Topt Range:-40 - +85 ℃ Storage temperature Symbol: Tstg Range: -50 - +150 ℃ ESD stress Symbol: V(ESD) Range: 4KV Item name: WS2812B RGB IC type: 1 IC force 1 led chip ( build in IC ) (The default is the chips with IC integration) R: RED Wavelength : 620-630NM Luminous intensity: 550-700MCD G: GREEN Wavelength : 515-530NM Luminous intensity: 1100-1400MCD B: BLUE Wavelength : 465-475NM Luminous intensity: 200-400MCD Description: Top SMD Type 0 Watt PIN configuration: NO 1, Symbol: VSS Function description: Ground NO 2, Symbol: DIN Function description: Control data signal enter NO 3, Symbol: VDD Function description: Power supply LED NO 4, Symbol: DOUT Function description: Control information sign output Absolute Maximum Ratings: ( Ta=25 ℃,VSS=0V ) Power supply voltage Symbol: V(DD) Range: +3 - +5 Input voltage Symbol: V(I) Range: -0 - VDD+0 Working temperature Symbol: Topt Range:-25 - +80 ℃ Storage temperature Symbol: Tstg Range: -40 - +105 ℃

•
•
•
•
•
