Description

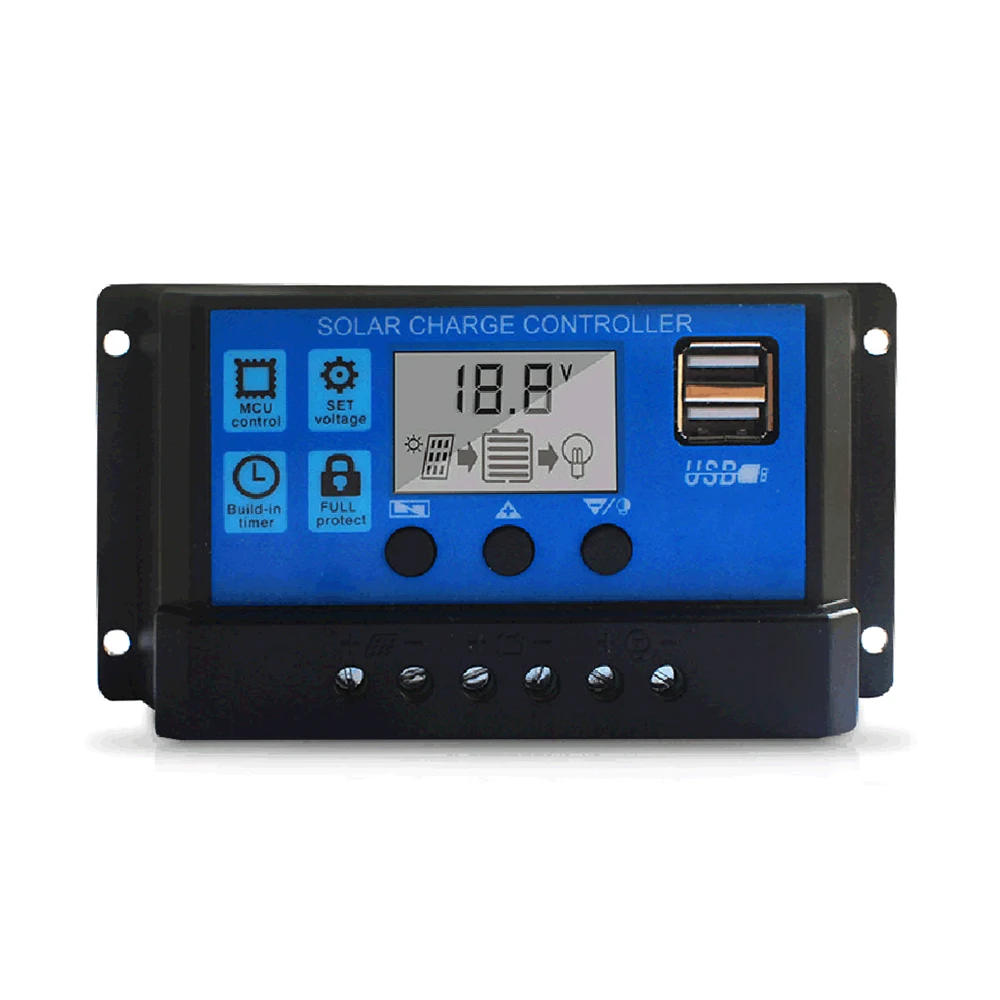

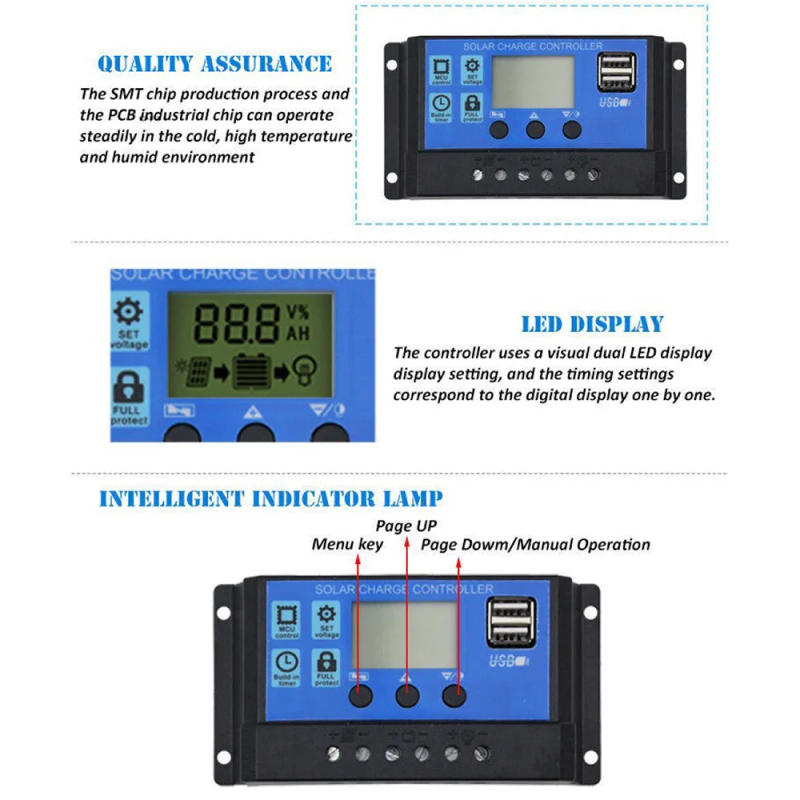

• Features: Solar fee controller comes with an enormous LCD show that will obviously indicate the status and data, it may be with ease switched modes and parameter configuration Solar panel appropriate for solar power system, photo voltaic avenue lamp, wise home, solar mild box, intelligent irrigation,camping lantern and so on The photo voltaic regulator is just appropriate for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, Liions, or other batteries Short-circuit conservation,open-circuit conservation,reverse conservation,over-load conservation, extra safty for using, appropriate for home, industrial, advertisement etc This controller can only use photovoltaic panel because the charging source, don't use DC or different strength supply as the charging source Specifications: Batt voltage: 12V/24V auto Charge current: 20A Discharge current: 20A Equalization: B01 sealed 14 B02 Gel 14 B03 flood 14 Float charge: 13(defaul,adjustable) Discharge stop: 10(defaul,adjustable) Discharge reconnect: 12(defaul,adjustable) USB output: 5V/3A Self-consume: <10mA Operating temperature: -35~+60 degree C Weight:150g Size:13*7*3 Packing List: 1X 20A Solar Charge Contorller 1X English User Manual

•
•
•
•
•
