Description

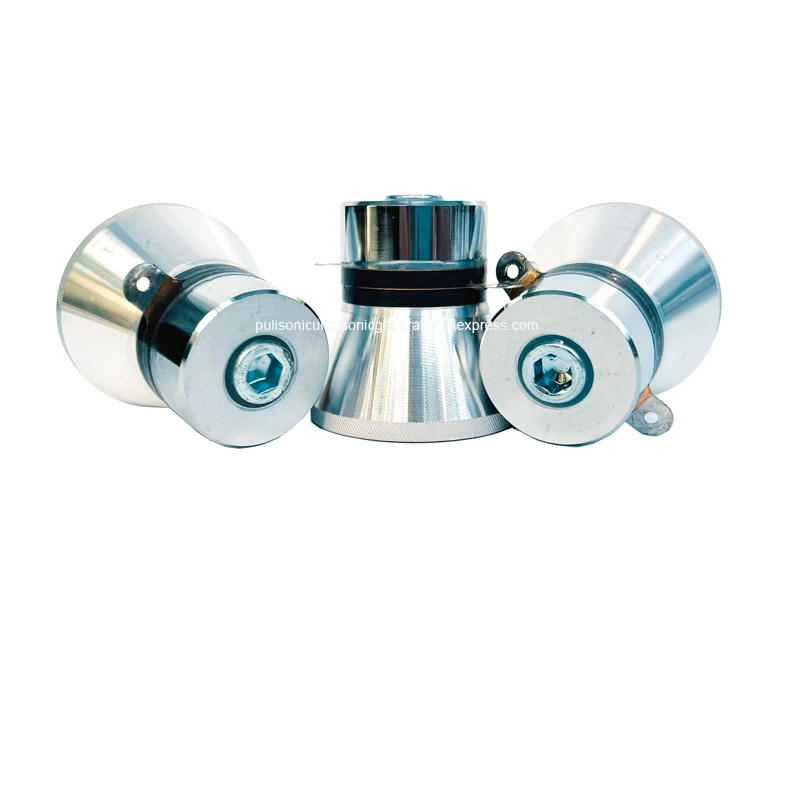

Ultrasonic Transducer for Industrial Ultrasonic Cleaner Introduction to ultrasonic transducer: Ultrasonic vibrator, also called ultrasonic vibrator, is a type of ultrasonic transducer and the core factor of ultrasonic cleaning machine Industry traditional name: ultrasonic transducer, which belongs to piezoelectric ceramic material and one of the main accessories of ultrasonic cleansing machine In terms of power, a single ultrasonic vibrator is 60W and 100W Frequency: 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 54khz, 68KHz, 80kHz, 100kHz, 120kHz, 135KHz or higher; There are differences in shape: straight column, horn, and so forth Features of ultrasonic transducer: 1 High performance: excessive mechanical Q value, high conversion performance and nice quality; 2 Ultrasonic vibrator transducer has broad amplitude and advanced performance; 3 Heat resistance of ultrasonic vibrator transducer: Piezoelectric ceramic material has nice heat resistance, can increase the temperature differ of use, at the same time, the Q value is high, the resonance impedance is small, and the heat generation is small; four The look of the ultrasonic vibrator transducer is clean, free of rust, no obvious dents and scratches The mechanism of ultrasonic cleaning transducer is to make use of the bodily results resembling cavitation, radiation stress and sound stream in the cleansing liquid It can exfoliate the machinery produced by the grime at the cleansing parts, and can additionally promote the chemical reaction between the cleansing liquid and the dirt, as a way to achieve the purpose of cleansing the thing The frequency of the ultrasonic cleaning machine could be selected by 10~500 kHz according to the size and goal of the cleansing material, generally more than 20~50 kHz With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used In the miniaturization aspect, radial vibration and flexural vibration are also followed Ultrasonic cleansing has become more and more extensively utilized in varied industries, agriculture, family equipment, electronics, automobile, rubber, printing, aircraft, food, health center and scientific study any changes in appearance or inner structure attributable to ultrasonic transducer upgrades or optimizations shall ultimately be in accordance with the particular product Keywords of ultrasonic transducer:ultrasonic cleaning transducer,ultrasonic washing transducer,ultrasonic cleaner transducer,piezoelectric ultrasonic transducer,low frequency ultrasonic transducer,ultrasonic piezo transducer,ultrasonic bathtub transducer,piezo ultrasonic transducer,dual frequency ultrasonic transducer,multi frequency ultrasonic transducer,ultrasonic sensor,ultrasonic vibrator,ultrasonic oscillator,ultrasonic converter,ultrasonic translator,ultrasonic adopter Any changes within the look or internal structure of the equipment brought on by upgrades or optimizations shall be according to the actual product Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance (Ω) Static Capacity (pF)±10% Input Power(W) PLS-QXHNQ20100 94 900 20 10-20 5200 100 PLS-QXHNQ25100 77 710 25 10-20 6600 a hundred PLS-QXHNQ28100 sixty six 624 28 10-20 6600 100 PLS-QXHNQ2560 seventy seven 530 25 10-20 5400 60 PLS-QXHNQ2860 68 470 28 10-20 3800 60 PLS-QXHNQ2850 82 425 28 10-20 4100 50 PLS-QXHNQ3360 fifty eight 420 33 10-20 3800 60 PLS-QXHNQ4060 56 310 40 10-20 5400 60 PLS-QXHNQ4050 fifty seven 300 forty 10-20 4100 50 PLS-QXHNQ5435 36 one hundred thirty five 54 10-20 3200 35 PLS-QXHNQ6860 eighty 460 sixty eight 10-20 3800 60 PLS-QXHNQ68120 sixty seven 588 sixty eight 10-20 7800 one hundred twenty PLS-QXHNQ8060 60 325 80 10-20 5400 60 PLS-QXHNQ12060 56 260 a hundred and twenty 10-20 5400 60 PLS-QXHNQ13550 fifty four 215 135 10-20 4200 50


Review
0 people rated this product
100W 28KHz Ultrasonic Transducer for Auto Parts SMT Steel Mech PCBA Circuit Board Hardware Cleaning Equipment
