Description

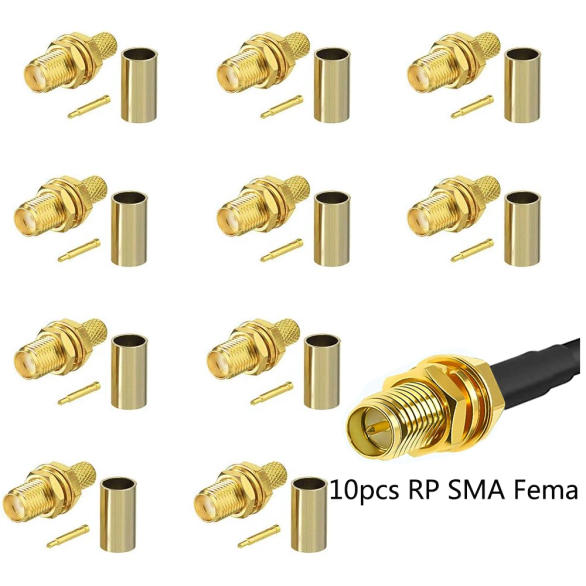

• 10pcs SMA Male Plug SMA Female RP SMA Male female Connector Crimp for RG58 U LMR195 RG142 RG400 CABLE Wire Terminal Straight ADAPTER Description: SMA connector sequence product is a broadly used small coaxial connectors with threaded connections The SMA sequence inch threaded connections, excessive strength, good shock resistance The outer conductor leads to direct contact, so that the insertion loss to a minimum status: 100% brand new type: RF connector SMA gender: male/ female/ RP plug/ RP jack style: cable mount body plating: goldplated body style: instantly mounting: crimp cable type: RG58 LMR195 Applications 1 2 3 4 check kit five digital and Analog interface 6,Non-professional radio antenna connections 50Ω Specifications Electrical Impedance 50 Ω Frequency Range 0-4 GHz with low mirrored image Voltage Rating 500 volts height Dielectric Withstanding Voltage 1,500 volts rms VSWR M39012 directly connectors: 1 max 0-4 GHz M39012 appropriate attitude connectors: 1 max 0-4 GHz MIL-C-39012 Contact Resistance Center contact: ≤3mΩ; Outer contact: ≤2mΩ MIL-C-39012 Insulation Resistance 5,000 MΩ Durability 500 Cycles APPLICABLE STANDARD IEC169-15 MIL-C-39012 Material Contact Brass,goldplated Insulator PTFE Crimp Ferrule Copper/brass Environmental Temperature Range TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C

•
•
•
•
•
