Description

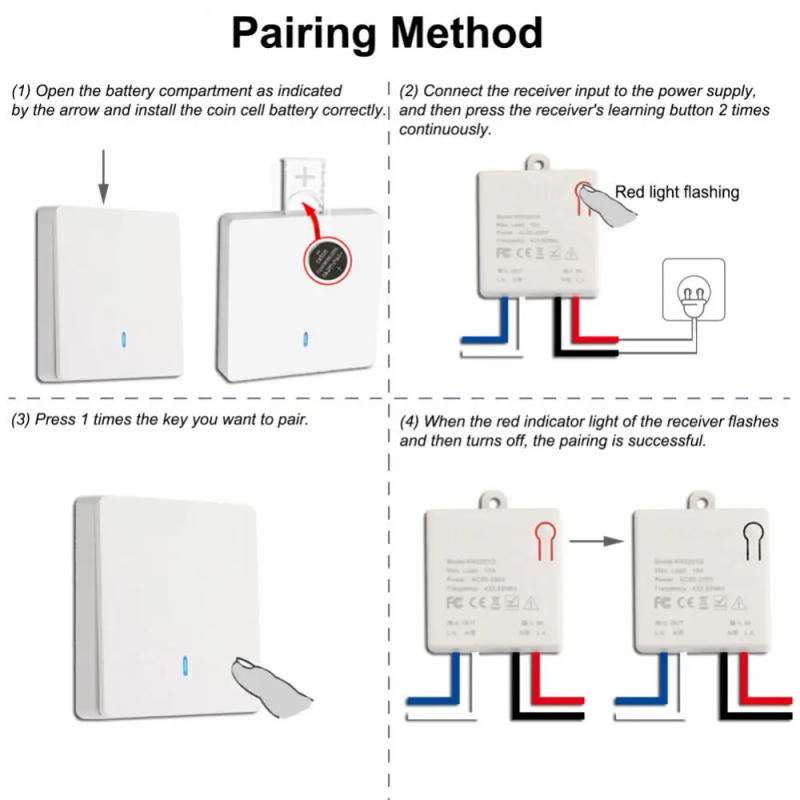

• 1/2/3 Gang Wireless Wall Switch RF 433Mhz Interruptor Light Switch Remote Control 90V-250V Receiver Led Light Lamp Fan Switch Description: Working voltage : AC 90V~250VQuiescent Current : <5MAMax current : 10AMax load : 2200WRF frequency : 433-433 temperature : -30~ 80Receiving Sensitivity : >108 dbmAmount of storage remote controls : 25 piecesSupport encoding : 1527 Leaning code,2262 fixed codeRF Operating mode : ASK superheterodyne wireless receptionReceiving differ : Open space is greater than 50 meters,Indoor partition wall 15 metersWall change size: 86 ordinary sizeSwitch battery : 1 pcs CR2032 coin mobile battery (not include)Specifications: Easy to put in RF Output of Good Stability Easy pairing（1）Open the battery compartment as indicated by way of arrow and establish the coincell battery corectly.（2）Connect the receiver input to the flexibility supply, then press the receiver's studying button 2 occasions continuously.（3）Press 1 instances the distant panel swap key you wish pair.（4）When the purple indicator gentle of the receiver flashes after which turns off, the pairing is profitable Press the educational button (on the Receiver) 8 times. The recent information may be deleted prevail Included: 1*KR2201G-4 433Mhz Receiver Module

•
•
•
•
•
