Description

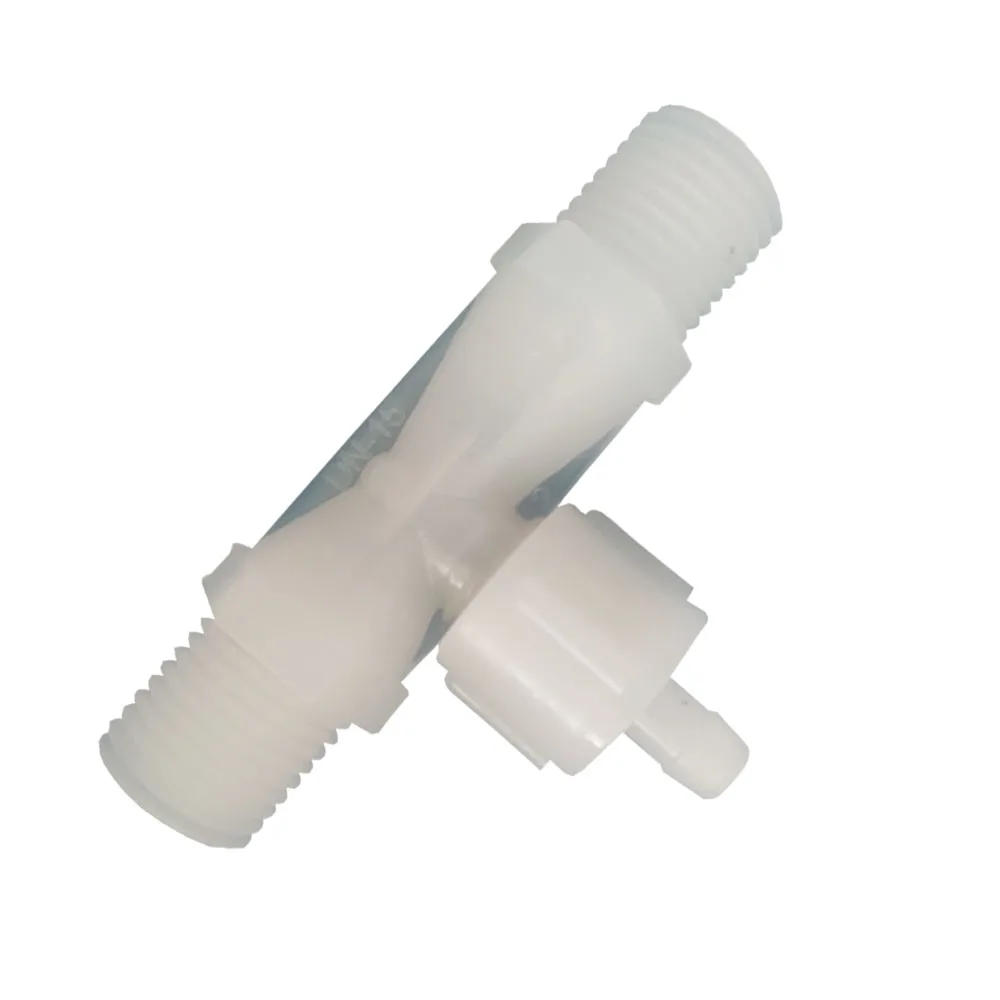

• 1/4" PVDF Venturi injector with valve for minxing fuel and liquid ozone evidence This ozone venturi is designed to be used with an ozone generator for water medication It is excellent for ozone mass transfer Molded PVDF & rugged construction make sure years of existence Ozone suction port quickly transfers ozone gasoline into water circulate under pressure Specifications 1)Water Inlet & Outlet Connection: 1/4-in BSP 2)Suction Port: 1/8-in Barb 3)Construction Material: PVDF body, 304 stainless steel ball, Kel-F seat, Hastelloy-C spring 4)Check Valve: Included - within the suction port 5)Length: 2" (57 mm) 6) Air suction capability （Nm3/hr）: 1-3 7) Water circulate （L/h）: 50-250 8) Input stress (kg/cm2): 1-2 Features 1) No transferring components 2) Durable PVDF structure 3) Completely ozone compatible 4) Check valve incorporated in injection port 5) Quick set up

•
•
•
•
