Description

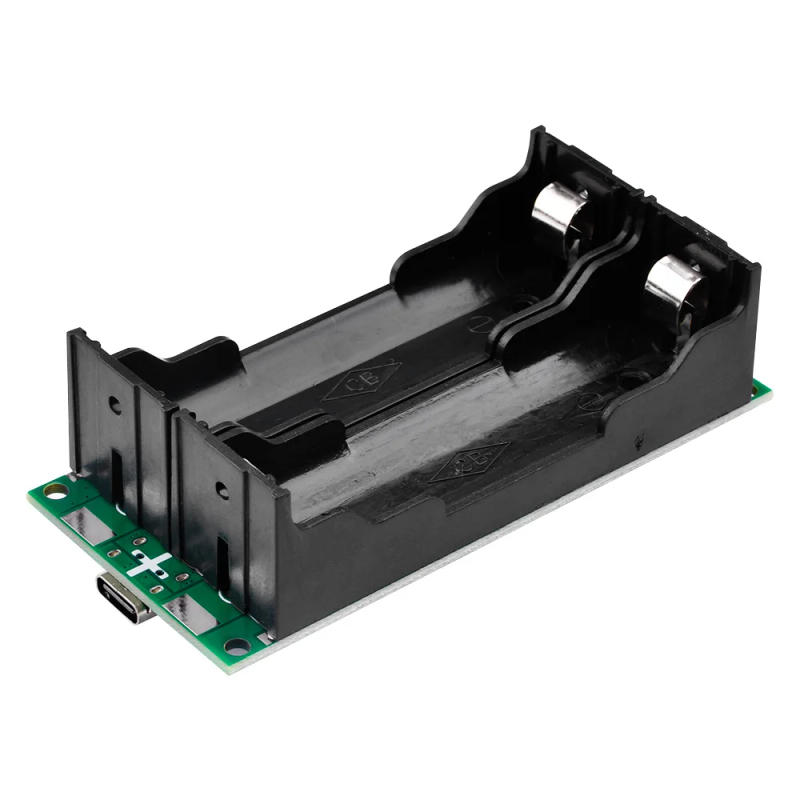

• Features: This product is acceptable for the application of power failure kit with out power failure When power is available, external power delivery is used When energy failure occurs, it will automatically and seamlessly switch to battery energy supply The Type-c interface provides energy Compared with the microUSB interface, the current that may be passed is way larger, and the utmost current can be 5A It is suitable for routers, cameras, development forums and other package It can swap the battery strength delivery seamlessly when the ability is off, and the flexibility delivery is continuing Seamless switching of exterior power delivery and battery two-way energy delivery (without delay) Uninterrupted energy supply, self-starting after strength failure, self-charging after strength call Output voltage 5V/9V/12V could be selected, Lithium battery charging, lithium battery protection, enhance output and UPS switching The two-color LED indicates the charging status, and the fairway mild is always on when it is full, and the charging will quit routinely Type-C interface, excessive recent Product parameters: Output voltage: 5V/9V/12V Current: 5A (maximum) Interface: Type-c interface Peak power: up to 20W Rated power: as much as 15W Module size: 88 * forty one * 22mm length, width and peak (back patch box) Function description: 1 UPS function: When the ability supply is powered, the power delivery directly supplies energy to the load through the enhance circuit, whereas charging the lithium battery Once the power delivery is minimize off, the battery direction is routinely started to delivery energy to the burden throughout the increase circuit 2 Booster circuit: height strength as much as 20W, rated power up to 15W, BOST boost circuit, integrated 12A high-current MOS, efficiency up to 96%, module static power intake 25mA, optionally available 5V/9V/12V output (Under typical load condition, it is suggested to be<15W Output 5V: current 3A output 9V: recent 1 output 12V: recent 1) three Lithium battery protection: over-impulse, over-discharge, over-temperature, over-current defense (if the quick circuit enters the security state after misoperation and would not output, join 5V charging to robotically turn on the restoration output) Instructions: 1 USB port and standard 5V+and 5V - are external energy delivery ports You can desire considered one of them The output interfaces are marked with USP+and UPS - The back welding battery box is hooked up with 18650 lithium battery It can also be linked to other three lithium batteries 2 When used as a UPS, it is necessary to put in the battery to ensure that the input 5V power delivery has adequate power, and the output is kept on in genuine time When the power delivery is lower off, the battery can be started at any time 3 If UPS desires to save calories consumption, weld the output indicator light after all exams are completed, which can minimize the current consumption of greater than 10 mA with out affecting the traditional output of the circuit and save energy four During operation, it is possible to set off the board to enter the safety state with out output because of varied reasons (wrong touch, mistaken connection, etc) You can join a 5V charging port to the board after the difficulty is solved, and the board could be activated and output back after it is powered on back five The 5V charging power supply utilized by particular person customers uses an output capacitor with a bigger potential price This capacitor can proceed to discharge after the ability delivery is powered off, making the flexibility supply voltage have a gradual decline process, which will cause the board to not switch the battery power supply quickly after the power supply is grew to become off If you come upon this type of situation, you could possibly connect a discharge resistor of about 1K at the 5V input port 6 If you desire to increase the battery potential of the UPS module, you should utilize the method of multi-section parallel connection, and other applications will not be affected Matters needing attention: 1 There are MOS and other components on the board, which are easy to be broken by the induction or static electrical energy of the soldering iron Please make sure that the soldering iron used is grounded (and the row grounding wire is connected), and you need to put on anti-static gloves for operation 2 When putting in the battery, be careful not to set up it backwards, in any other case the board will burn three Please choose satisfactory strength delivery Only then can the board work usually 4 The board strength delivery shouldn't be higher than 5V 5 The board is altered with out technical affirmation Our store isn't chargeable for technical assist and after-sales provider 6 It is standard for the module to generate heat when working at high power Pay attention to the fan heat Package included: 1 x 15W 3A 18650 Lithium Battery Charger Module DC-DC Step Up Booster UPS Uninterruptible Power Supply /Converter Type-C 5V 9V 12V

•
•
•
•
•
