Description

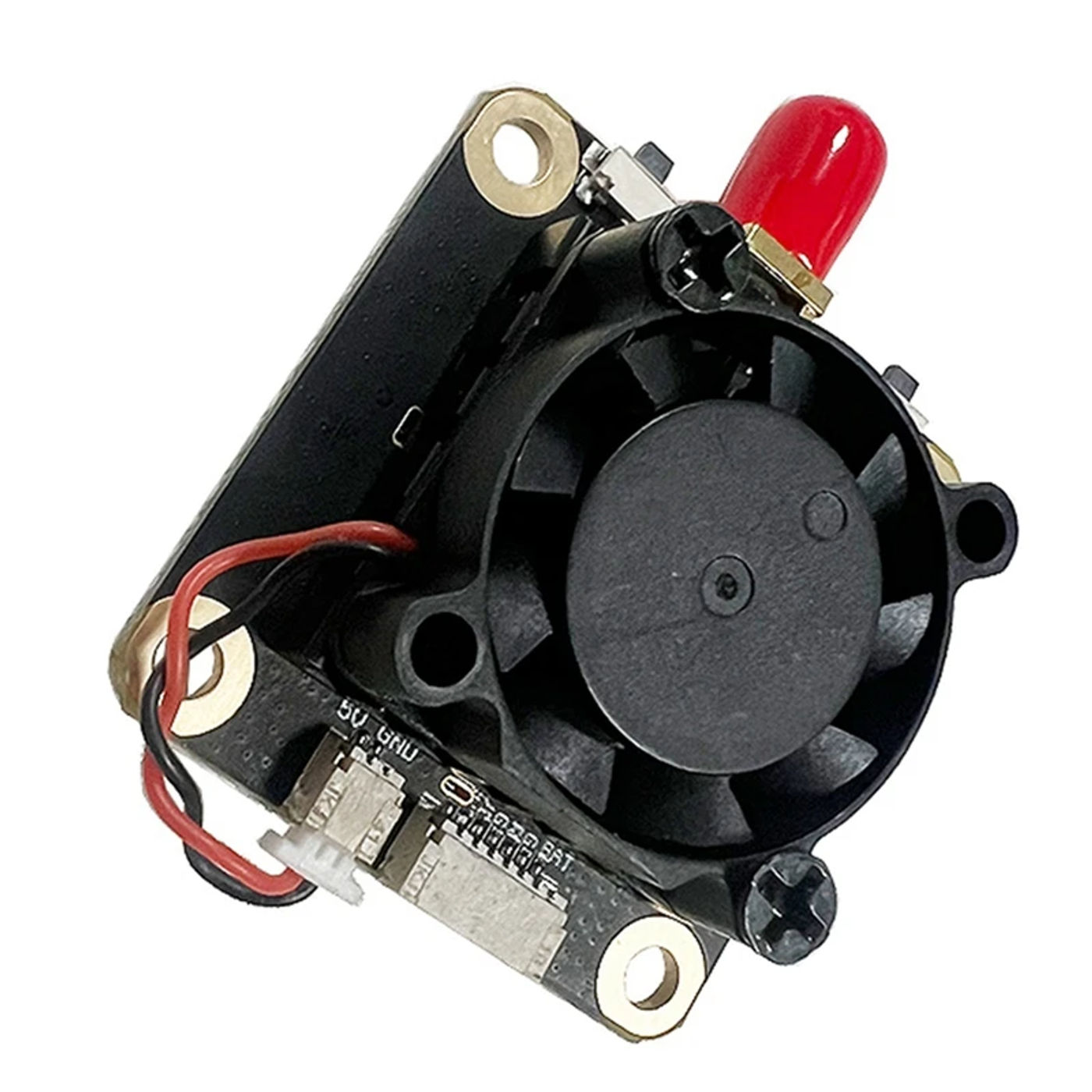

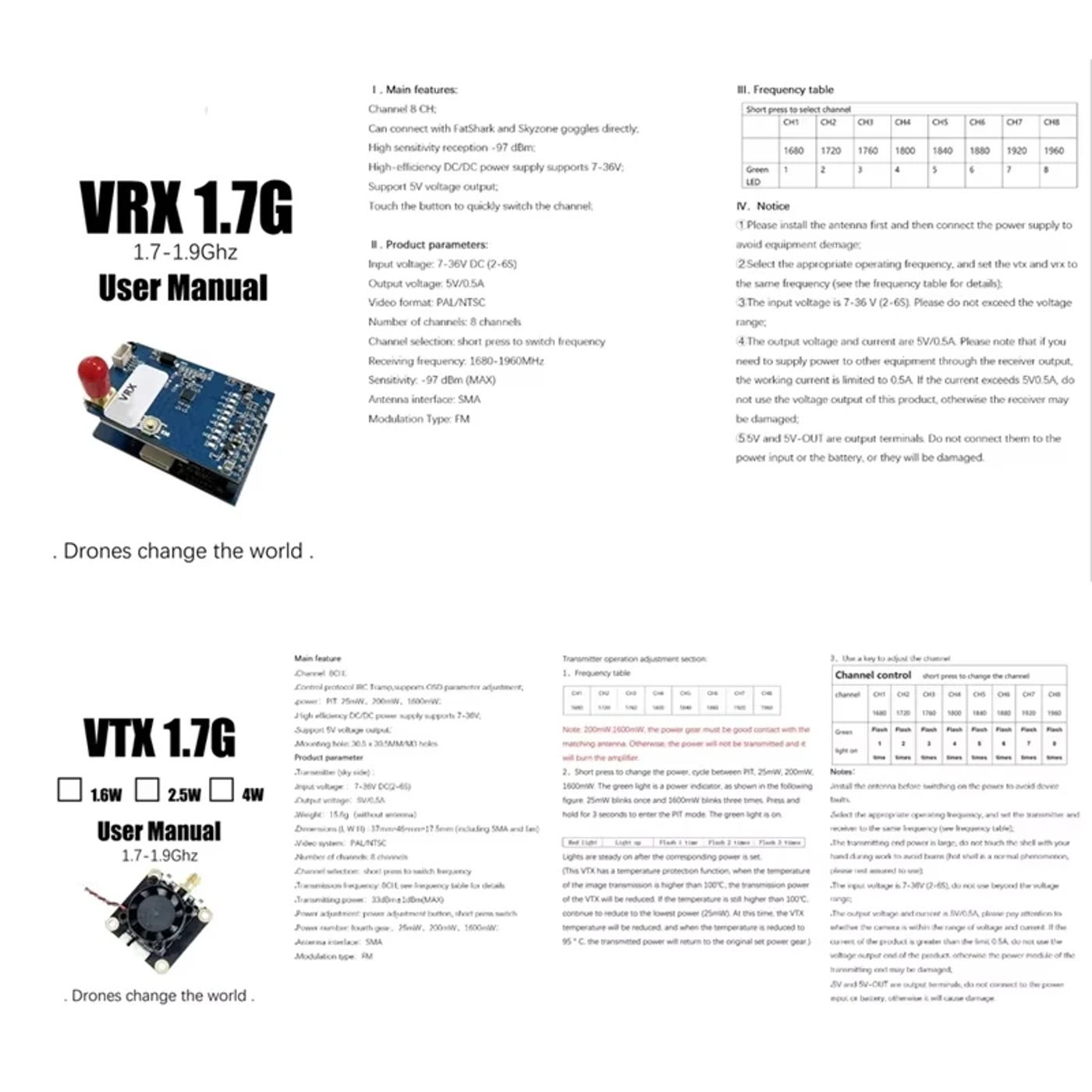

• 1 VTX 1 FPV VTX 1 1 VRX 8CH FPV analog Video Transmitter Receiver Module PAL/NTSC For Fatshark Skyzone FPV GogglesVTX feature: Channel 8CH;Control protocol IRC Tramp,supports OSD parameter adjustment;power: PIT 25mW, 200mW,1600mW;High efliciency DC/DCpower supply supports 7-36V;Support 5V voltage output;Mounting hole: 305 x 305MM/M3 holes Product parameter: Transmitter (sky side)Input voltage: 7-36V DC(2-6S) Output voltage: 5V/05A Weight: 156g (without antenna) Dimensions (L W H): 37mm x 46mm x 175mm (including SMA and fan);Video system: PAL/NTSC Number of channels: 8 channels Channel selection: short press to change frequency Transmission frequency: 8CH, see frequency desk for particulars Transmitting power: 33dBm±1dBm(MAX) Power adjustment: energy adjustment button, quick press swap Power number: fourth gear, 25mW, 200mW, 1600mW; Antenna interface: SMA Modulation type: FM VRX features: Channel 8 CH; Can connect to FatShark and Skyzone goggles directly; High sensitivity reception-97 dBm; High-efficiency DC/DC energy delivery supports 7-36V; Support 5V voltage output; Touch the button to quickly swap the channel; llProduct parameters: Input voltage: 7-36V DC(2-6S) Output voltage: 5V/05A Video format: PAL/NTSC Number of channels: 8 channels Channel selection: brief press to change frequency Receiving frequency: 1680-1960MHz Sensitivity: -97 dBm(MAX) Antenna interface: SMA Modulation Type: FM Due to diverse batches, there could also be variations in product appearance, color, and printed text, that will not impression the use Colour:random shade , don&;t accept the desired shade Material:PCB Package Contents: 1 x VTX KIT 1 x VRX KIT Only the above package content, other products will not be included Note: Light mirrored image and diverse displays may cause the color of the thing within the photo somewhat diverse from the real thing The size allowed error is +/- 1-3cm

•
•
•
•
•
