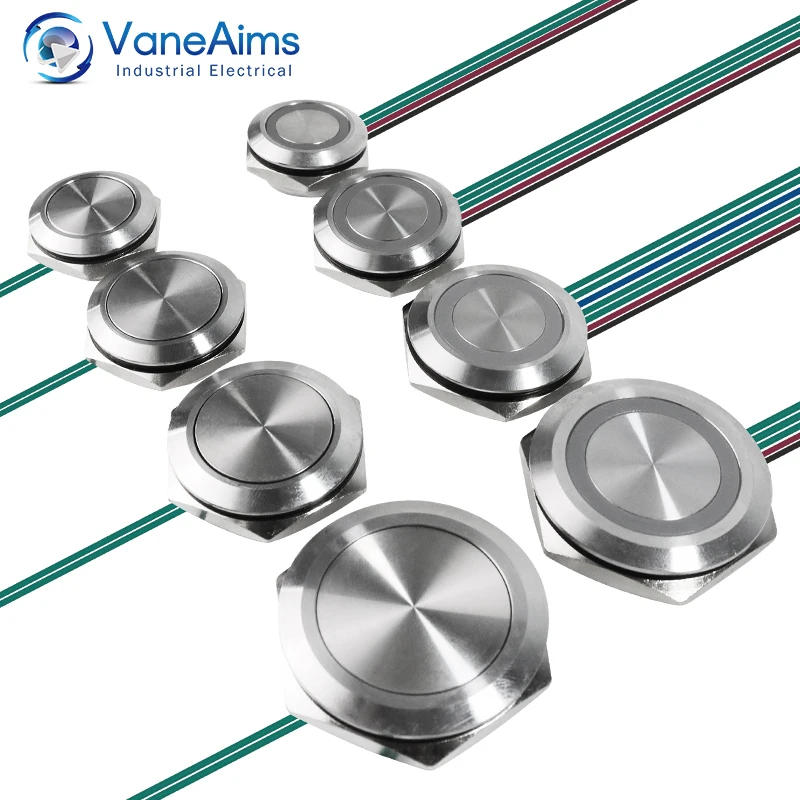

• SILVER Shell: The materials is stainless steel, which is characterised by corrosion resistance and lengthy look lifestyles BLACK Shell: The materials is Aluminum Alloy This button is a non permanent button switch(Jog switch) It suggests that the power is only applied when the button is pressed Once the hand is released, the button switch is routinely reset and the ability is off (Computer button and doorbell button all have this function) The bicolor/ tricolor button means that when the corresponding input terminal is powered on, the corresponding color will gentle up, no longer at the identical time The key stroke of the product is ultra-short, the volume is ultra-thin, and the rated current is 1A NO LED Type: 2 wires With Single LED Type: 4 wires With Bicolor LED Type: 5 wires With Tricolor LED Type: 6 wires ①② NO(normally open contact) Bicolor Light Wiring Diagram: Only one of the two dotted strains could be related Connecting diverse contacts makes the sunshine coloration different [③④---LED power supply line / ⑤---LED power delivery traditional contact] Tricolor Light Wiring Diagram: Only one of the 3 dotted lines could be linked Connecting diversified contacts makes the light colour different[③④⑤---LED energy delivery line / ⑥---LED strength supply standard contact]

•
•
•
•
•
