Description

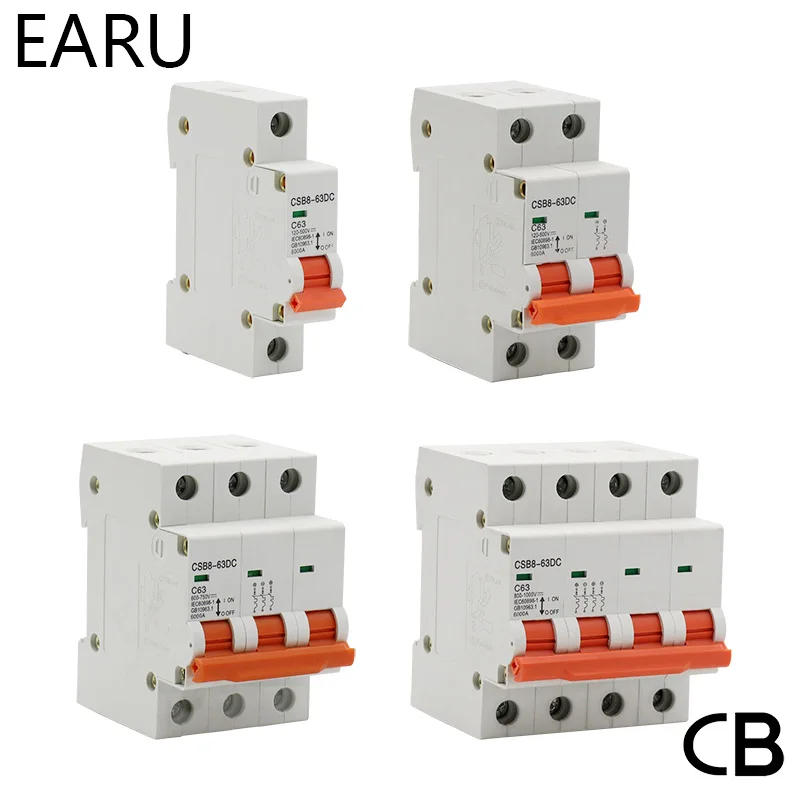

• 1P 2P 3P 4P DC 250V-1000V 10Solar Mini Circuit Breaker MCB Fuse PV System Solar Engery 3/6/10/16/20/25/32/40/50/63/80/100/125A It has protective operate as shortage as overload, and are utilized in lighting fixtures distribution method in commerce and dwelling, and protect fractional electrical motors And they also have many merits of excessive protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multi pole assembling, long life ect are chiefly tailored to the circuit of AC 50Hz, 250V in unmarried pole, 415V in double, three, four poles for safeguarding overload and brief circuit Mean while, also they are used in turning on or off the electric apparatus and lighting fixtures circuit below the conventional circumstances Standard EN60898(IEC60898) IEC60947-2 Rated latest 1-63A Rated Breaking ability 6 IEC60898(0~63A) 6,10,15kA IEC60947-2(0~63A) Characteristic curve B,C,D Max fuse that can be linked to 100AgL(>10kA) Selective grade 3 Working ambient temperature -5 ° ~+40° Enclosed protective class IP20 Electrical existence Not less than 8000 occasions Mechanical existence Not lower than 20000 times Crust grade rating latest Imm(A) Pole Rating voltage(V) Rating recent In(A) Rated limit brief circuit capacity OEM Breaking recent Icu(A) Time (ms) 63A 1 DC ~250V 1 2 three 4 five 6 10 15 16 20 25 32 40 50 63 6000 10 YES 2 DC ~500V 6000 three DC ~750V four DC ~1000V

•
•
•
•
•
