Description

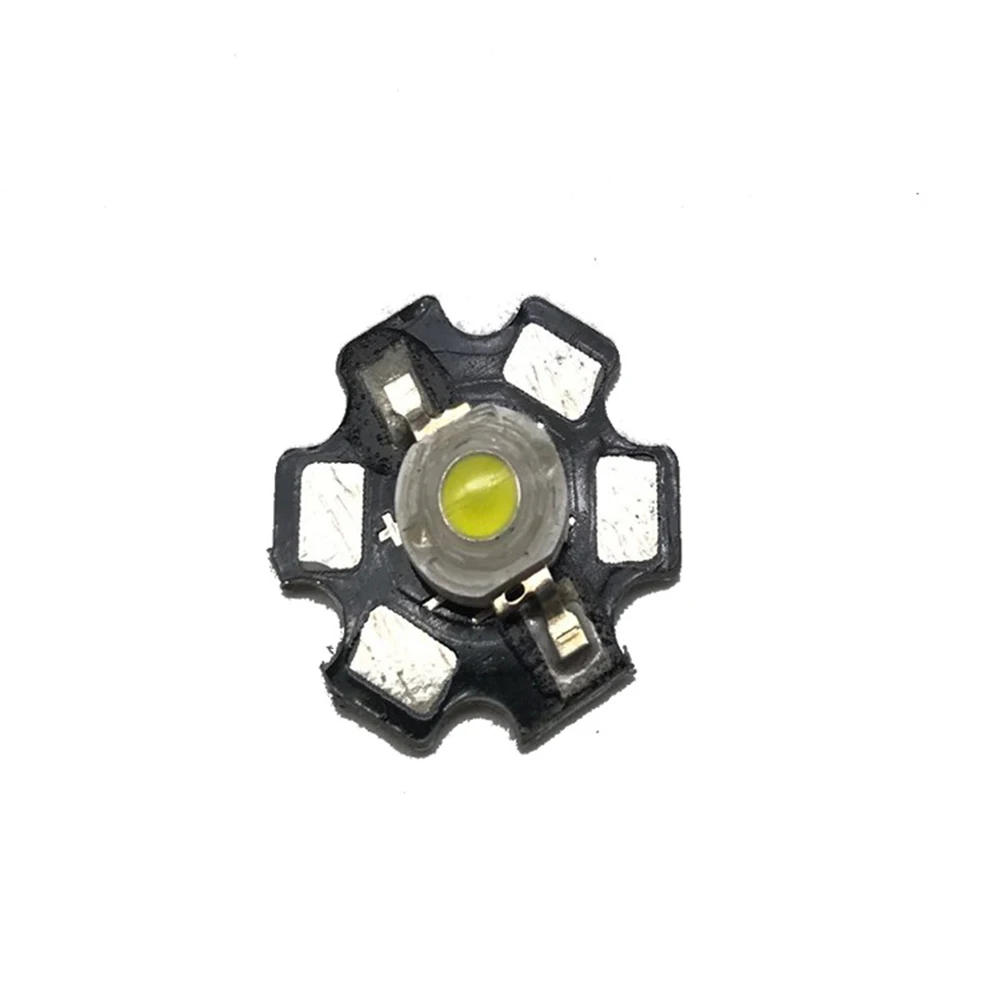

• Description: Name: Lamp Beads Thermal resistance: ≤5°(/W) Bracket material: Luminous efficiency: a hundred (lm/W) Working voltage: three (v) Light intensity/luminous flux: one hundred (lm) Dimensions: 20mm Color rendering index: 70-80 accelerated aging: 92 (%) Beam angle: 120 (°) Color tolerance: Maximum allowable junction temperature: eighty (°) Light-emitting floor size: ￠11mm (1) LED welding conditions (1) Soldering iron welding: the top temperature of the soldering iron (maximum 30W) shouldn't exceed 300℃; the soldering iron should be grounded, and the static electrical energy must never exceed the range; the soldering time shouldn't exceed 3 seconds; the soldering position should be now not less than 3 mm removed from the colloid. (2) Dip soldering: the very best temperature of dip soldering is 260℃; the dip soldering time is not any more than five seconds; the dip soldering role is a minimum of 3 mm faraway from the colloid. (2) forming formulation (1) It ought to be 2 mm far from the colloid to bend the bracket. (2) The stent forming must be done with fixtures or via professionals. (3) The assist forming must be completed before welding. (4) When forming the bracket, be sure that the pins and spacing are consistent with the circuit board. (3) LED establish ingredients (1) Pay attention to the association of the outer wires of various devices to prevent flawed polarity installation. The gadget shouldn't be too close to the heating and the operating circumstances shouldn't exceed its specified limits. (2) Be yes to not set up the LED when the pins are deformed. (3) When deciding to put in in the hole, calculate the dimensions and tolerance of the face and the outlet distance on the circuit board to avoid immoderate pressure at the bracket. (4) When installing the LED, it is strongly recommended to apply a handbook sleeve for positioning. (5) Before the soldering temperature returns to normal, the LED ought to be protected from any vibration or outside force. (4) Cleaning Special care ought to be taken when cleaning the colloid with chemicals, as a result of some chemicals can damage the outside of the colloid and trigger discoloration resembling trichloroethylene and acetone. It would be wiped and dipped in ethanol for no more than three mins at room temperature. Packing list: 1pc*Lamp Beads Note： 1 allow 0-1cm error thanks to guide measurement. Please ensure you do not intellect before you bid. 2 to the adaptation between diverse monitors, the picture will not mirror the actual colour of the item.

•
•
•
•
•
